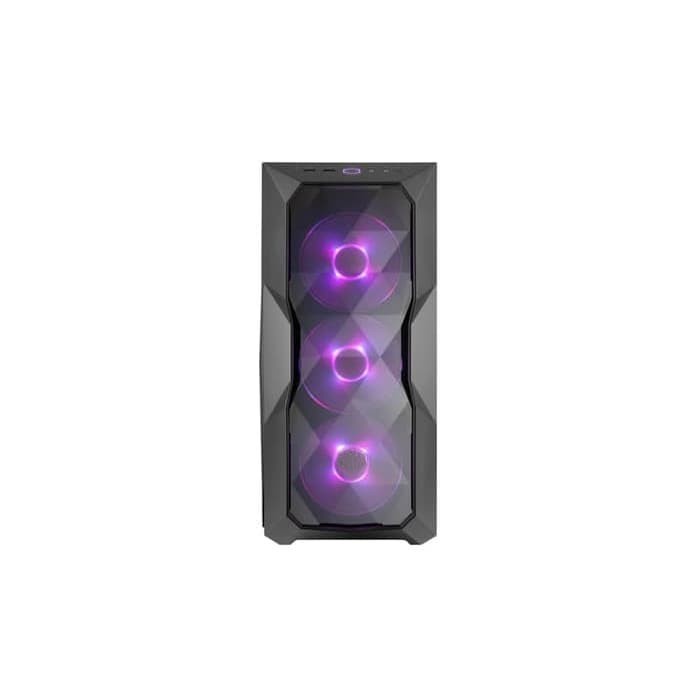

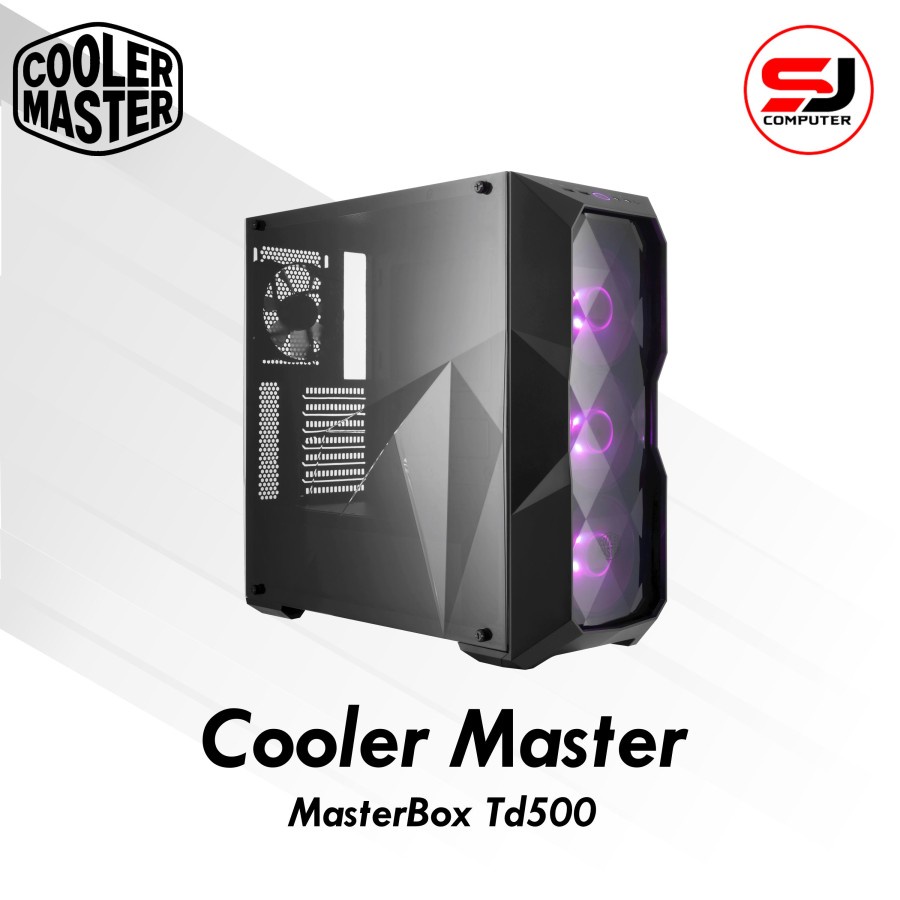

Cooler Master MasterBox TD500 RGB Black - ATX Gaming Case

Detail Cooler Master MasterBox TD500 RGB Black - ATX Gaming Case

SPECIFICATIONS
MODEL NUMBER
MCB-D500D-KGNN-S01, MCB-D500D-KGNN-S00, MCB-D500D-WGNN-S01, MCB-D500D-WGNN-S00
SERIES
MasterBox Series
SIZE
Mid Tower
AVAILABLE COLOR(S)
Black, White
MATERIALS
Steel, Plastic, Tempered Glass, Mesh
DIMENSIONS (L X W X H)
493 x 217 x 469mm (incl. Protrusions), 429.5 x 205x 447mm (excl. Protrusions)
WEIGHT
6.95 kg
MOTHERBOARD SUPPORT
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features)
EXPANSION SLOTS
7
5.25" DRIVE BAYS
N/A
2.5" / 3.5" DRIVE BAYS (COMBO)
2
2.5" DRIVE BAYS
4 (2+2 combo)
I/O PANEL
2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller (only for the S01 versions), 1x ARGB 2-to-3 splitter
PRE-INSTALLED FANS - TOP
N/A
PRE-INSTALLED FANS - FRONT
3x 120mm ARGB Fans
PRE-INSTALLED FANS - REAR
N/A
FAN SUPPORT - TOP
3x 120mm, 2x 140mm
FAN SUPPORT - FRONT
3x 120mm, 2x 140mm
FAN SUPPORT - REAR
1x 120mm
RADIATOR SUPPORT - TOP
120mm, 240mm, 360mm, (44mm max motherboard component height)
RADIATOR SUPPORT - FRONT
120mm, 140mm, 240mm, 280mm, 360mm
RADIATOR SUPPORT - REAR
120mm
CLEARANCE - CPU COOLER
165mm/6.49"
CLEARANCE - PSU
180mm/7.08", 295mm/11.61" (w/ HDD cage removed)
CLEARANCE - GFX
410mm/16.1"
CABLE ROUTING
19mm/0.74"
DUST FILTERS
Top, Bottom, Front
POWER SUPPLY SUPPORT
Bottom mount, ATX
WARRANTY
2 years
EAN CODE
4719512095522 (Mesh w/ controller), 4719512095515 (Mesh w/o controller), 4719512095546 (Mesh White w/ controller), 4719512095539 (Mesh White w/o controller)
UPC CODE
884102067822 (Mesh w/ controller), 884102067815 (Mesh w/o controller), 884102067846 (Mesh White w/ controller), 884102067839 (Mesh White w/o controller)
