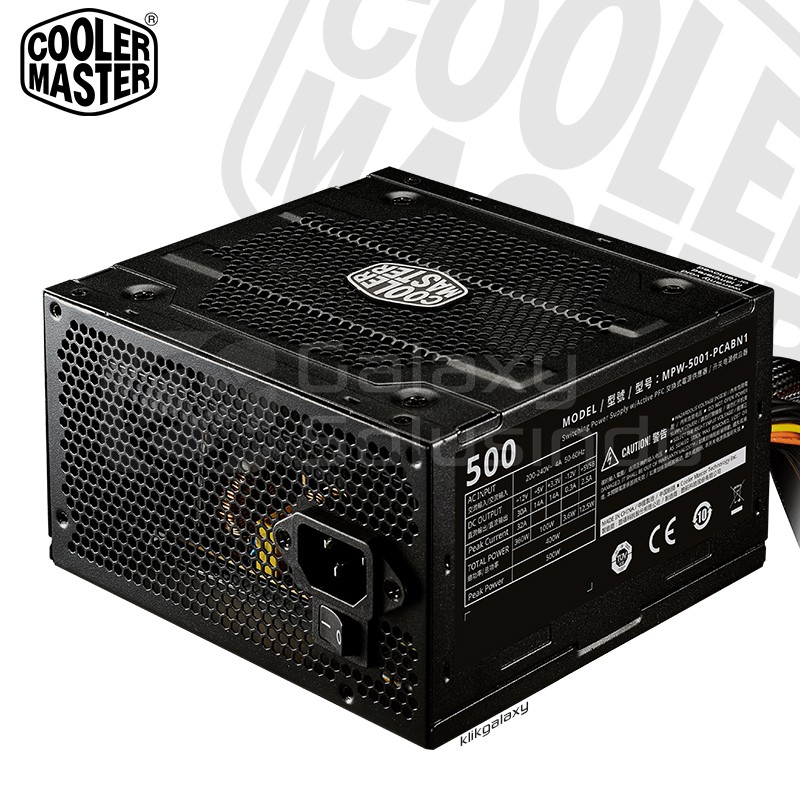

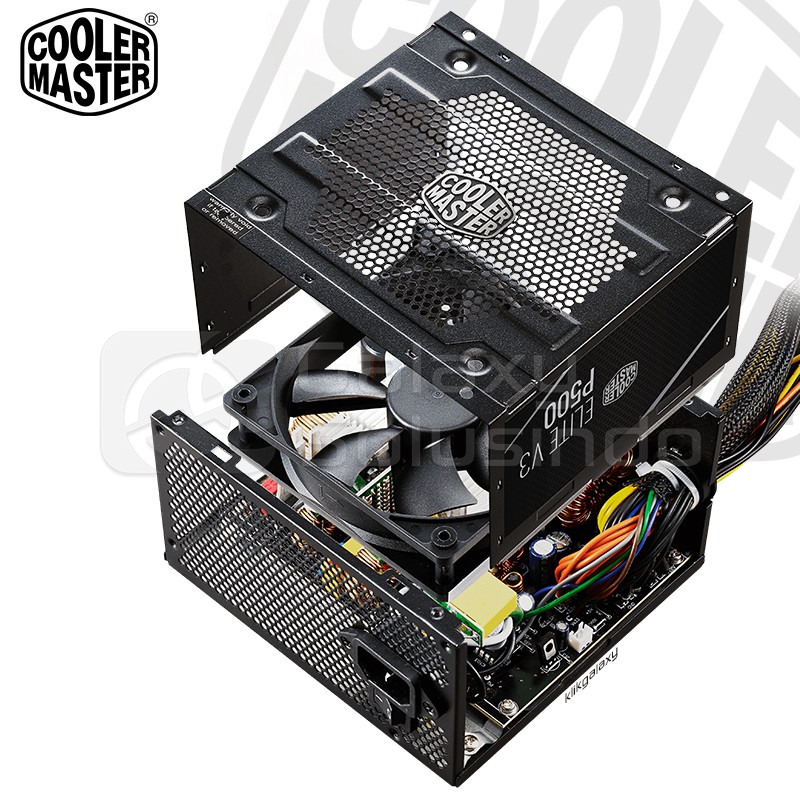

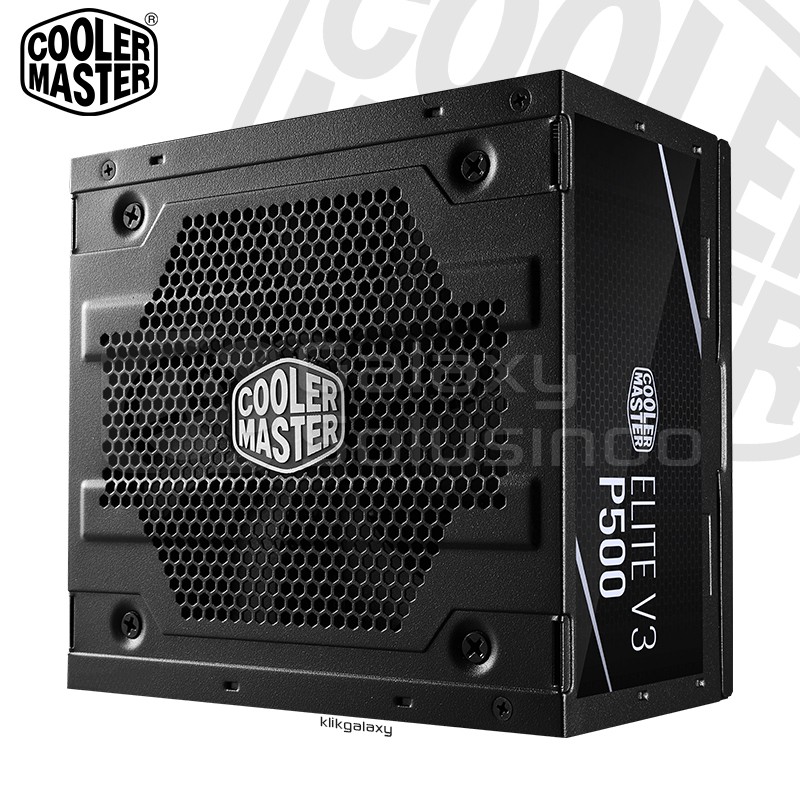

Cooler Master ELITE P500 V3 500Watt Power Supply PSU

Detail Cooler Master ELITE P500 V3 500Watt Power Supply PSU

Specification:

Model
MPW-5001-PCABN1
ATX Version
ATX 12V Ver. 2.41
PFC
Active PFC
Input Voltage
200-240Vac
Input Current
4A
Input Frequency
50-60Hz
Dimensions (L x W x H)
140 x 150 x 86 mm
Fan Size
120mm
Fan Bearing
Sleeve Bearing
Efficiency
75% @ Typical Load
80 Plus
None 80 PLUS
ErP 2014 Lot 3
Yes
Operating Temperature
40°C
Power Good Signal
100 - 500 ms
Hold Up Time
>14ms at 100% load
MTBF
>100,000 Hours
Protections
OVP, OPP, OTP, SCP, UVP
Regulatory
TUV, CE, CB
MB 24-Pin Connectors
1
EPS 4+4 Pin Connectors
1
SATA Connectors
3
Peripheral 4-Pin Connectors
2
PCI-e 6+2 Pin Connectors
1
Peak Current
32A
Peak Power
500W
Series
Elite Series
