Detail Cooler Master Casing MasterBox NR200P - Pink
Limited Size, Unlimited Options
Unrestricted Cooling Potential
Triple-slot GPU support and Included Vertical Riser Cable
Easy, Tool-free access
360 Degree Accessibility
Multiple motherboard support options
Out-of-the-box Custom Cooling Support
High quality materials
AVAILABLE COLOR(S)
- Purple/Black, Orange/Black, Cyan/White, Pink/White
MATERIALS
- Steel, Plastic, Mesh, Tempered Glass
DIMENSIONS (L X W X H)
- 376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions
VOLUME (EXLC. PROTRUSIONS)
- 18.25L
MOTHERBOARD SUPPORT
- Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H)
EXPANSION SLOTS
- 3
5.25" DRIVE BAYS
- 0
3.5" DRIVE BAYS
- 1 (Max. 2)
2.5" / 3.5" DRIVE BAYS (COMBO)
- 1
2.5" DRIVE BAYS
- 2 (Max. 3)
I/O PANEL
- 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
PRE-INSTALLED FANS - TOP
- 2x 120mm 650-1800RPM PWM (SickleFlow)
PRE-INSTALLED FANS - FRONT
- N/A
PRE-INSTALLED FANS - REAR
- N/A
PRE-INSTALLED FANS - BOTTOM
- N/A
FAN SUPPORT - TOP
- 2x 120mm
FAN SUPPORT - REAR
- N/A
FAN SUPPORT - BOTTOM
- 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
FAN SUPPORT - SIDE
- 2x 120/140mm
RADIATOR SUPPORT - TOP
- N/A
RADIATOR SUPPORT - REAR
-N/A
RADIATOR SUPPORT - BOTTOM
- 120mm, 240mm, (recommended for custom loops only)
RADIATOR SUPPORT - SIDE
- 120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)
CLEARANCE - CPU COOLER
- 76mm (GPU in vertical position), 153mm (tempered glass side panel), 155mm (vented steel side panel)
CLEARANCE - PSU
- 130mm
CLEARANCE - GFX
- L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)
DUST FILTERS
- Top, Bottom, Left side, Right side
POWER SUPPLY SUPPORT
- SFX, SFX-L
WARRANTY
- 2 years
WEIGHT
- 5.93 kg
ACCESSORIES
- 1x PCIe 3.0 x16 riser cable
NOTE
- Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position
SERIES
- MasterBox Series
SIZE
- Mini ITX
Gambar produk

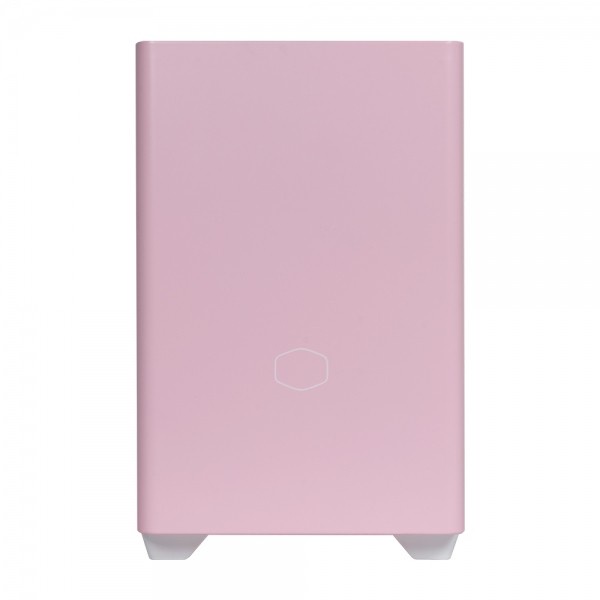

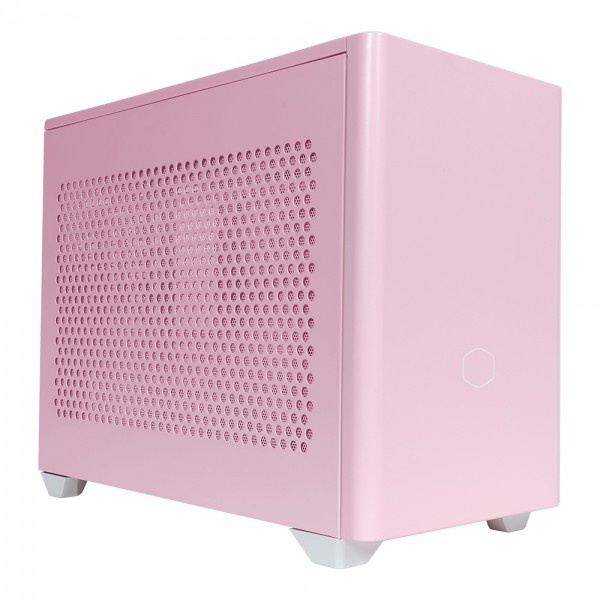

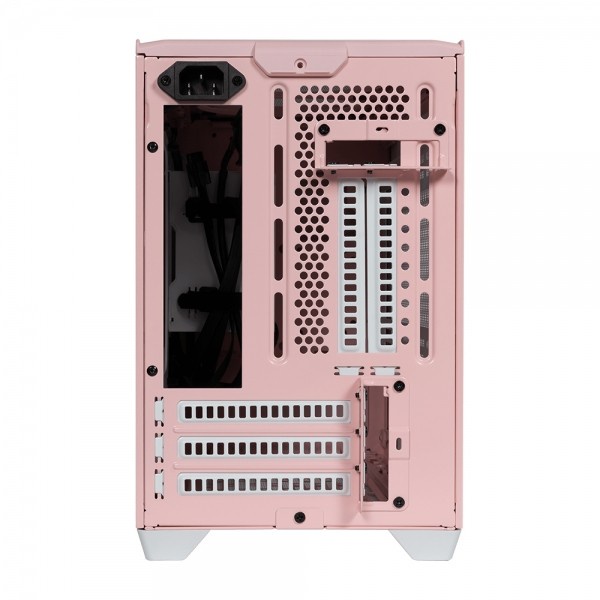

Cooler Master Casing MasterBox NR200P - Pink
