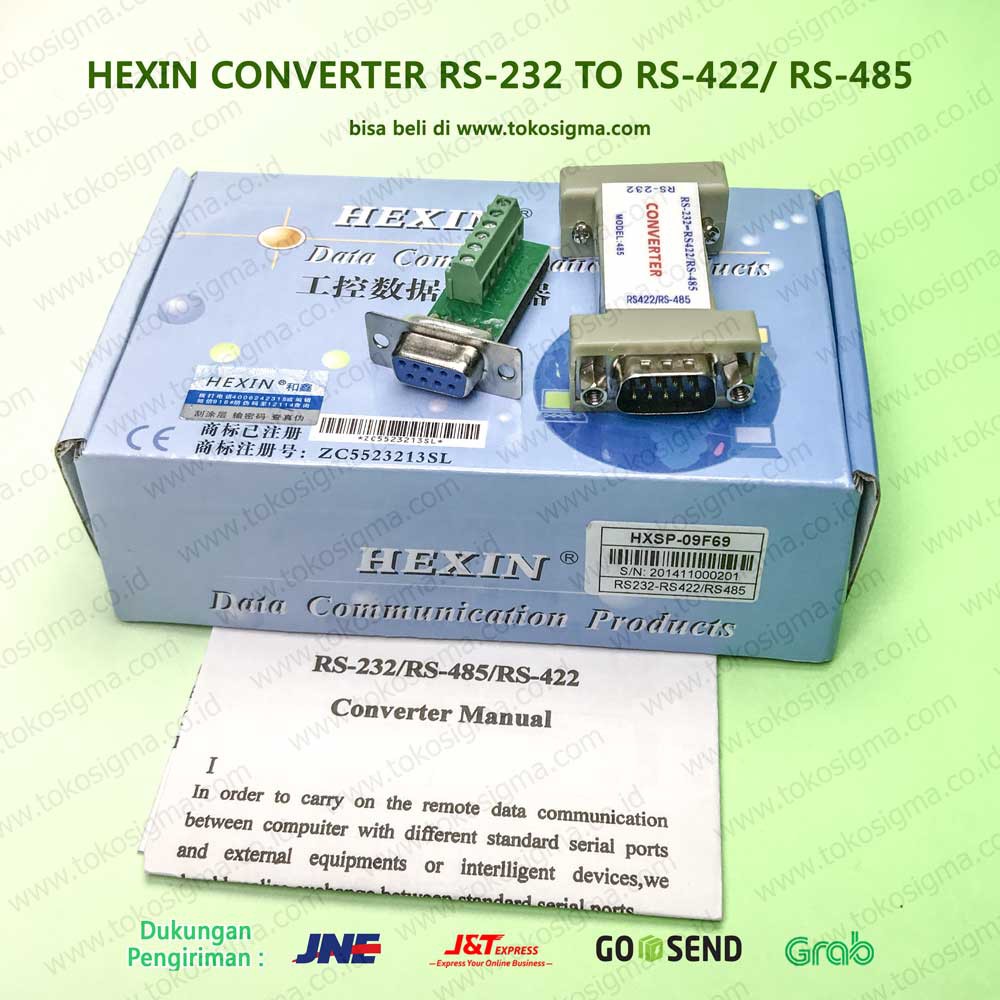

HXSP-09F69 series converter is bi-directional connector converter between RS-232 and RS-422 / RS-485;
it is mainly used for communication between main controller machines, main controller machine and SCMs or Peripherals, point to point and point to points remote communicate network,
it achieve request-response communication between multi-machines, it is mainly used for the field of electricity, industrial automatic control, IC card billing system; such as one card solution, access control system, parking system, and so on.

HXSP-09F69 series converters change the TXD and RXD signals of RS-232 serial port to 2 wire half duplex RS-422 / RS-485 signal.

No need to get through the power, it can get the electricity from the 3rd pin of RS-232 interface , at the same time, there is a request sending by 7th pin(RTS), 4th pin data terminal prepares(DTR) to help power supplying HXSP-09F69.
The automatically process control make you need not reset and make a easy application of the hardware and software installation.


Specification

1. Standard: Accord EIA RS-232, RS-422 / RS-485 standard.
2. Connector:
DB9 female on RS-232 side,
DB9 male with 6 pin terminal block on RS-422 / RS-485 side.
3. Work methods: asynchronous, point to point or multi-point, 2 wire half-duplex.
4. Transmission medium: Ordinary Line , twisted pair cable or Shielded Wire
5. Baud rate: 300~115000bps.
6. Transmission distance: 5 meters (RS-232 side) and 1200 meters (RS-485 side).
7. Communication protocol: Transparent.
8. Environment: -10 to 85 working temperature, 5% to 95% relative humidity.
9. Signals: RS-232 TXD, RXD,GND ; RS-485 Date+, Date-,GND .

iSi paket :

1 PCS HEXIN RS232 TO RS422 / RS485 With Terminal Block 6 pin
1 PCS MANUAL SHEET
