Converter hdtv to mini sdi audio adapter box NB 1080p 60hz Full HD 8 channel 48Khz 3g sd hd

Detail Converter hdtv to mini sdi audio adapter box NB 1080p 60hz Full HD 8 channel 48Khz 3g sd hd

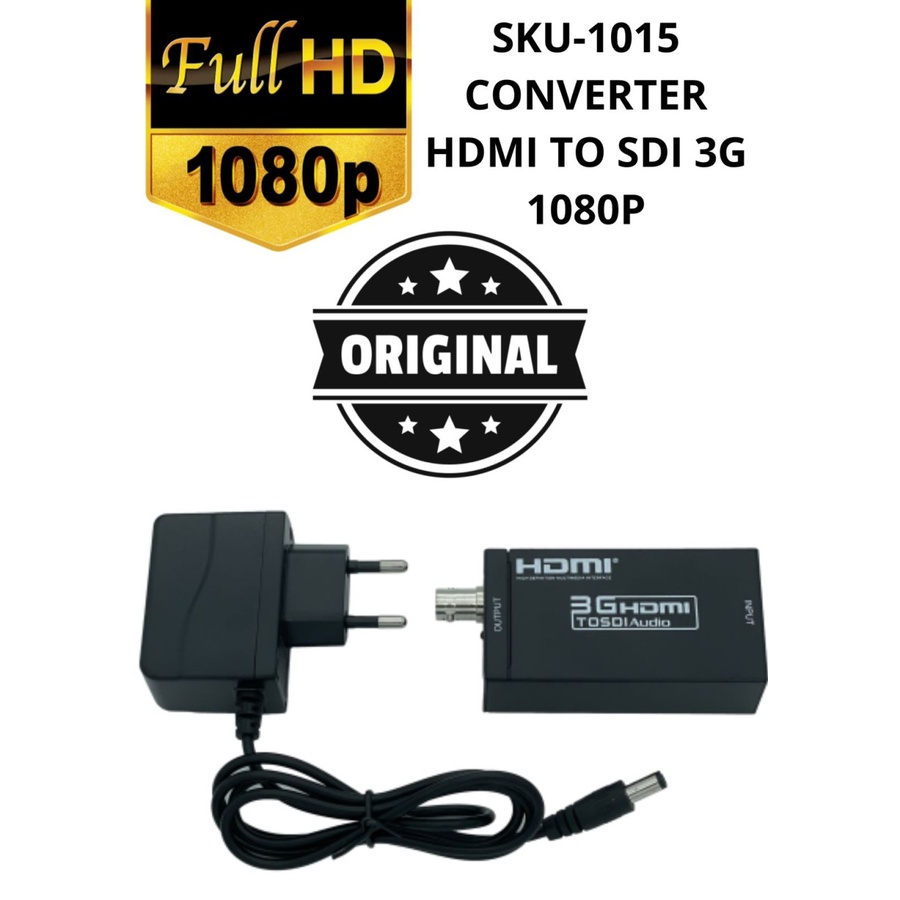

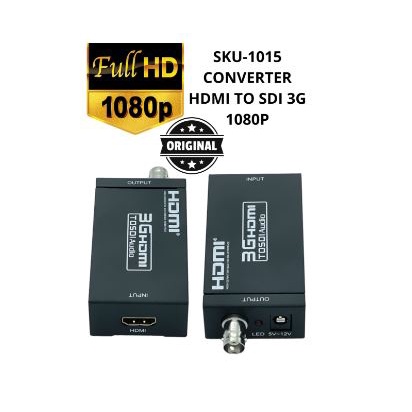

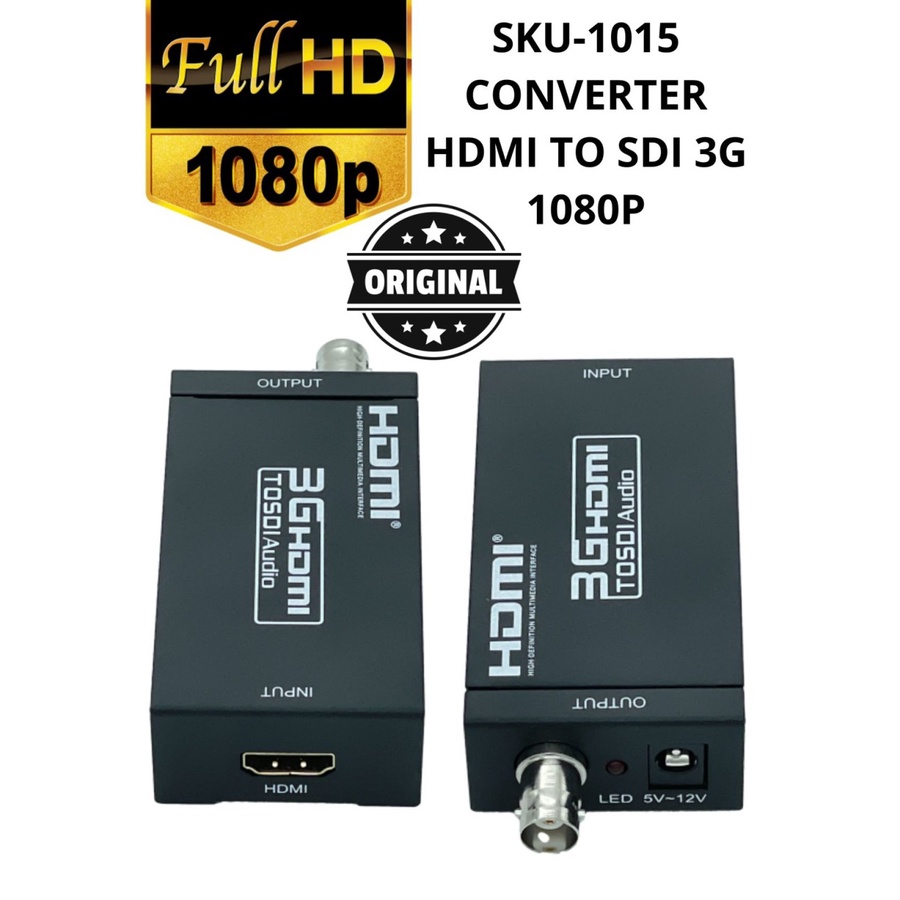

HDMI TO SDI 3G Converter FULL HD 1080P

3G / HDMI to SDI CONVERTER
Convert your Devide HDMI format to SDI signal Full HD

Features:
Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI
Plug and play
LED Indicator light

Specifications:
Signal Inputs:
SDI Format ( HD-SDI, SD-SDI and 3G-SDI )
SDI date rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s
Impedance : 75 ohm
HDMI input resolution :
-SD HD720P@24HZ, 720P@25HZ, 720P@30HZ, 720P@50HZ, 720P@60HZ,
-HD 1080i@50HZ; 1080i@60HZ;
-HD 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ,1080P@60HZ
-Recommended resolutions: 720P@50Hz/60Hz or 1080P@50Hz/60Hz
Output Video: SDI Signal
This Converter does not support audio Output
Operating Temperature: 0 - 59 C

HDMI Output Resolution:
- 720P/50Hz 720P/60Hz Hz Hz 1080PHZ
Operating Humidity: 10% to 85% RH (no condensation)
Power Supply : DC Adapter
Power consumption (Max) : 5W
Weight : 200 g
Dimension : 85 x 63 x 27 mm

How to Work ?
HDMI LOCK LED lights when it detect HDMI signal, please adjust the resolution of HDMI output into correct one.

Support Resolutions as below :
pppPackage content :
1x HDMI to SDI Converter
1x Power Adapter DC 5V
1x User Manual

Ready Stock !
