Converter HDMI to DVI with Audio Extractor

Detail Converter HDMI to DVI with Audio Extractor

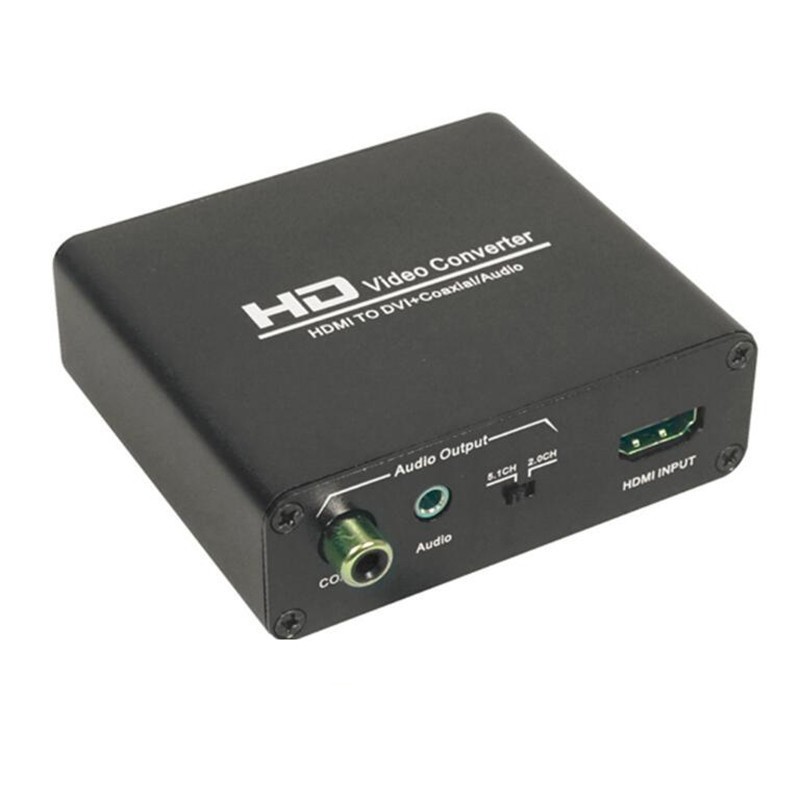

HDMI to DVI+Audio Extractor Converter
》Description
• The HDMI to DVI + Audio Converter is a high-definition video converter which convert HDMI digital signal to DVI-D digital signal and analog audio or digital audio signal.
• HDMI signals connection PS3, XBOX 360, Blu-ray DVD, HD set-top boxes, CRT / LED Display etc.
• You can easy to watch HD Video on the normal TV which without HDMI interface.

》Features:
- No need to install drivers, plug and play
- The HDMI is compliant with HDMI 1.3
- High bandwidth capability support 1920x1080 @60Hz

The HDMI to DVI converter is a high definition video converter which converts HDMI digital signal to DVI D digital signal and (analog or digital) audio signal. When HDMI signals from PS3, XBOX360, Blu ray DVD, HD set top boxes, CRT LED Display etc, you can easily watch HD Video on the normal TV which has no HDMI Interface.
Features:
The HDMI is compliant with HDMI 1.3
High bandwidth capability support 1920x1080 60Hz
No need to install drivers, portable, flexible, plug and play
Specification:
Model: NK X5
Input ports: 1xHDMI
Output ports: 1xDVI D, 1xCoaxial, 1x3.5mm Jack
Input Output Resolution: 640x480 60 72 75 85Hz, 800x600 60 72 75 85Hz,1024x768 60 70 75 85Hz, 1152x864 75Hz,1280x720 60Hz,1280x768 60Hz,1280x800 60Hz, 1280x960 60Hz,1280x1024 60Hz,1360x768 60Hz,1440x1050 60Hz, 1440x900 60Hz,1680x1050 60Hz,1600x1200 60Hz,1920x1080 60Hz
Operation Controls and Fucntions:
5.1CH 2.0CH audio Switcher: digital 5.1 output and stereo output switcher.
Power LED: This red LED illuminate when the device is connected with power supply.
Coaxial Connector:Digital audio output port, which can be connected to the digital audio amplifier.
DVI D OUTPUT Connector: This slot is where you connect the monitor with DVI cable for input source display.
DC 5V INPUT Connector: Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet.
3.5mm phone Connector:Analog audio output port, which can be connected to the headphone or analog audio amplifier.
HDMI INPUT Connector: This slot is where you connect the HDMI Port source output from DVD, PS3,Set top Box and Note Book.
Package Included:
1 x HDMI to DVI Converter
1 x 5V 1A Power Adapter
1 x User Manual
