Converter Cable HDMI to VGA + Audio / Konverter / Adapter / Kabel #51

Detail Converter Cable HDMI to VGA + Audio / Konverter / Adapter / Kabel #51

PENTING : Semua Hub Type C yang bisa mengeluarkan display (HDMI, VGA, DVI-D), device dan colokan yang digunakan HARUS compatible dengan USB 3.1 Gen 2 dan atau THUNDERBOLT. Produk TIDAK BISA DI RETUR dalam hal dimana Device anda tidak sesuai dengan requirement ini. (LIHAT FOTO PRODUK UNTUK LEBIH JELASNYA)

Description of Product


The HDMI converter box can convert one input HDMI signal into a VGA analog video signal and one analog audio output. The HDMI input port can be connected to any standard HDMI signal source device ( such as the DVD player, Ps3, S Xbox360, STB, PC), The VGA output port can be connect to display device(TV/Monitor/Projector).

The 3.5mm jack/AUDIO port can output Stereo audio to a av surround amplifier.

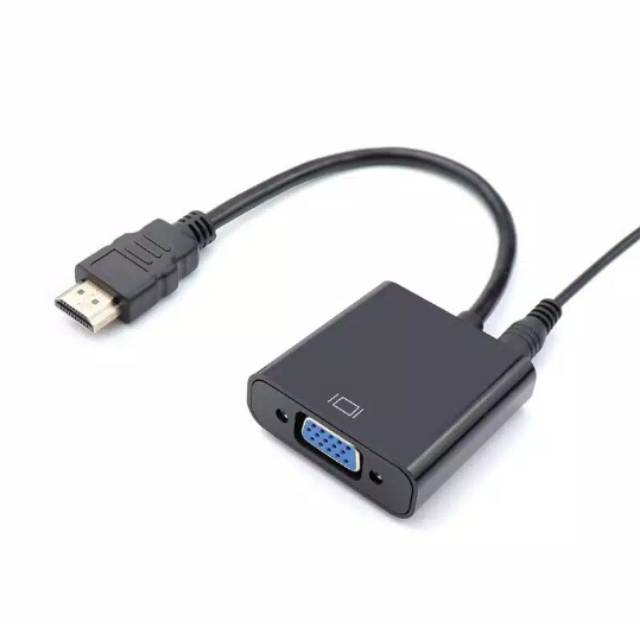

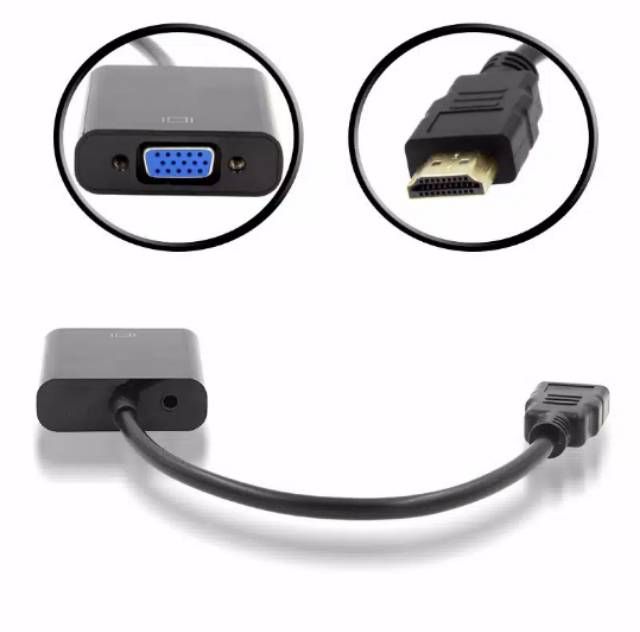

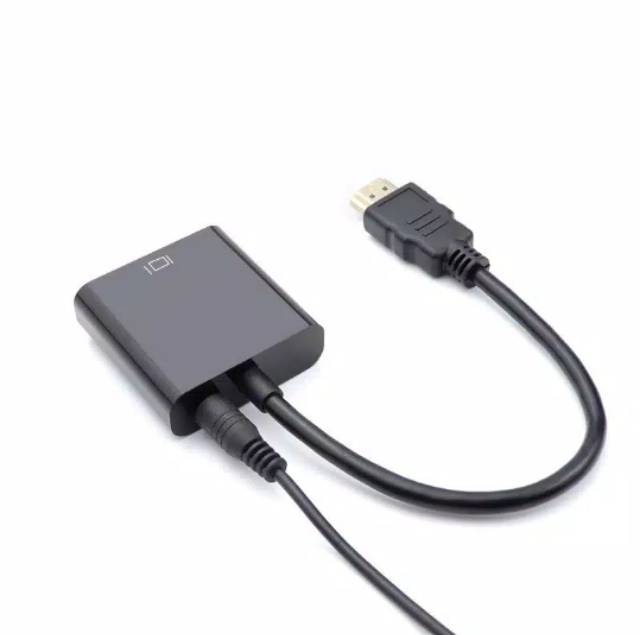

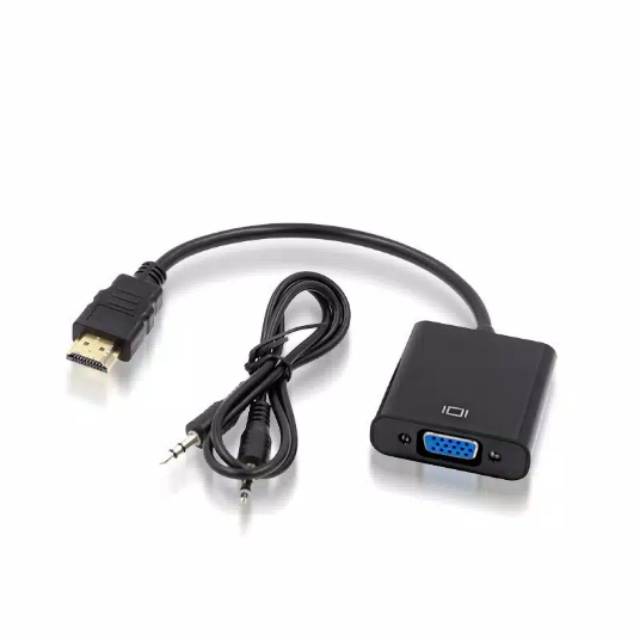

PRODUCT PICTURES

1.One single HDMI signal input convert to one VGA + analog audio signal output.

2.Support HDMI input: 480P/720P/1080P@60Hz.

3.VGA output resolution format with the input format automatically changes: 640 x 480@60Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 1280x 720@60Hz,

1280 x 768@60Hz, 1280 x 800@60Hz, 1280 x 1024@60Hz, 1360 x 768@60Hz,

1600 x 1200@60Hz, 1920x 1080@60Hz,

4.The corresponding HDMI resolution:



HDMI INPUT

VGA OUTPUT

480P

640 x 480@60Hz

720P

1280 x 720@60Hz

1080P

1920 x 1080@60Hz

5.Support PCM 2.0 channel stereo audio output.

6.Built-in digital audio decoder, the LPCM/PCM digtal audio decoding into analog stereo output.

FEATURE
HDMI Version---------------- HDMI 1.3

HDCP Version -----------------HDCP 1.1

HDMI resolution ------------------1080P/720P/480P@60Hz

Support up to VGA -------------------1920 x 1080@60Hz

Support audio format -----------------------PCM

Max bandwidth ---------------------------------------165MHz

Input/Output TMDS signa-----------------------0.5-1.5Vp-p(TTL)

Input/Output DDS signal ---------------------------5Vp-p(TTL)

Output cable distance----------------------------- =3m VGA standard cable

Max working current---------------------------------- 360mA

Operating Temperature range----------------------------------- -15to + 55?

Operating Humidity range --------------------------5 to 90%RH(No Condensation)

HDMI cable length----------------------------------- 110mm

Gambar produk
