Converter 3G SDI To AV Scaler Converter

Detail Converter 3G SDI To AV Scaler Converter

Deskripsi Converter 3G SDI To AV
3G SDI Converter AV, BNC to RCA (Support Audio Scaler converts SD-SDI)
》Description:
● HD-SDI, 3G-SDI signal to be displayed in the Normal TV
● This SDI to AV converter (CVBS) converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on normal TV while ensuring bit rates of 2,970 Gbit / s to give you fast signal transmission without any loss, and therefore expensive monitor can be replaced by normal TV.
● Also supports L / R analog audio output and can be connected to the sound system for the perfect music.
● Automatic detection video mode (3G / HD / SD)
● Conversion of SMPTE 425 M Level B to Level 1080 50/59 p. 94/60 4: 2: 2 bits

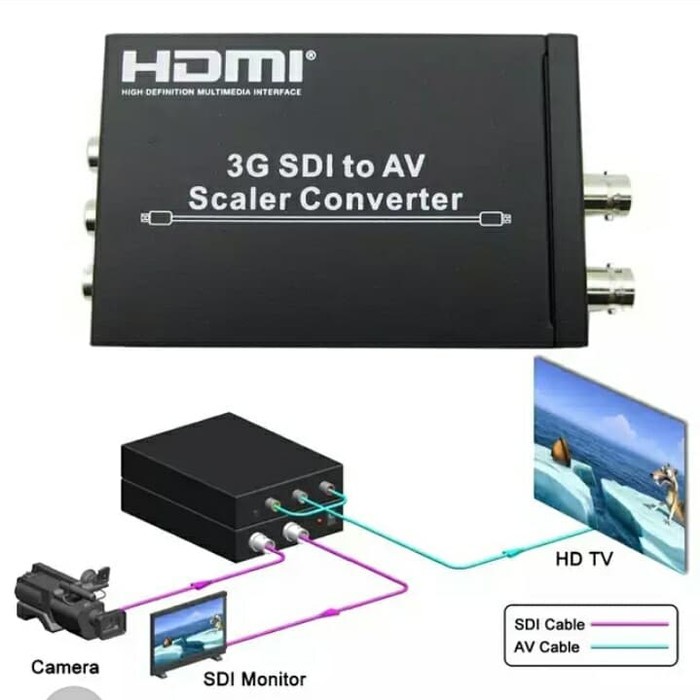

● connect with other units to extend its signal over long distances while showing SDI signals and AV
● Number Channels Analog Audio Output
● It supports signal transmission distances :
■ up to 300 M for SD signals
■ 200M for HD signals
■ 100M for 3G signals

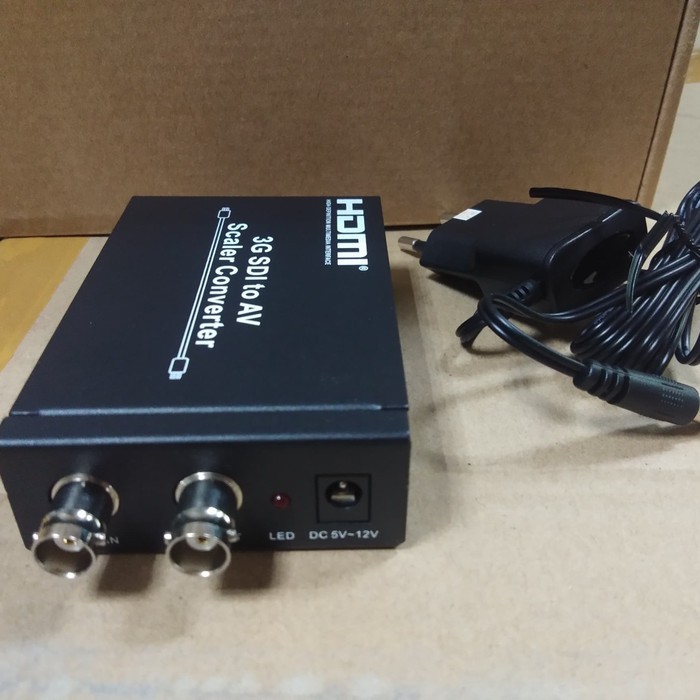

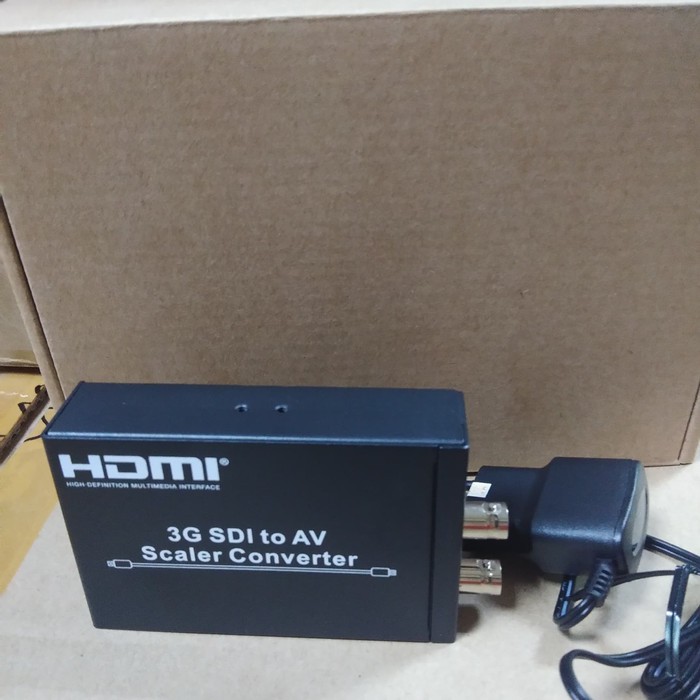

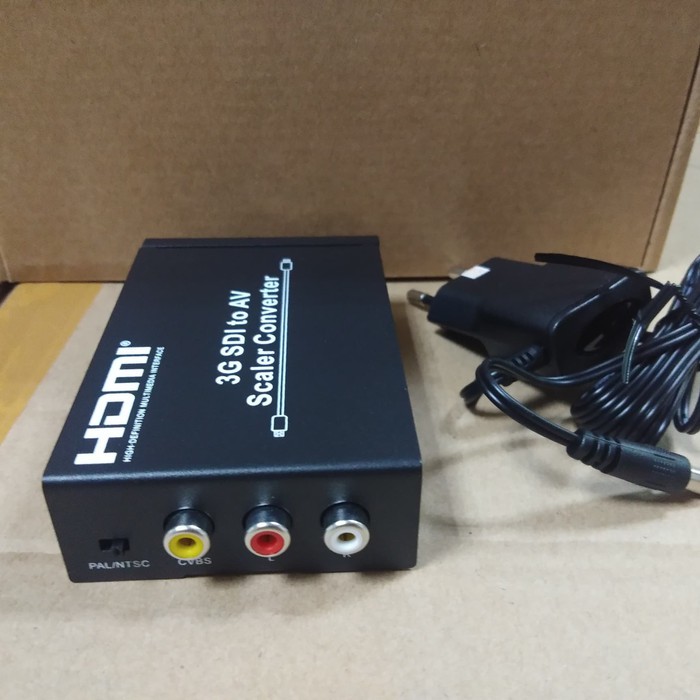

Gambar produk
