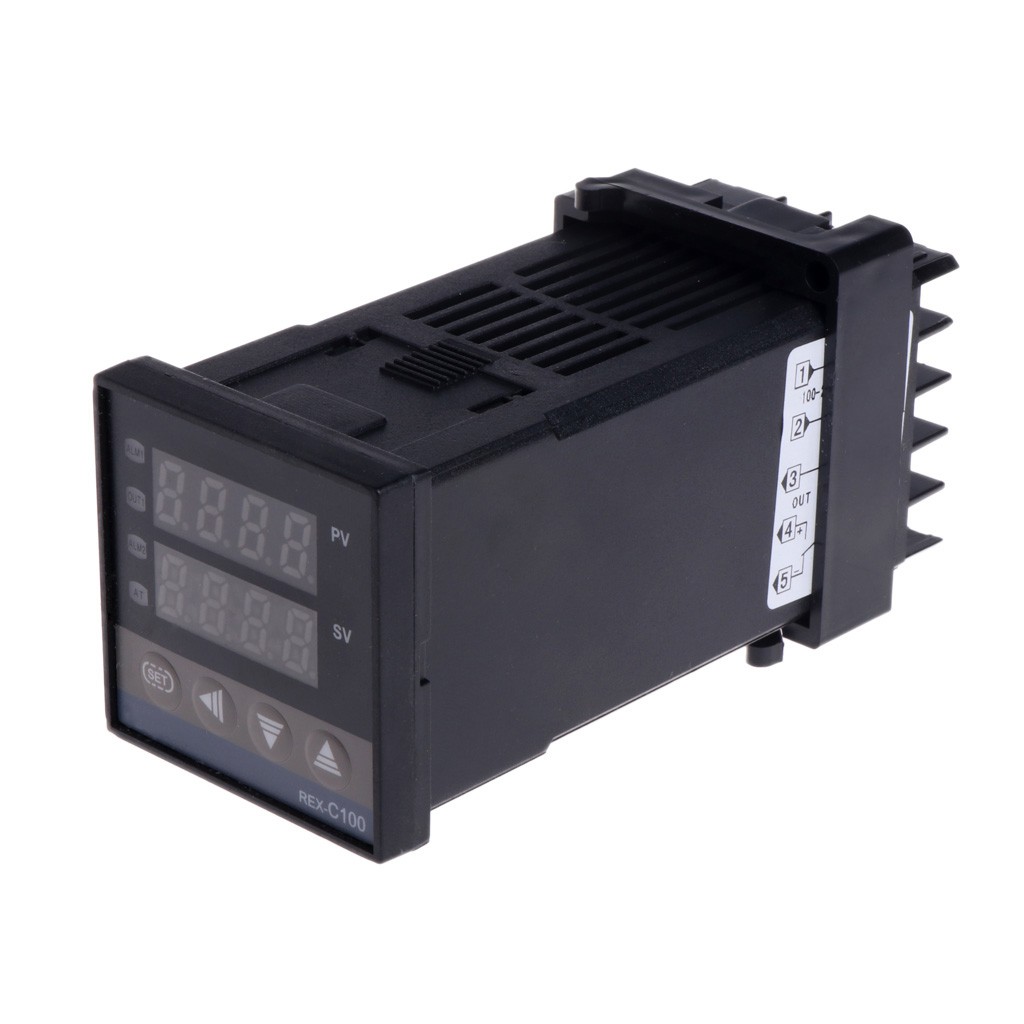

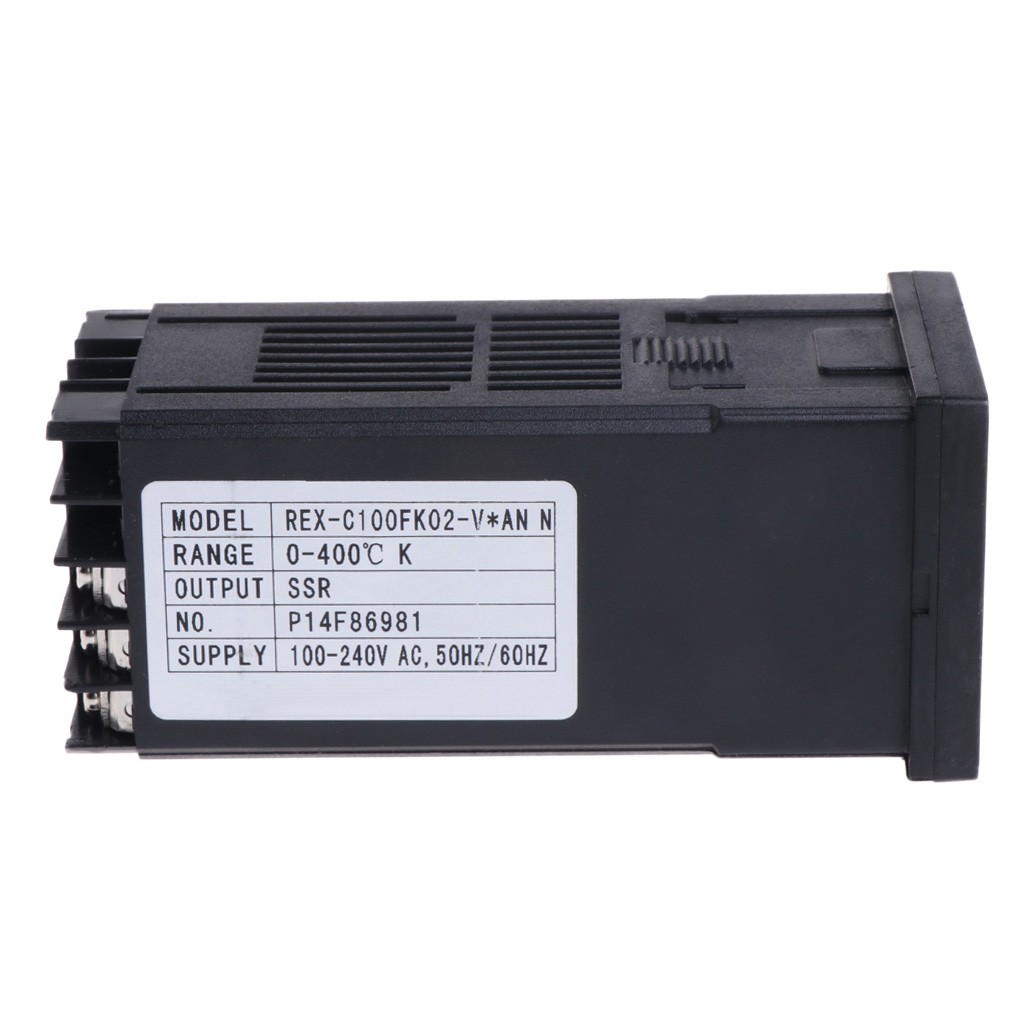

Controller Temperatur PID Digital REX-C100 0 to 400 C K Type Input SSR Output

Detail Controller Temperatur PID Digital REX-C100 0 to 400 C K Type Input SSR Output

Specifications:
Display: Dual display for Celsius (°C)
Range: 0-400°C (Only when with the factory K type thermocouple)
Thermocouple: Type K
Main Output: SSR
PID cooling/heating control
1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC
6 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval.
Accuracy: 0.5%
Input: Type K

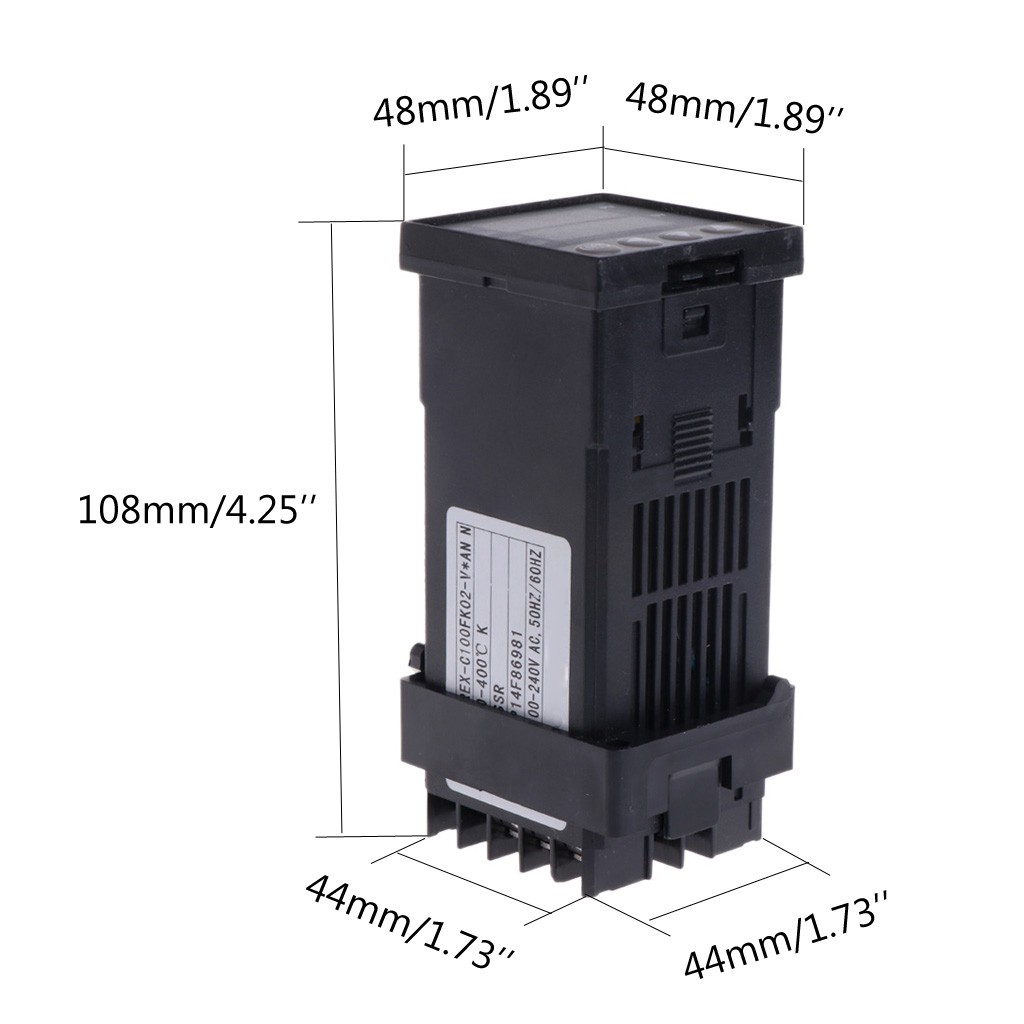

Dimension: DIN: 1/16 (48mm x 48mm x 108mm/1.89"x1.89"x4.25")
Individually programmable PID control parameters.
P, I, d, controlling period, digital filter coefficient, and more
Relay control ready to connect
Compact design:
DIN 1/8 great form-factor to be included/build-in to your product.
Input: Type K
Control output: SSR

Specifications:
Quantity: 1 Pc

Note:
If you do not know how to use, please contact us to send PDF user manual
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:
1 x PID Digital Temperature Controller SSR Output (NOT include thermocouple)
