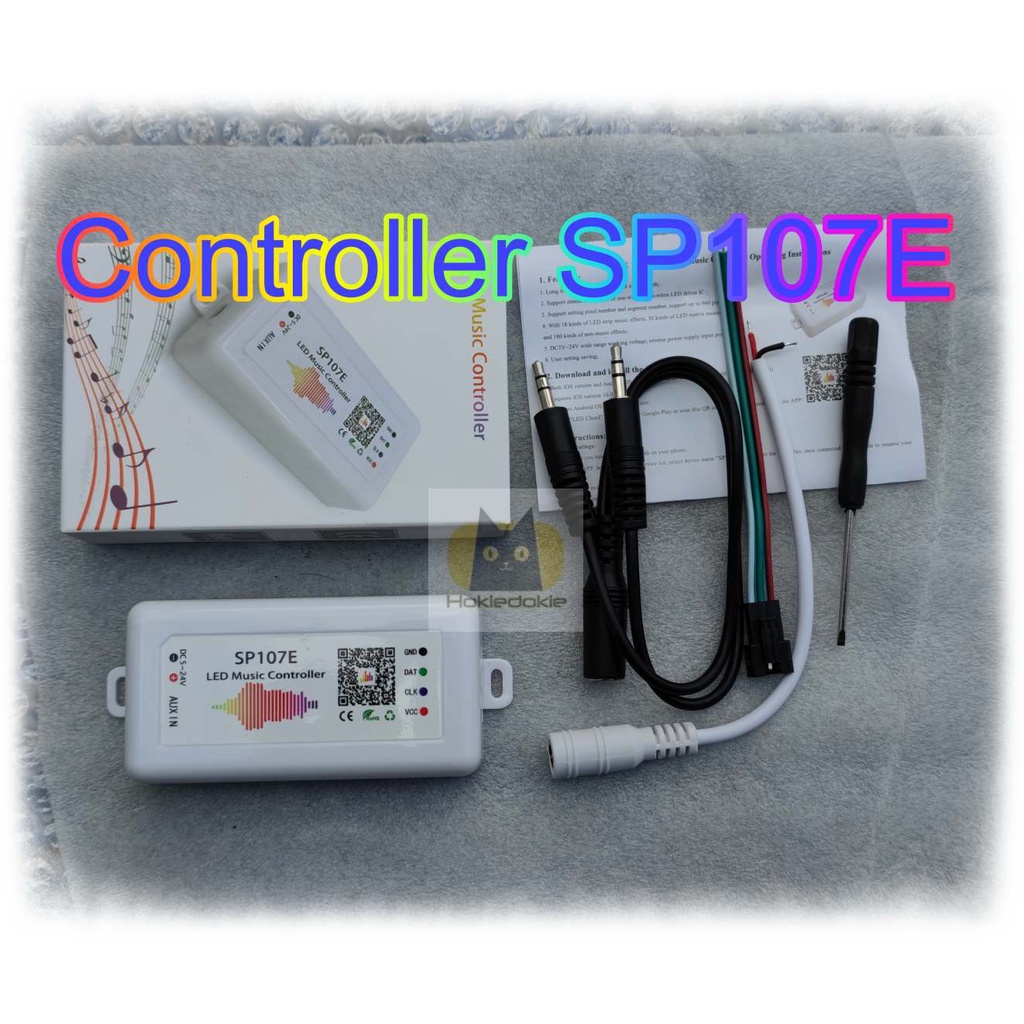

Controller SP107E RGB musik Bluetooth WS2812b WS2811

Detail Controller SP107E RGB musik Bluetooth WS2812b WS2811

Controller SP107E RGB musik bisa digunakan untuk controller led WS2811 atau led WS2812b.
input controller tergantung led yang dipakai, untuk led 12v (WS2811) maka wajib pakai adaptor 12v, begitu juga untuk ws2812b yg pakai tegangan 5V, maka gunakan adaptor 5V, apabila tegangan lewat dari 5V maka lednya akan terbakar.

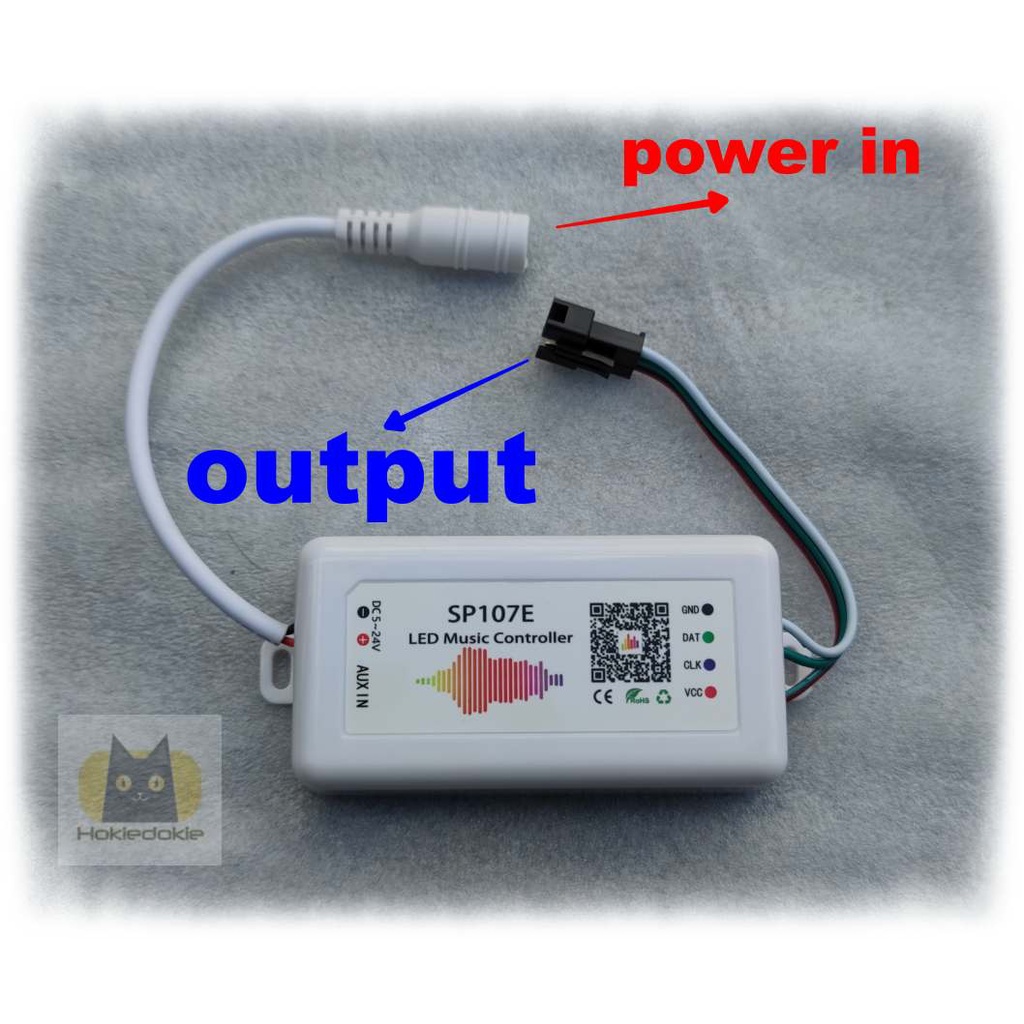

soket output ada 4 pin, untuk led WS series clock pin tidak perlu dipakai.
untuk menghindari kesalahan maka kabel power dan output akan ane batu pasang sekalian dites, pembeli tinggal pasang saja, untuk adaptor dan led yg sesuai ada di etalase

Features:
1. Long distance remote APP control via wireless; support almost all kinds of one-wire or two-wire LED Driver IC.
2. Adjustable brightness,
3. Speed Control
4. Static Color Adjustable
3. 180 Animations effect
4. 18 Music Effect for Led Strip Mode (VU Meter)
5. 30 Music Effect for Led Matrix mode(Spectrum Analyzer)
6. Image-to-effect creative use method for the user's to DIY any effect, this product is very practical.
7. Supports the setting of the number of pixels and the number of segments, capable of controlling up to 960 pixels.
8. DC5V ~ 24V wide working voltage, avoiding the reverse connection of the power supply.

This LED lighting controller is very sensitive and durable, suitable for party lighting control.

Specifications:
Operating temperature: -20 ~ 60 Degrees Celsius
Operating voltage: DC5V ~ 24V
Operating current: 20ma ~ 130mA
Remote distance: 30 meters
Product size: 85mm * 45mm * 22mm
Certificates: CE RoHS

Gambar produk
