Controller Online BC-216 16 Channel Arnet DMX Support Lighting Software

Detail Controller Online BC-216 16 Channel Arnet DMX Support Lighting Software

Controller Online BC-216 16 Channel Arnet DMX Support Lighting Software
Support : Madrix, Resolume, etc

Specifications :
Working Voltage : DC5-DC24V
Output Current : 3A X 16CH(Built-in 5A fuse)
Input Ethernet control protocol : ArtNet
Output Control IC : 2811/2801/6803/3001/8806/9813/APA102/TM1814/SK6812 Series
Control Pixels : RGB:340 Pixels X16CH RGBW:256 Pixels X16CH
Output DMX512 : Two port(2X512 Channels)
Working Temp : 20~55
Product Dimension : L258×W145×H41(mm)
Weight(G.W) : 1100g

Features:
- With LCD display and built-in WEB SERVER setting interface, easy operation.
- Support Ethernet DMX protocol ArtNet, can be expanded to other protocols.
- Multi SPI (TTL) signal output, up to 5440 pixels control.
- Output DMX512 signal at the same time, convenient for the connection of different types led lamp.
- Support various LED driving IC, flexible control.
- Support online firmware upgrade.
- Adopt DIP plug-in design for the easily-worn parts, Users can repair the damage caused by wrong wiring or short circuit.
- Built-in test mode, using a network interface with indicator light, work status is clear when at a glance.

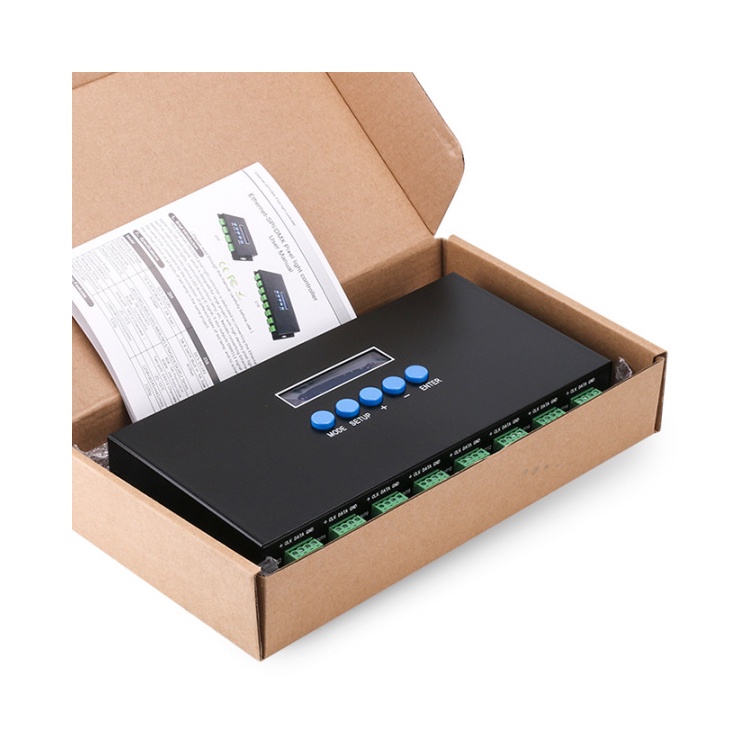

Packing List :
1X Controller BC-216
1X Manual Book

Untuk Lighting Project Bisa Hub WA 087732 5858 98

Gambar produk
