Controller Intelligent Brushless Motor 48V Electric Vehicle (7124)

Detail Controller Intelligent Brushless Motor 48V Electric Vehicle (7124)

Intelligent Brushless Motor Controller 48V Electric Vehicle (7124)

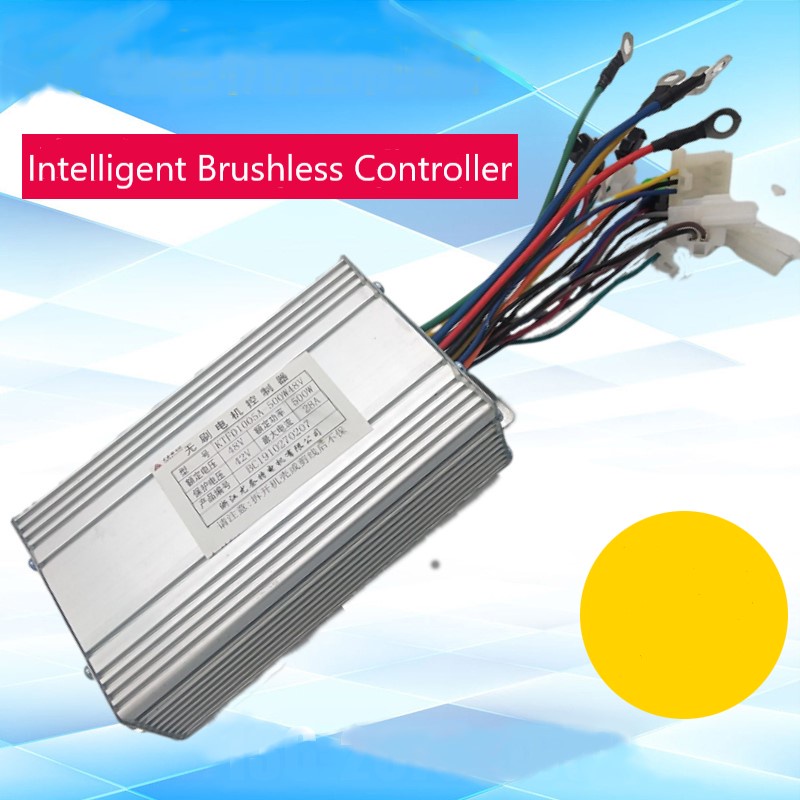

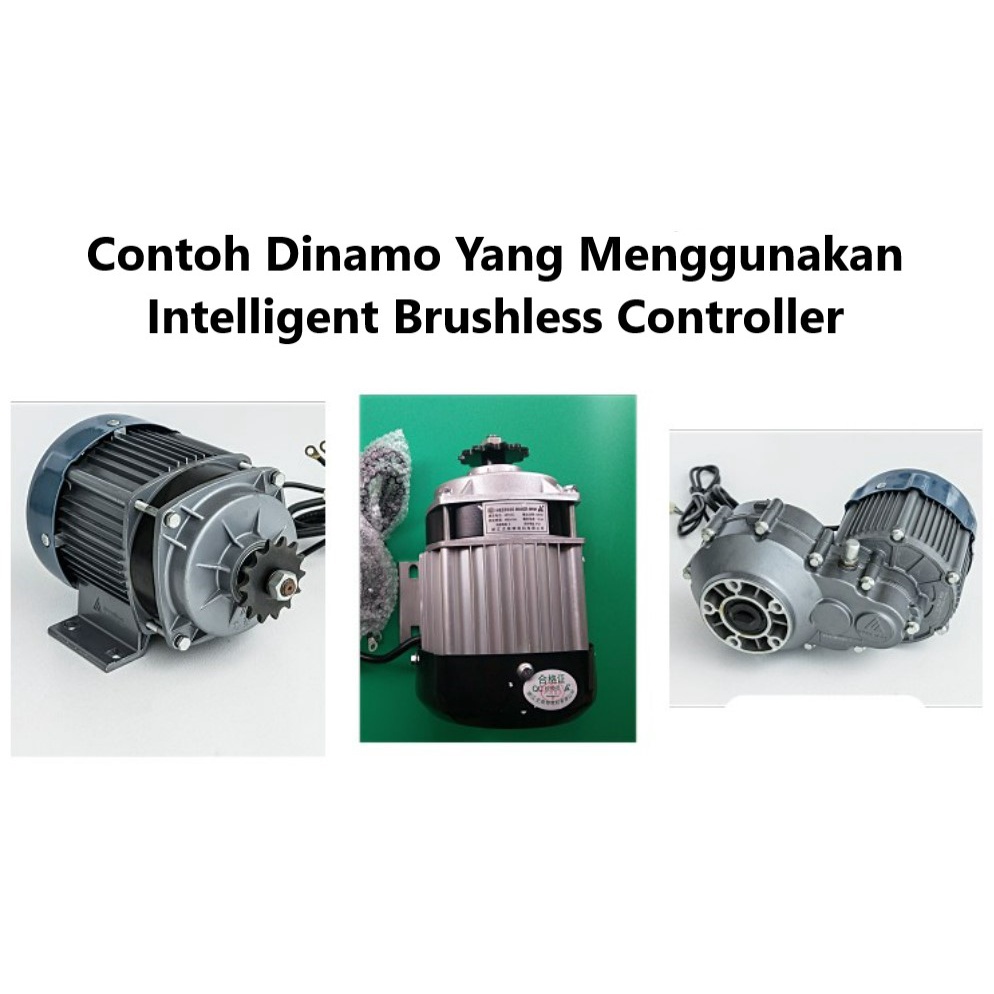

Terdapat 3 varian controller 48V dinamo brushless

Berikut keterangan masing-masing controller
*Controller 48V 500W
Rated voltage: 48V
Rated power: 500W
Undervoltage protection value: 42V±1V
Turning voltage: 1V to 4.2V
Maximum current: 28A±1A
Brake level: low level high level
Phase angle: 120 degrees
Ambient temperature: -20 degrees to 50 degrees
Cooling method: natural air cooling
Protection class: IP55

** 48V 600W
Rated voltage: 48V
Rated power: 500W
Undervoltage protection value: 42V±1V
Turning voltage: 1V to 4.2V
Maximum current: 28A±1A
Brake level: low level high level
Phase angle: 120 degrees
Ambient temperature: -20 degrees to 50 degrees
Cooling method: natural air cooling
Protection class: IP55

*** 48V 800W
Rated voltage: 48V
Rated power: 800W
Undervoltage protection value: 42V±1V
Turning voltage: 1V to 4.2V
Maximum current: 38A±1A
level: low level
Phase angle: 120 degrees

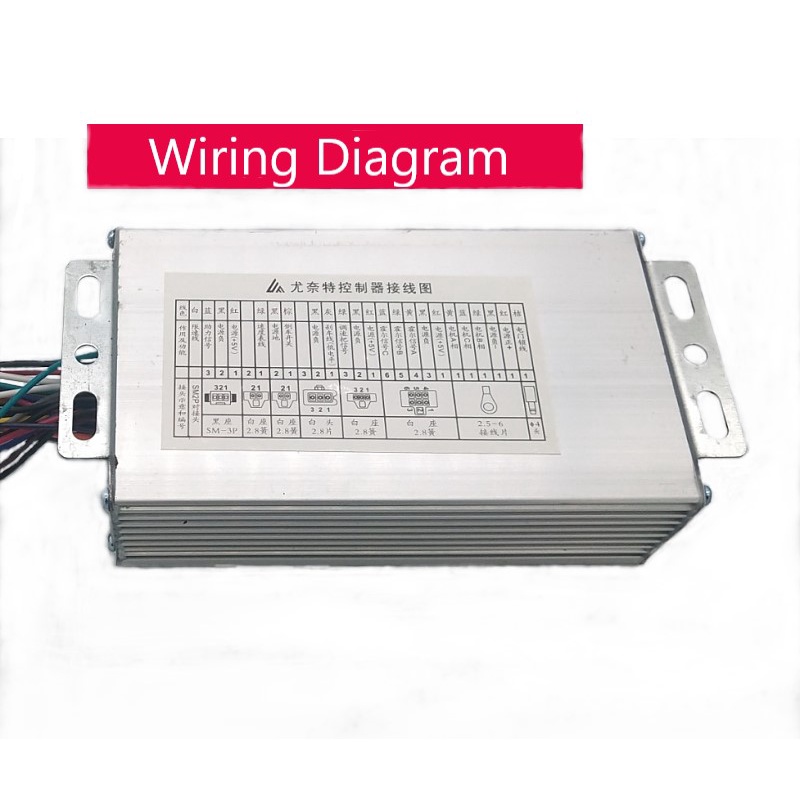

Fungsi Kabel :
1 Thick black wire - connected to the negative pole of the power supply
red wire - connected to the power pole. Bullet
2 Orange wire is the electric door lock wire- connect to the positive pole of the power supply (usually connected to the electric door lock and then the electric door lock to the positive pole of the power supply)
3 Three wires thick blue, thick green, thick yellow - connected to the phase wire of the motor
4 Hall Connector - connected to the Hall of the motor
the red wire is the positive pole 5V
the black wire is the negative pole 5V
the red and black wire is the motor hall power wire
the blue, yellow, and green line are signal lines
5 Accelerator
Red : power supply +5V; Green : signal; Black : ground
6 The low level and high level brake connectors; play the role of brake power off
7 Black and brown : Forward and reverse function
8 white : speed limit line
9 green : speed signal line
