Controller Electric Vehicle Mode 6 in 1 Brushless Motor(7120)

Detail Controller Electric Vehicle Mode 6 in 1 Brushless Motor(7120)

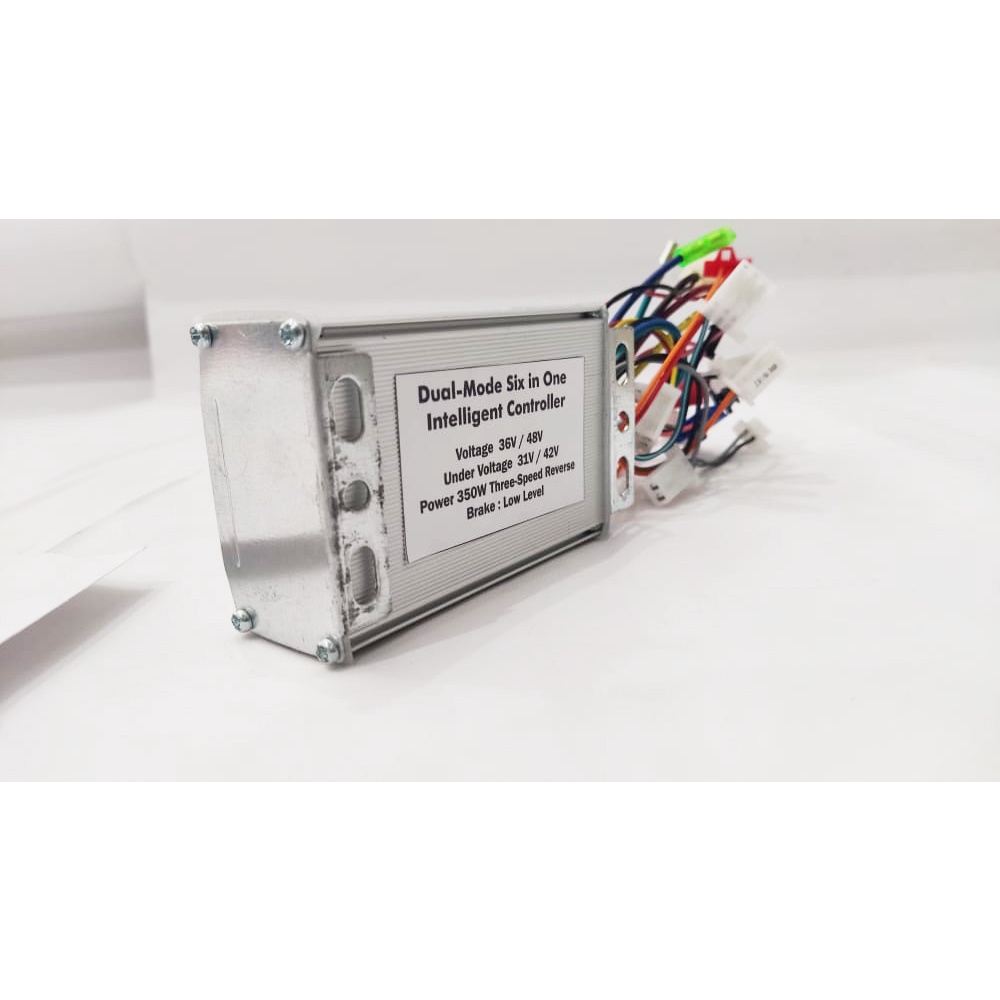

Controller Electric vehicle Mode 6 in 1 brushless motor(7120)

Tianyulian dual-mode six-in-one intelligent controller 24V36V48V350W electric vehicle brushless intelligent controller

Dual-mode 6-in-1 smart controller electric vehicle 24-36V350W brushless motor with electronic brake controller (7120)

Power 350W
Voltage : 36V/48V

Function Description

1 thick red and black wire power cable

2 thick blue-yellow-green motor wires

3 Thin blue, yellow, green, red and black 5 lines are Hall lines

4 thin red, black and green wire

5 fine orange black gray three-speed line

6 fine orange black indicator light

7 Thin red and black charging ports are also positive and negative outputs

8 fine black and white reversing

9 fine black gray low brake

10 separate two white lines learning line
