Connector JST XH2.54-2P Male Straight Header 2.54mm CI22 2 pin Female

Elektronik > Elektronik Lainnya > Connector JST XH2.54-2P Male Straight Header 2.54mm CI22 2 pin Female
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:EasyWare ElectronicsLihat semua produk Elektronik oleh EasyWare Electronics
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Connector JST XH2.54-2P Male Straight Header 2.54mm CI22 2 pin Female

Hi #RekanEasyWare ...

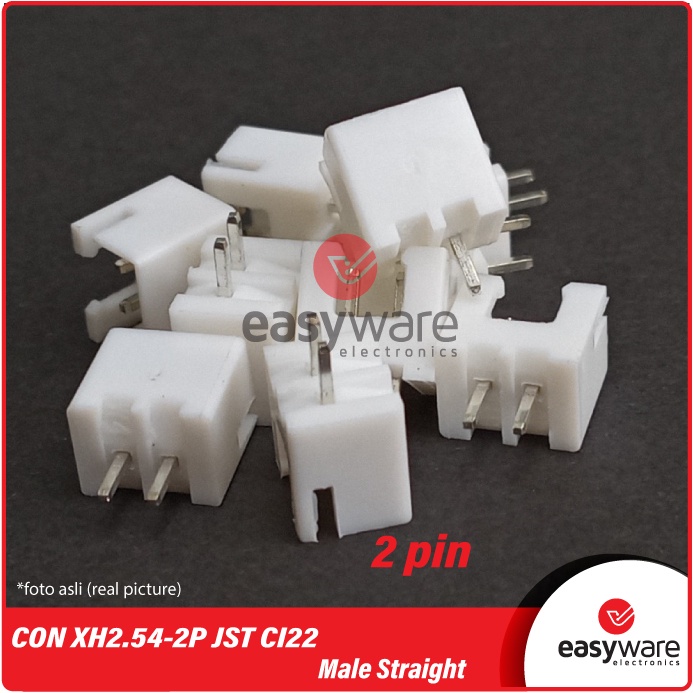

- EasyWare Part# [MALE STRAIGHT]: EP000958

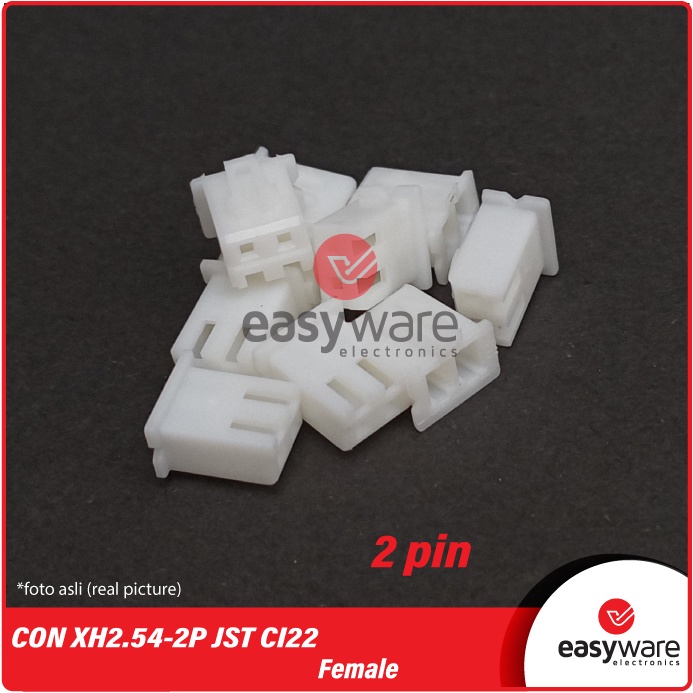

- EasyWare Part# [FEMALE]: EP000959

Catatan:
- Ada 2 varian dalam link produk ini.
- Harga untuk 1pcs.
- XH Connector tersebut pabrikan dari China, bisa dibilang alternatif dari merek JST yang terkenal mahal.

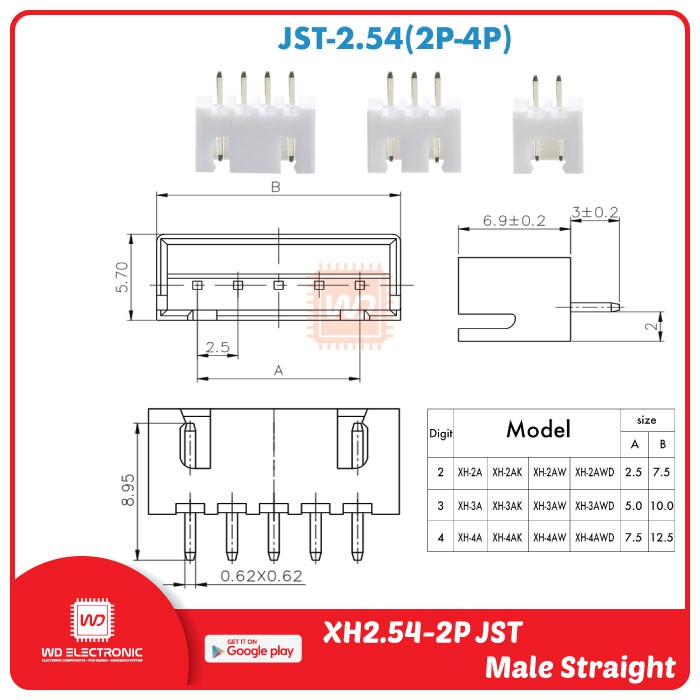

Spesifications :
- Type: Straight Pin Header Connector
- Pitch: 2.5mm
- Poles: 2 pins
- Wire Range:0.2mm² (24AWG)
- Applicablw printed board thickness: 0.8 ~1.6mm
- Voltage rating: 250V AC/DC.
- Current rating: 3A AC/DC
- Working temperature: -25°C ~+85°C
- Withstand voltage: 1000V/min
- Contact resistance: ≤0.02 ohm
- Insulation resistance: ≥1000M ohm
- Color: white

Package :
- 1x XH2.54 2p Straight Pin Header Connector Male or female

Gambar produk

Connector JST XH2.54-2P Male Straight Header 2.54mm CI22 2 pin Female
Connector JST XH2.54-2P Male Straight Header 2.54mm CI22 2 pin Female
Connector JST XH2.54-2P Male Straight Header 2.54mm CI22 2 pin Female
Connector JST XH2.54-2P Male Straight Header 2.54mm CI22 2 pin Female
Connector JST XH2.54-2P Male Straight Header 2.54mm CI22 2 pin Female
Connector JST XH2.54-2P Male Straight Header 2.54mm CI22 2 pin Female
Lihat lebih banyak informasi produk
