Detail Connector JST XH2.54-12P Male Straight Header 2.54mm CI22 12 pin Female

Hi #RekanEasyWare ...
- EasyWare Part# [MALE STRAIGHT]: EP000978
- EasyWare Part# [FEMALE]: EP000979

Catatan:
- Ada 2 varian dalam link produk ini.
- Harga untuk 1pcs.
- XH Connector tersebut pabrikan dari China, bisa dibilang alternatif dari merek JST yang terkenal mahal.

NOTE:
Sebelum check out pastikan terlebih dahulu kakak pilih varian Connector, ada 2 varian yaitu :

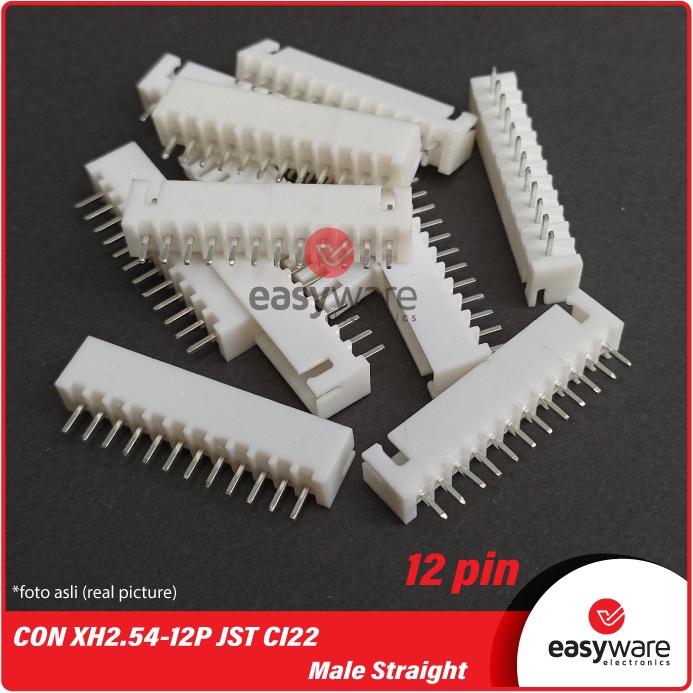

1. *Male Straight

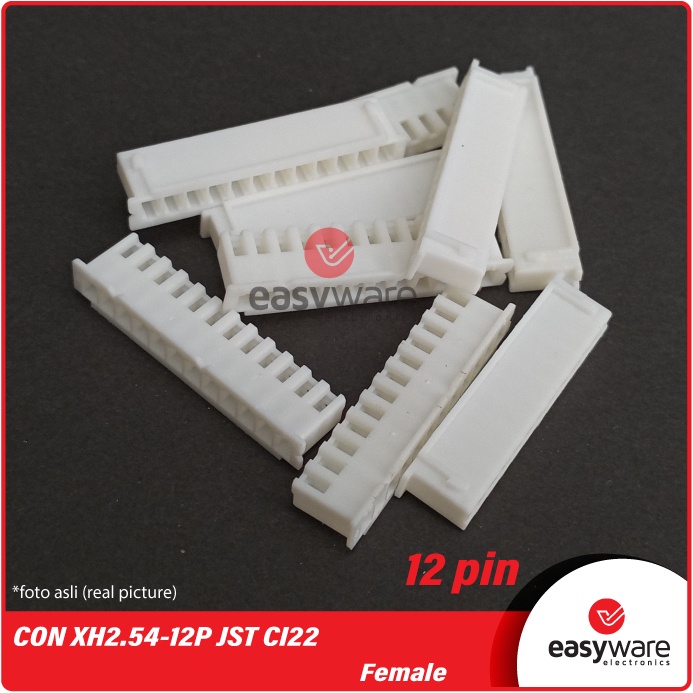

2. *Female

Spesifications :
- Type: Straight Pin Header Connector
- Pitch: 2.5mm
- Poles: 12 pins
- Wire Range:0.2mm² (24AWG)
- Applicablw printed board thickness: 0.8 ~1.6mm
- Voltage rating: 250V AC/DC.
- Current rating: 3A AC/DC
- Working temperature: -25°C ~+85°C
- Withstand voltage: 1000V/min
- Contact resistance: ≤0.02 ohm
- Insulation resistance: ≥1000M ohm
- Color: white

Kelengkapan :
- 1x Connector JST XH 2.54-12P *Male *Female.
