CONNECTOR C20 MALE 3 PIN

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > CONNECTOR C20 MALE 3 PIN
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Toko Optima KiranaLihat semua produk Audio oleh Toko Optima Kirana
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail CONNECTOR C20 MALE 3 PIN

JUAL : CONNECTOR C20 MALE 3 PIN

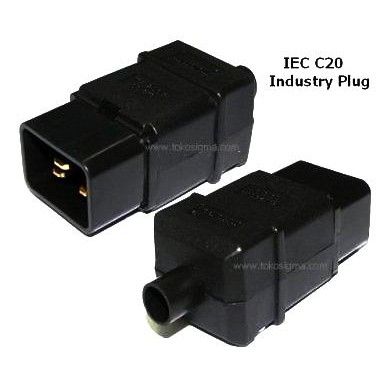

16A/250V - C20 connector IEC 320 C20 re-wireable plug

Connector C20 male 3 pin adalah konektor yang di pakai untuk merakit kabel Power PDU atau UPS industrial.


Fitur dan Spec :

Rated Current : 16A
Rated Voltage : 250V
Application:Industrial
Grounding:Standard Grounding
Type:Electrical Plug - IEC C20 industry plug
Color : Black
16A/250V : it mostly used for UPS, PDU equipment, etc.
rewirable : DIY type C20
16A ~250V, The plugs are designed for quick termination using screw terminals. Maximum 16AMP rating
For cord Sizes (max) : 3x2.5mm^2 (Europe) and 3X12AWG (USA)
Overall cable diameter fit up to 11.5mm
ROHS compliant
weight : 85 grams


Isi paket :

1pcs (not pair) C20 connector re-wireable plug

Gambar produk

CONNECTOR C20 MALE 3 PIN
CONNECTOR C20 MALE 3 PIN
CONNECTOR C20 MALE 3 PIN
CONNECTOR C20 MALE 3 PIN
CONNECTOR C20 MALE 3 PIN
CONNECTOR C20 MALE 3 PIN
CONNECTOR C20 MALE 3 PIN
CONNECTOR C20 MALE 3 PIN
Lihat lebih banyak informasi produk
