Connector 4.2mm 5557 6+2P Male 8P PCIe Molex Housing 6 Pin + 2 Pin

Elektronik > Elektronik Lainnya > Connector 4.2mm 5557 6+2P Male 8P PCIe Molex Housing 6 Pin + 2 Pin
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Connector 4.2mm 5557 6+2P Male 8P PCIe Molex Housing 6 Pin + 2 Pin

Hi #RekanEasyWare ...
- EasyWare Part#: EP001077

Catatan:
- Foto asli stok EasyWare Electronics.
- Kualitas high quality, datasheet tersedia, mangga bisa dibandingkan dengan konektor yang dijual ditempat lain dengan harga yang setara.

Spesifikasi:
- Poles: 6+2P
- Current Rating: 9A AC, DC
- Voltage Rating: 300V AC, DC
- Temperature range: -25°C to +105°C
- Withstand voltage: 1500V AC/minute
- Applicable wire: AWG #28 to #16
- Applicable PCB thickness: 1.6 to 2mm

Kelengkapan:

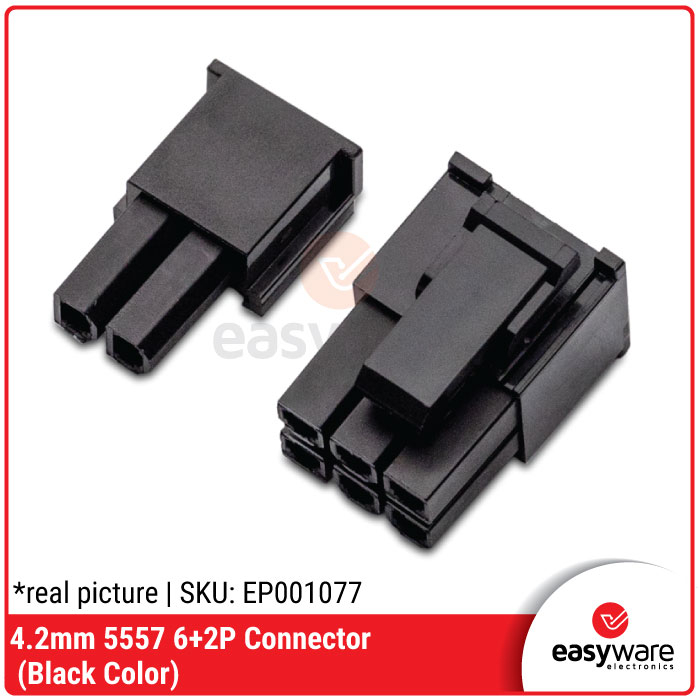

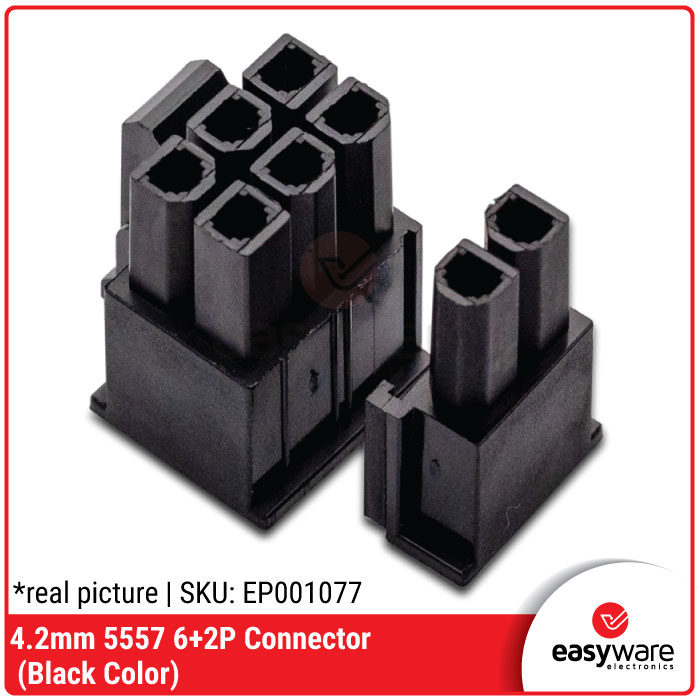

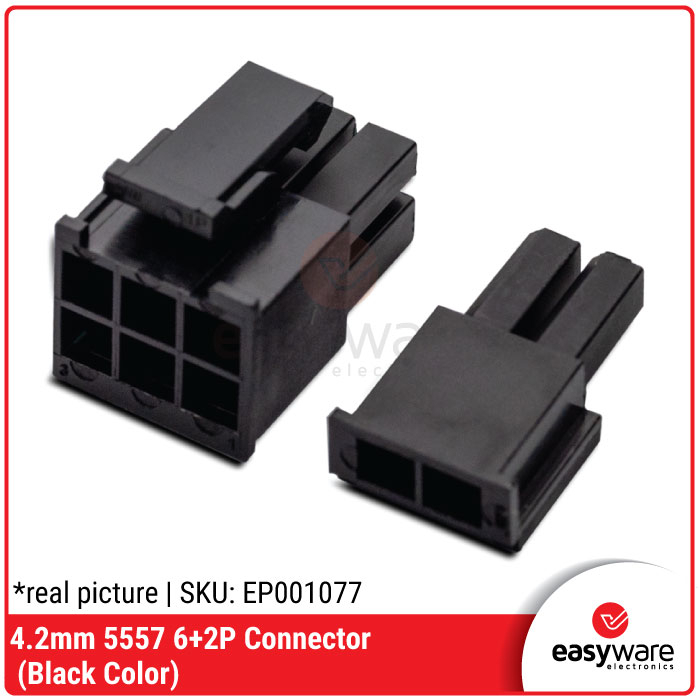

- 1x 4.2mm 5557 6+2P Connector (Black Color)

Gambar produk

Connector 4.2mm 5557 6+2P Male 8P PCIe Molex Housing 6 Pin + 2 Pin
Connector 4.2mm 5557 6+2P Male 8P PCIe Molex Housing 6 Pin + 2 Pin
Connector 4.2mm 5557 6+2P Male 8P PCIe Molex Housing 6 Pin + 2 Pin
Connector 4.2mm 5557 6+2P Male 8P PCIe Molex Housing 6 Pin + 2 Pin
Connector 4.2mm 5557 6+2P Male 8P PCIe Molex Housing 6 Pin + 2 Pin
Connector 4.2mm 5557 6+2P Male 8P PCIe Molex Housing 6 Pin + 2 Pin
Connector 4.2mm 5557 6+2P Male 8P PCIe Molex Housing 6 Pin + 2 Pin
Connector 4.2mm 5557 6+2P Male 8P PCIe Molex Housing 6 Pin + 2 Pin
