Connector 3 Wire Kabel 222-413 Compact Terminal Block Lever Cage Clamp

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > Connector 3 Wire Kabel 222-413 Compact Terminal Block Lever Cage Clamp
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Connector 3 Wire Kabel 222-413 Compact Terminal Block Lever Cage Clamp

**Kelebihan:
1. Pemasangan mudah dan cepat
2. Insulasi penuh, aman dipegang
3. Menghemat waktu dan tempat (ukuran kecil)
4. Mudah, tanpa peralatan

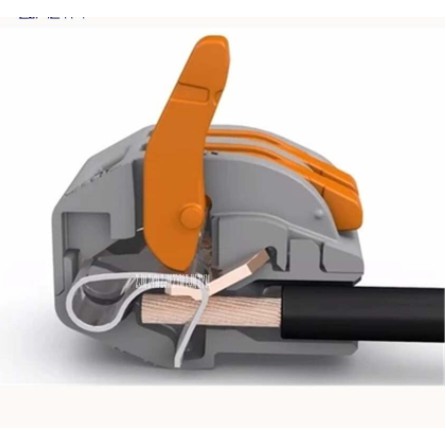

5. Teknologi CAGE CLAMP


**Fitur:
1. Compact splicing connector
2. 3-conductor terminal block
3. With operating levers
4. Max. continuous service temperature 85C

**Spesifikasi:
Jumlah koneksi: 3 kabel
Rated voltage: 400 V
Rated surge voltage: 4 kV
Nominal current: 32 A
Ukuran kabel: 0.08-2.5 mm2 / 28-12 AWG
Connection technology: CAGE CLAMP
Warna: abu
Ukuran: 17x14x20mm

berikut link pembelian 2 kabel:
https://shopee.co.id/Connector-2-Wire-Kabel-222-412-Compact-Terminal-Block-Lever-Cage-Clamp-i.10630793.6752837011

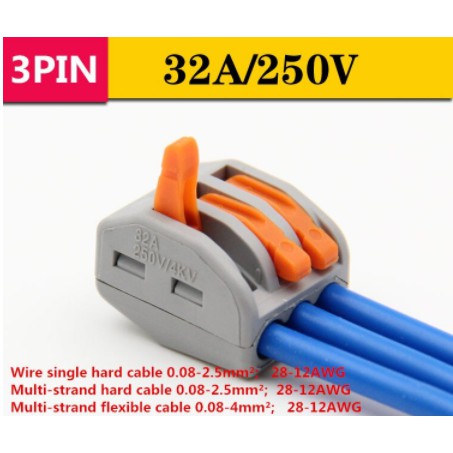

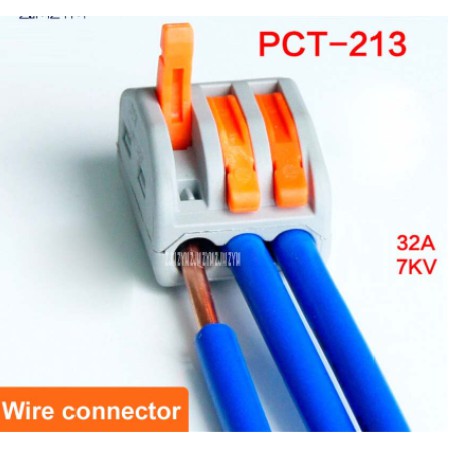

Gambar produk
