Connector 2 Wire Kabel 222-412 Compact 32A 400V Household Mini Fast Wiring Terminal Block Lever Cage

Elektronik > Elektronik Lainnya > Connector 2 Wire Kabel 222-412 Compact 32A 400V Household Mini Fast Wiring Terminal Block Lever Cage
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Connector 2 Wire Kabel 222-412 Compact 32A 400V Household Mini Fast Wiring Terminal Block Lever Cage

**Kelebihan:
1. Pemasangan mudah dan cepat
2. Insulasi penuh, aman dipegang
3. Menghemat waktu dan tempat (ukuran kecil)
4. Mudah, tanpa peralatan
5. Teknologi CAGE CLAMP

**Fitur:
1. Compact splicing connector
2. 3-conductor terminal block
3. With operating levers
4. Max. continuous service temperature 85C

**Spesifikasi:
Jumlah koneksi: 2 kabel
Rated voltage: 400 V
Rated surge voltage: 4 kV
Nominal current: 32 A
Ukuran kabel: 0.08-2.5 mm2 / 28-12 AWG
Connection technology: CAGE CLAMP
Warna: abu
Ukuran: 12x14x20mm

terima kasih

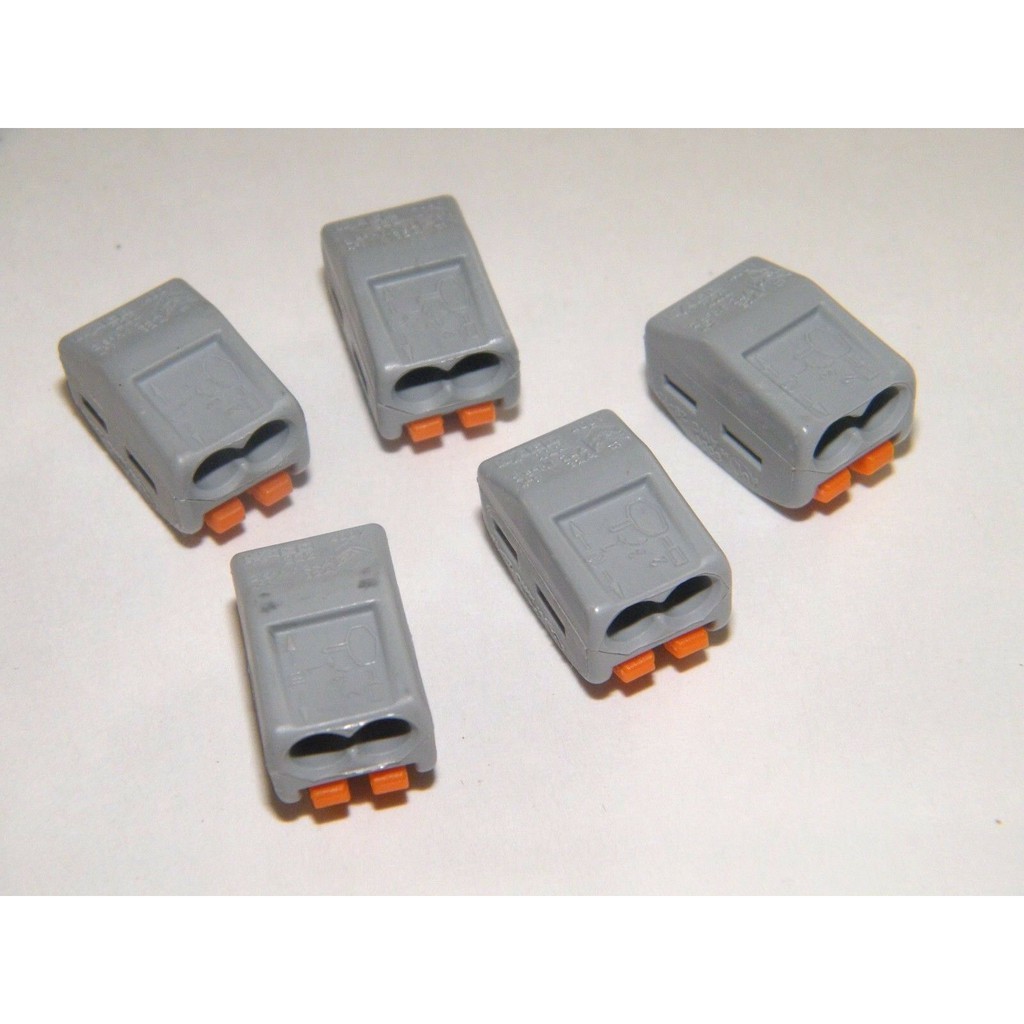

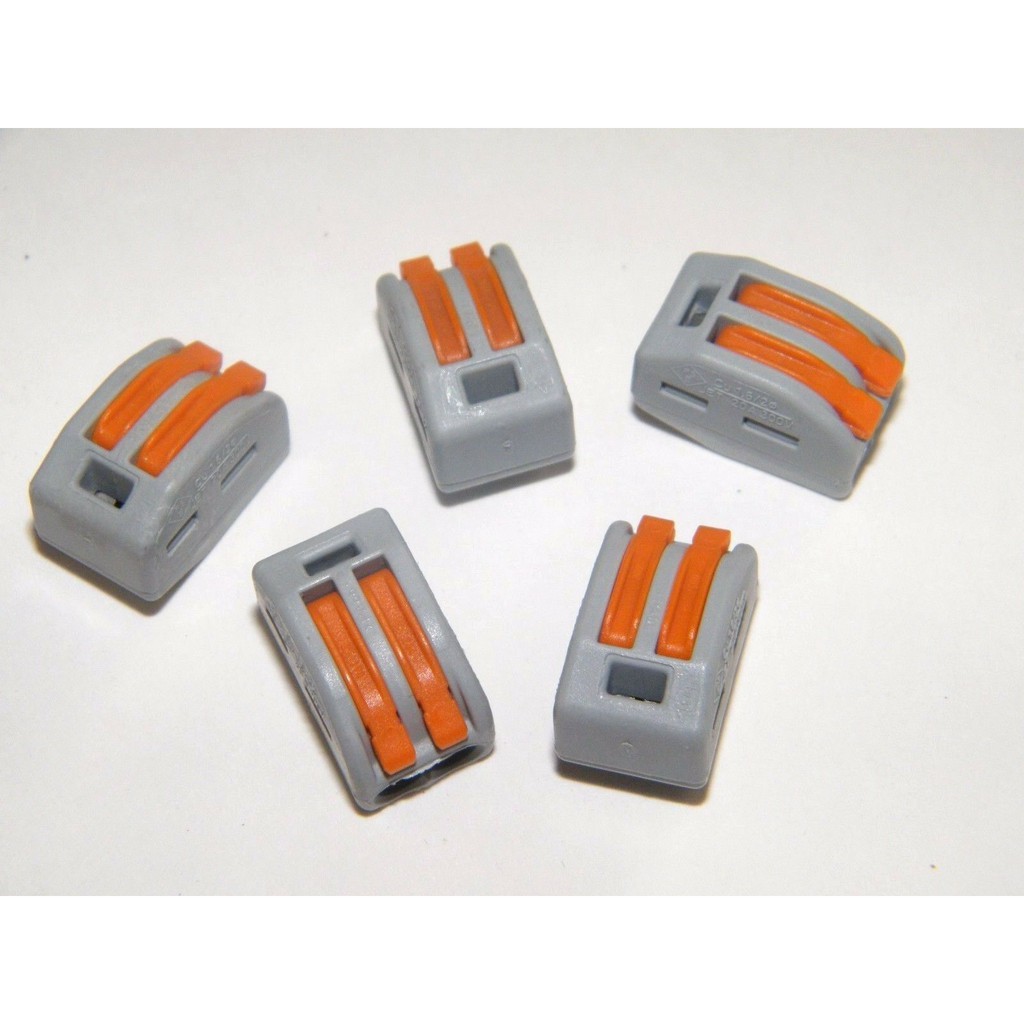

Gambar produk
