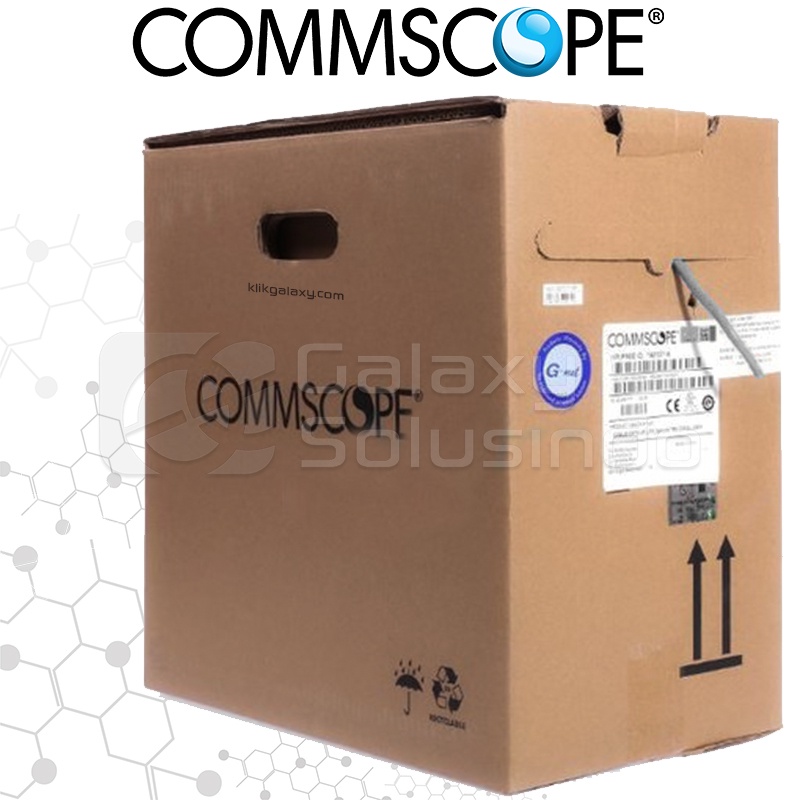

COMMSCOPE UTP AMP Cable Cat6 305M

Merek: Commscope | Lihat selengkapnya produk Komputer & Aksesoris dari Commscope
Komputer & Aksesoris > Komponen Network > Komponen Network Lainnya > COMMSCOPE UTP AMP Cable Cat6 305M
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:GASOLLihat semua produk Komputer & Aksesoris oleh GASOL
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail COMMSCOPE UTP AMP Cable Cat6 305M

Kabel AMP / Commscope UTP CAT 6 (Gigabit - 10/100/1000) Original

Panjang 30% Meter (1 Roll) Warna Biru

Part Number : 1427071-6

Materials :
Conductors 24 AWG solid bare copper
Insulation Polyethylene, 0.037 in nom dia
Jacket FR PVC,CM
Filler Polyethylene
Electrical Characteristics
Impedance 100 15%, 1 MHz to 250 MHz
Propagation delay 536 ns/100 m max. @ 250 MHz
Skew 45 ns/100 m max. @250 MHz
Mutual capacitance 5.6 nF max/100 m
Conductor resistance 66.58 max/1000 m
Mechanical Characteristics
Bend radius The minimum bending radius is 8x outside diameter during installation and 4x
the outside diameter after installation 1"
Operating temperature -20C to 60C
Storage temperature -20C to 80C
Approvals
UL File Number E138034
ETL Certificate 3162341CRT-001
RoHS Compliant
