Commscope AMP Modular Jack Cat6A Cat.6A SL Commscope 2153001-1

Detail Commscope AMP Modular Jack Cat6A Cat.6A SL Commscope 2153001-1

WAJIB CHAT untuk cek ketersediaan stok!
===============================
100% Original

Deskripsi AMP Modular Jack Cat6A / Cat.6A SL Commscope 2153001-1
AMP Modular Jack Cat6A / Cat.6A SL Commscope

Part : 2153001-1

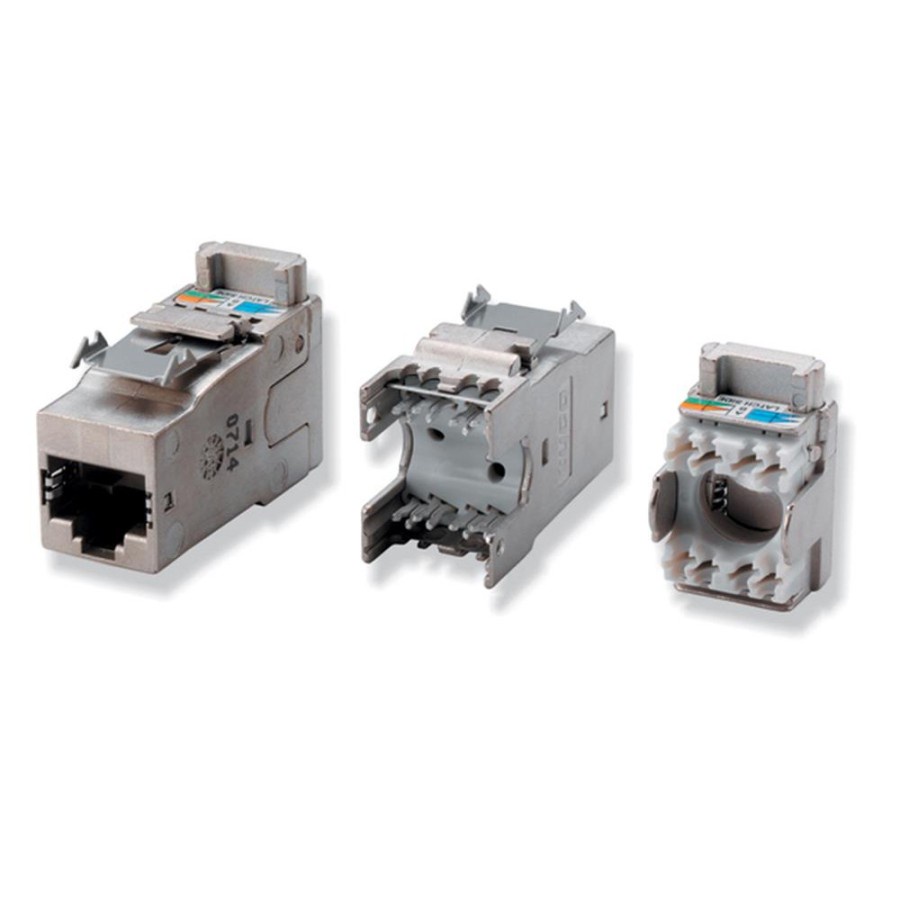

AMP-TWIST SL Series Modular Jack, category 6A, shielded F/UTP, 8-position, without dust cover

Product Classification :
Portfolio NETCONNECT®
Product Series SL Series
Product Type Modular jack
Regional Availability Asia

Dimensions :
Compatible Cable Diameter, maximum 9.00 mm | 0.35 in
Compatible Insulated Conductor Diameter, maximum 1.600 mm | 0.063 in
Depth 36.70 mm | 1.44 in
Height 20.50 mm | 0.81 in
Width 15.30 mm | 0.60 in

Electrical Specifications :
ANSI/TIA Category 6A
Safety Voltage Rating 150 Vac
Transmission Standard ANSI/TIA-568-C.2 | ISO/IEC 11801 Class EA

General Specifications :
Cable Type Shielded
Color Silver
Package Quantity 12
Packaging Type Tray in box
Panel Cutout, recommended 14.78 x 20.07 mm (0.58 x 0.79 in)
Panel Thickness, recommended 1.60 mm

Mechanical Specifications :
Conductor Gauge, solid 24–22 AWG
Conductor Gauge, stranded 26–24 AWG
Conductor Type Solid | Stranded
Contact Base Material Beryllium copper
Contact Plating Material Gold
Contact Plating Thickness 1.27 µm
Material Type Polycarbonate
Outlet Type Standard
Plug Insertion Life, minimum 750 times
Termination Tool SL Termination tool
Termination Type IDC
Wiring T568A | T568B

Gambar produk
