Color Recognition Sensor TCS230 TCS3200 Sensor pengenal Warna Arduino

Detail Color Recognition Sensor TCS230 TCS3200 Sensor pengenal Warna Arduino

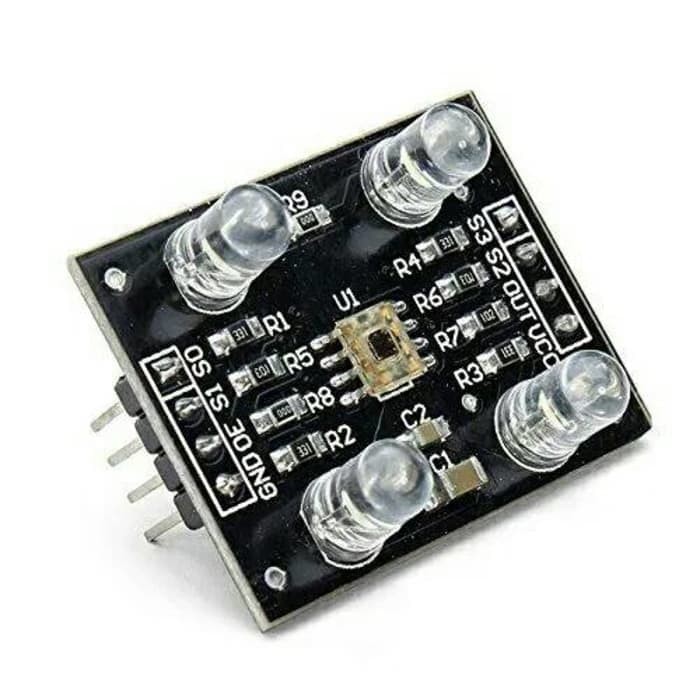

COLOR SENSOR MODULE TCS230 adalah module sensor yang dapat mendeteksi / mengenali warna, sangat cocok dihubungkann ke Arduino atau Minsys lainnya untuk project2 anda!

Penjelasan resmi:
Designed around 4 White LEDs and the TAOS TCS230 sensor IC. The four white LEDs to provide a broad spectrum light source. The TCS230 has an 8 x 8 array of photodiodes with color filters (16 Red, 16 Blue, 16 Green, 16 Clear).
A light to frequency converter generates a 50% duty cycle square wave on the output pin.
Frequency is directly proportional to light intensity. Output scaling 100%, 20% and 2% allows for wide dynamic range of intensities. toko
The color selects (S2, S3), frequency scale (S0, S1) and output are TTL logic level and can be connected directly to the micro controller. duino
Visit Tokoduino dot com
Basic readings are easy using the Arduino pulsein command. Take a reading for each color. The reading with narrowest pulse width or highest frequency is the major color. Using advanced ratio analysis almost any color could be recognized.

Spesifikasi:
Sensor IC: TAOS TCS230
Power: 2.7 5VDC
Current: >30mA @ 5V
Input: TTL Logic Levels
Visit Tokoduino dot com
Sensor Bandwidth: ~400nm to 950nm
Output: TTL Level Square Wave (50% Duty Cycle), ~2Hz max Dark / 24KHz Max
Dual 4 Pin .1in Pitch Headers

NOTE: The OE pin (Output Enable ) is grounded through R8 (0ohm), making the module enabled by default. Do not connect the OE to the micro controller, unless R8 is removed or changed to 4.7K or greater.

Gambar produk
