[COD BAYAR DI TEMPAT] AMS1117 3.3 SOT-223 1A VOLTAGE REGULATOR 3.3V IC

Detail [COD BAYAR DI TEMPAT] AMS1117 3.3 SOT-223 1A VOLTAGE REGULATOR 3.3V IC

P/N : ICS-0026

==========

Hasil terawangan ane, device dengan level tegangan TTL 5V bakalan punah 20 taun lagi, sekarang mulai maen pake nya 3.3V, biar irit daya gitu. Nahh kalo agan punya device yang bekerja di level tegangan 3.3V, sebut saja modul ESP8266, bluetooth, wireless, IC ini siap jadi penyuplai tegangannya. Walaupun kecil, bisa menghasilkan arus lho 1A gan.

Hati hati aja gan kalo nyolder, kecil nih barang. Salah salah ntar bisa nyolder jari sendiri lagi :D

mari di ORDER !!!!

Berikut keterangan kitab suci datasheet :

GENERAL DESCRIPTION
The AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V, decreasing at lower load currents.

On-chip trimming adjusts the reference voltage to 1.5%. Current limit is set to minimize the stress under overload conditions on both the regulator and power source circuitry. The AMS1117 devices are pin compatible with other three-terminal SCSI regulators and are offered in the low profile surface mount SOT-223 package, in the 8L SOIC package and in the TO-252 (DPAK) plastic package.

FEATURES
- Three Terminal Adjustable or Fixed Voltage 3.3V
- Output Current of 1A
- Operates Down to 1V Dropout
- Line Regulation: 0.2% Max.
- Load Regulation: 0.4% Max.
- SOT-223

APPLICATIONS
- High Efficiency Linear Regulators
- Post Regulators for Switching Supplies
- 5V to 3.3V Linear Regulator
- Battery Chargers
- Active SCSI Terminators
- Power Management for Notebook
- Battery Powered Instrumentation

Paket : 1x AMS1117 3.3 SOT-223 1A VOLTAGE REGULATOR 3.3V IC

Order yg kami terima minimal Rp.5.000 diluar ongkir, di bawah Rp.5.000 tidak akan kami proses, order diatas Rp.5.000 akan kami proses.

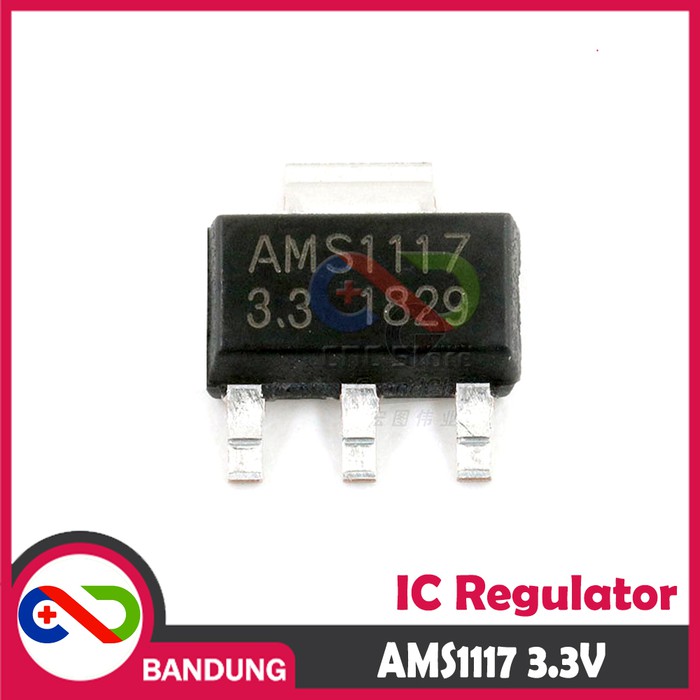

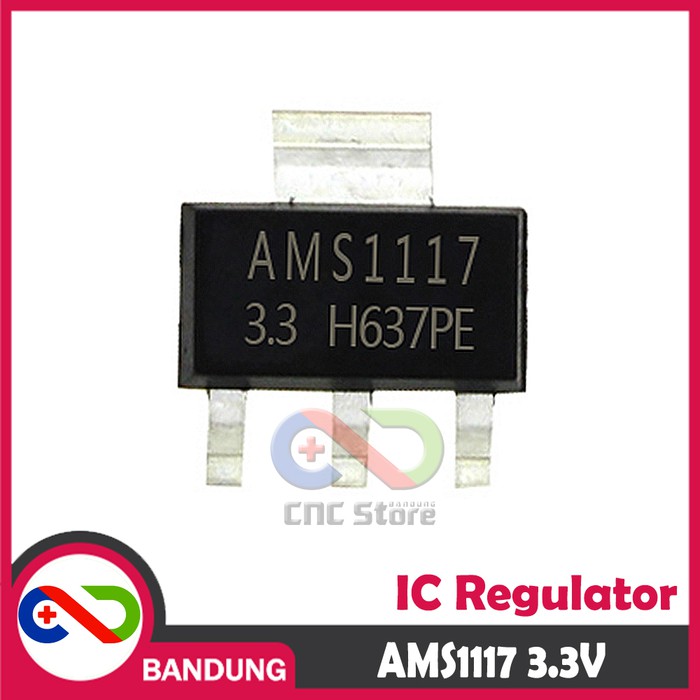

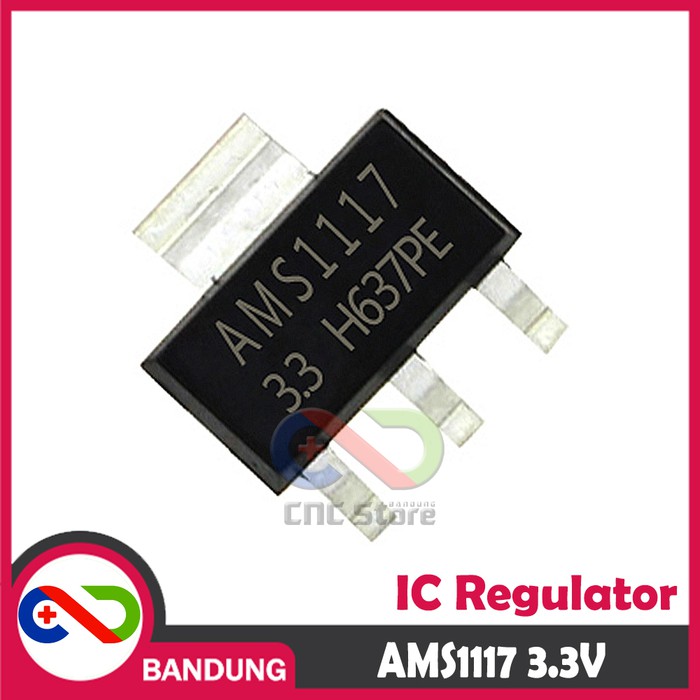

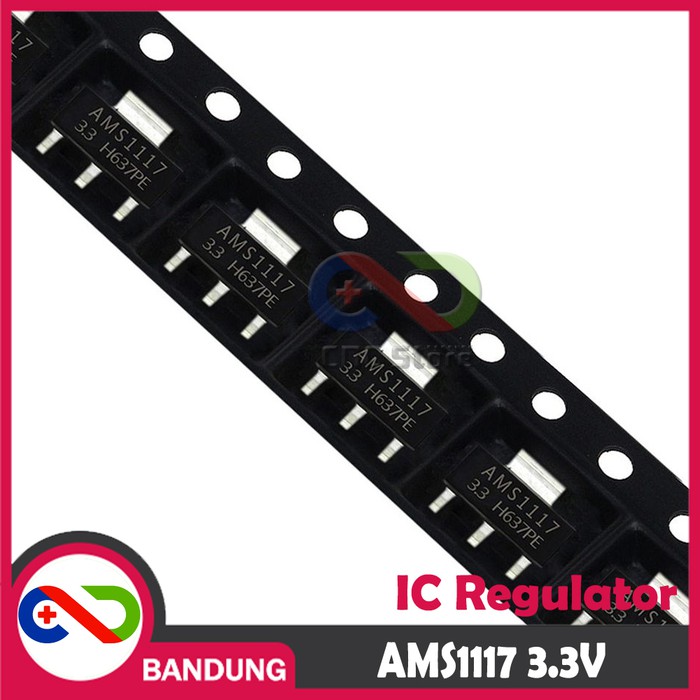

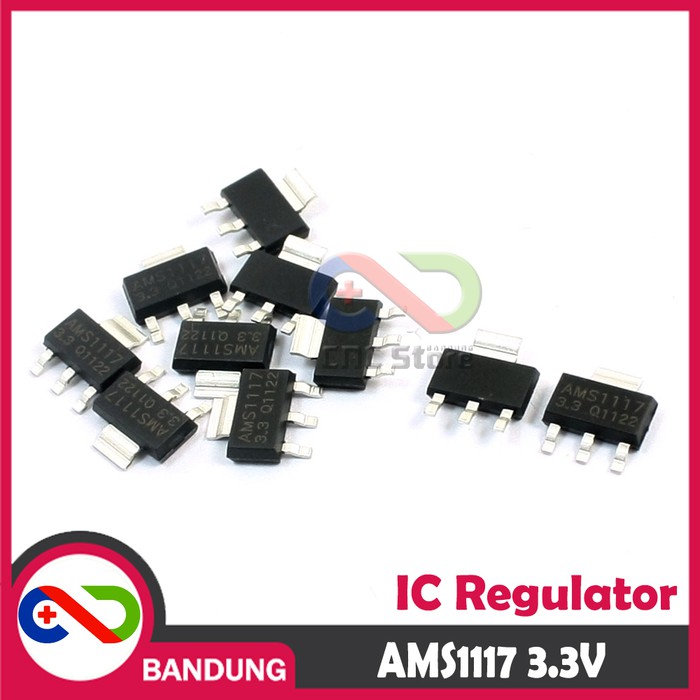

Gambar produk
