CNC TB6600 0.2 4A 9~42V CNC Controller Stepper Motor Driver Nema 17

Detail CNC TB6600 0.2 4A 9~42V CNC Controller Stepper Motor Driver Nema 17

3D Zaiku Indonesia

Product Specifications:

Power supply voltage: 9 ~ 42VDC
Max drive current: 4a
Cutting frequency: 20 KHz


Features:

PWM chopper type bipolar stepper motor driver IC

1, 9V-42V DC power supply;

2, H bridge bipolar constant phase flow drive;

3, the maximum 4.0A of the eight kinds of output current;

4, the largest 32 subdivision of the 6 models are optional;

5, input signal high speed photoelectric isolation;

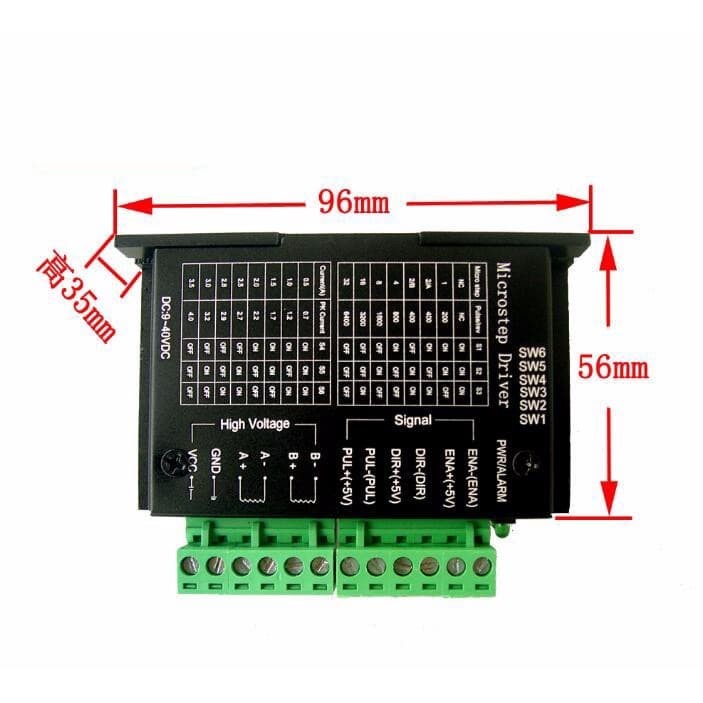

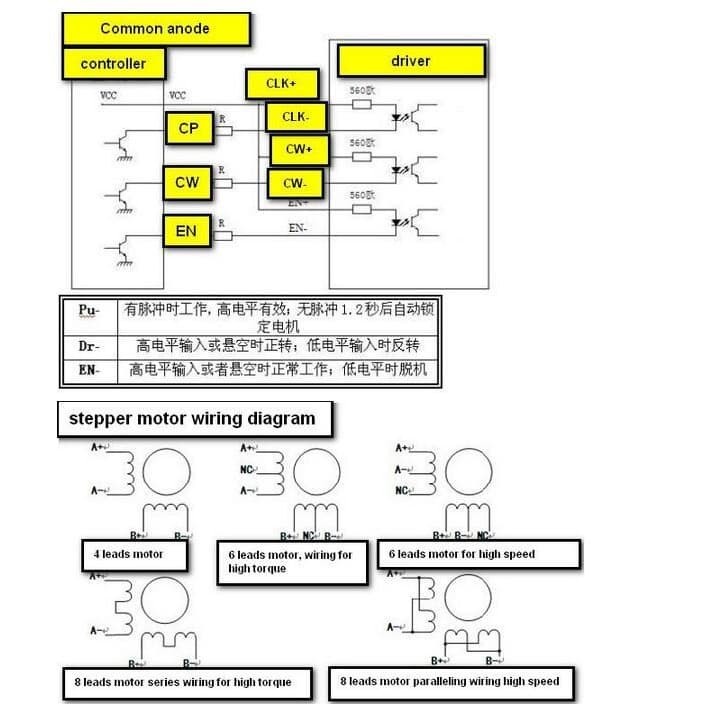

6, common-anodestandard single pulse interface;

7, offline to maintain the function;

8, semi closed enclosure can be adapted to a more stringent environment;

9, to provide energy-saving semi-automatic current lock function;

10, built-in temperature protection and over current protection.

Can control 2 phase stepper motor forward and reverse rotation,

With 1-2, W1 -2 , 2W1 -2, 4W1 -2 phase excitation mode.

Only the clock pulse signal can be driven two-phase bipolar stepper motor to achieve low vibration, high efficiency work.

[IC features]

• single chip bipolar sine microstep stepper motor driver

• the new BiCD 0.13 nm process

• up to 42V

• resistance (a +) = 0.4.

• the forward and reverse rotation control

• 5 subdivision mode options (1/1, 1/2, 1/4, 1/8, 1/16,1/32)

• output current: IOUT = 4.0A (peak, in 100ms)

• rated output: IOUT = 3.5 A

• package: HZIP25 - 1.00F

• input port internal pull-down resistor: 100 K.

• alarm output pin current:Ialert = 1mA

• monitoring output pin (MO): Imo= 1mA

• with reset and enable pin

• with standby function.

Break through the traditional, single power supply

• built in overheating protection (TSD) circuit

Undervoltage protection, built-in (UVLO) circuit

• built-in overcurrent detection (ISD), circuit

Ready Stock

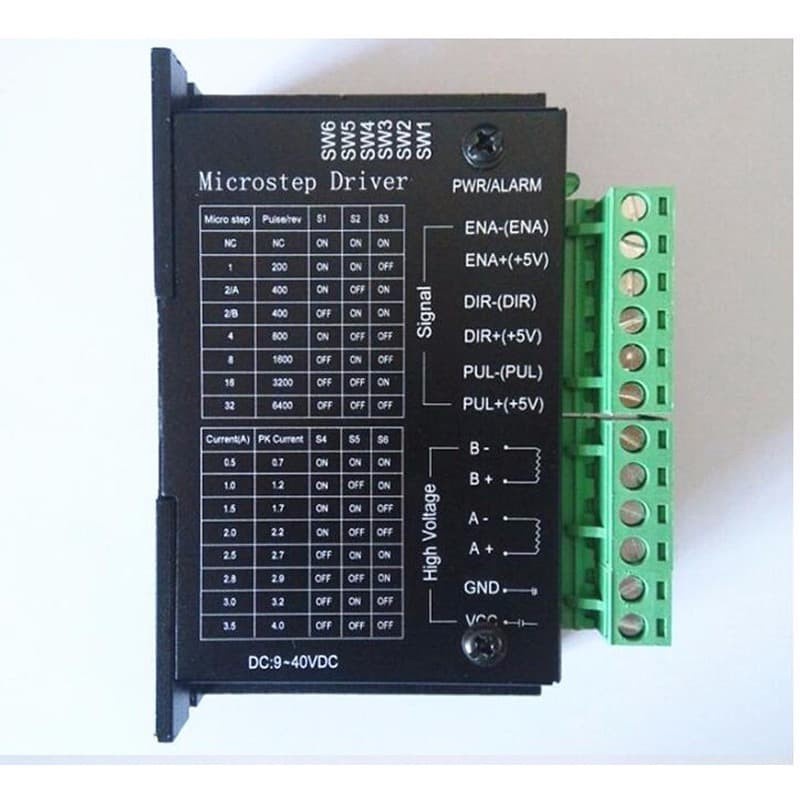

Gambar produk
