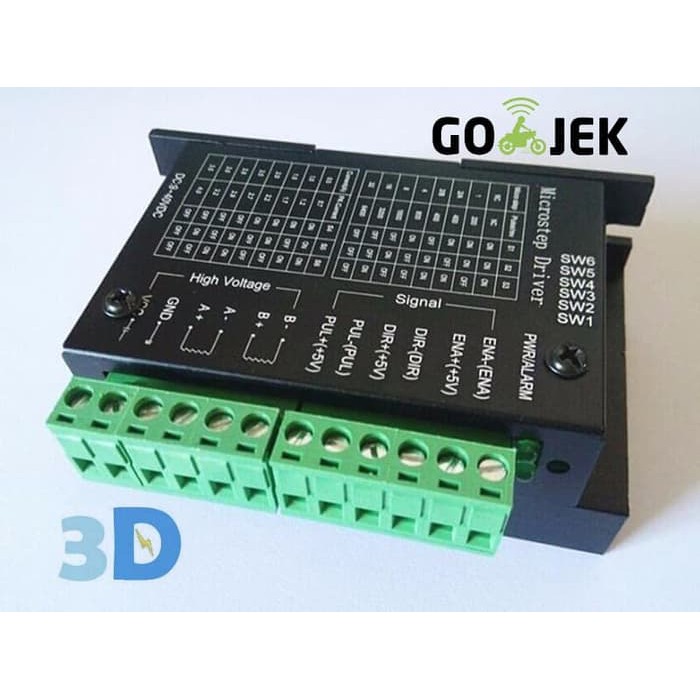

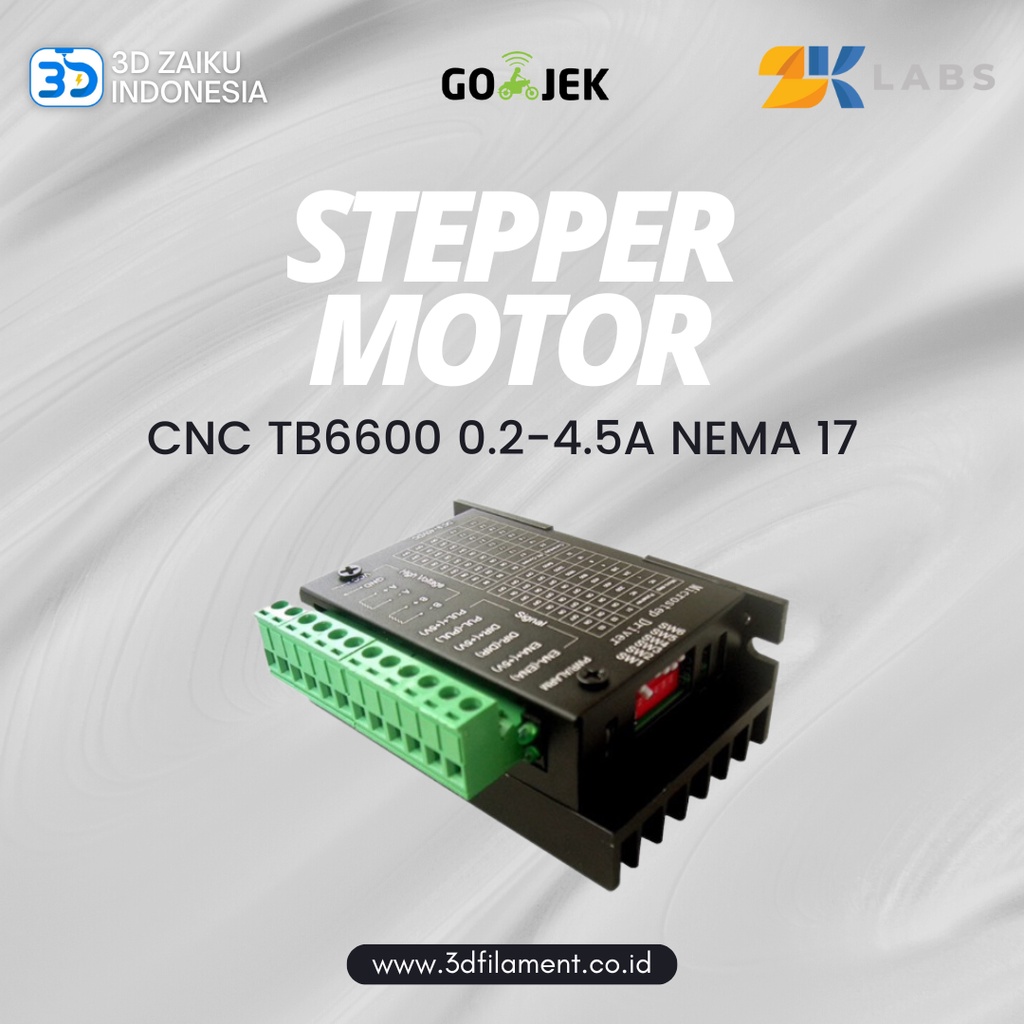

CNC TB6600 0.2-4.5A CNC Controller Stepper Motor Driver Nema 17

Detail CNC TB6600 0.2-4.5A CNC Controller Stepper Motor Driver Nema 17

3D Zaiku Indonesia

TB6600 42/57/86 NEMA 17, NEMA 23, NEMA 34 motor driver, 4.5A 40 V 1 axis stepping motor cnc engraving machine


Merek : Zaiku TB66-45
Tipe : TB6600 0.2-4.5A Motor Driver
Garansi sparepart 6 bulan untuk semua merek Zaiku


Product Specifications:

2 phase motor can control the forward and reverse rotation,

With 1-2, w1-2, 2W1-2, 4W1-2 phase excitation mode.

Only the clock pulse signal can be driven two-phase bipolar stepper motors to achieve low vibration, high working efficiency.

Feature:

'' Single Chip sinus bipolar microstep stepper motor driver

'' New bicd 0:13 nm process

'' Up to 50 V pressure

'' Resistance (a +) = 0.4.

'' Controls forward and reverse rotation

'' 5 subdivisions mode options (1/1, 1/2, 1/4, 1/8, 1/16, 1/32)

'' The output current: Iout = 5.0a (peak, in the 100 ms)

'' Rated output: Iout = 4.5 A

'' Package: HZIP25-1.00F

'' Input Port internal pull down resistor: 100 k.

'' Alarm pin output current: ialert = 1mA

'' monitoring output pin (mo): imo = 1mA

'' With reset and enable pin

'' With the standby function.

Break through the traditional, single power supply

'' Built-in overheating protection (TSD) circuit

Undervoltage protection, built-in (UVLO) circuit

'' Built-in over current detection (ISD), circuit

Ready Stock

Gambar produk
