Detail CNC SHIELD V3 ENGRAVING 3D PRINTER A4988 EXPANSION BOARD

Mohon dibaca terlebih dahulu!
- Sebaiknya tanyakan stok terlebih dahulu
- Pengiriman via Gosend atau Grab sebaiknya dikomunikasikan terlebih dahulu
- Biasakan baca catatan toko dan deskripsi
- Kunjungi toko kami dan cek barang-barang keren lainnya

Description :
-MAIN FUNCTION: The extension board can be used for engraving machine or 3D printer driver
-PWM SPINDLE AND DIRECTION PIN: PWM spindle and direction pin,
4 shaft support (X, Y, Z, A - you can copy X, Y, Z or use pin D12 and D13 customize firmware perform complete shaft 4)
-A4988 Stepper Motor Driver Board is a breakout board for Allegro's
A4988 DMOS Micro stepping Driver with Translator and Overcurrent Protection

Specification:
-Operating voltage: 5V
-Digital I/O pins: 14 (including 6 with PWM capability)
-I-I/O pin output current: 40mA max
-3.3V output current: 150mA max
-Flash memory: 32 kB (0.5kB ud by bootloader - included)
-Static RAM (SRAM): 2 kB
-EEPROM: 1 kB
-Clock speed: 16MHz

Kelengkapan:
-1x V3 Engraver Shield 3D Printer CNC Expansion Board

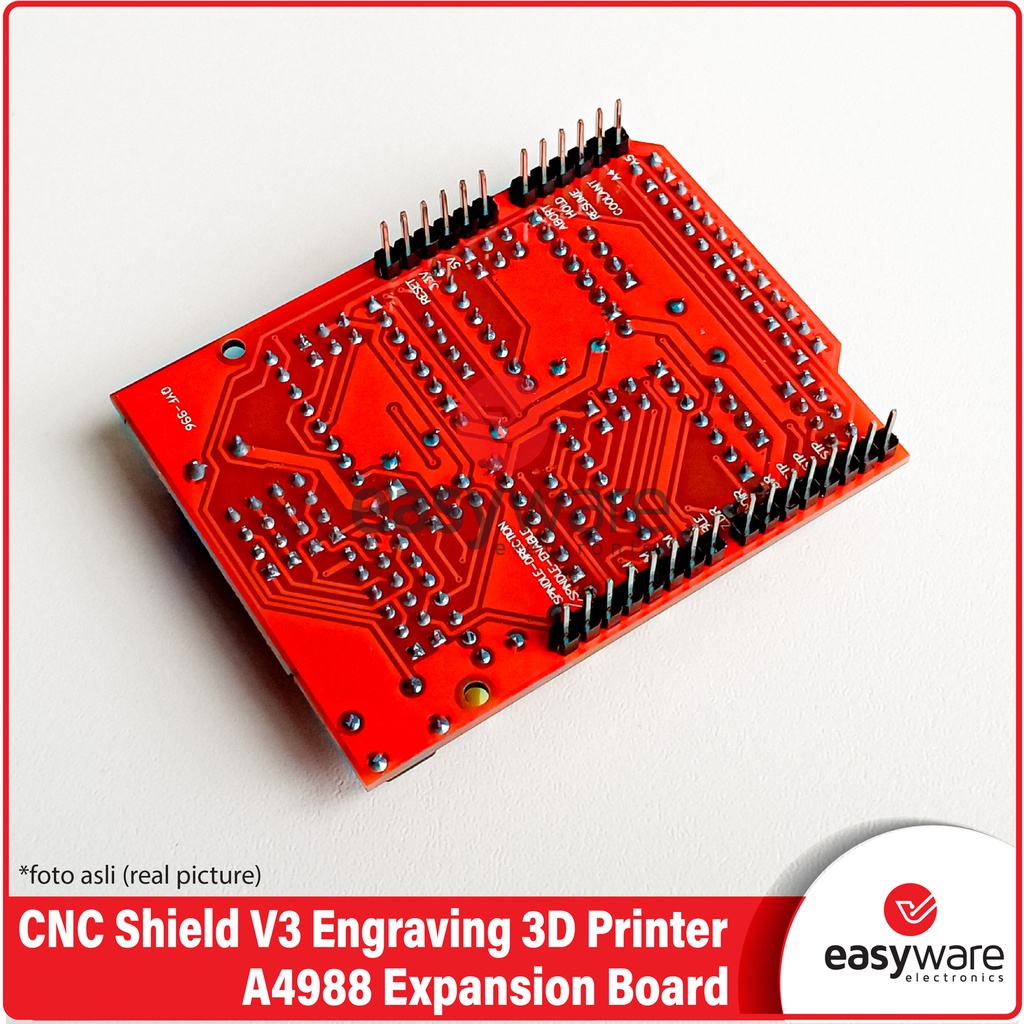

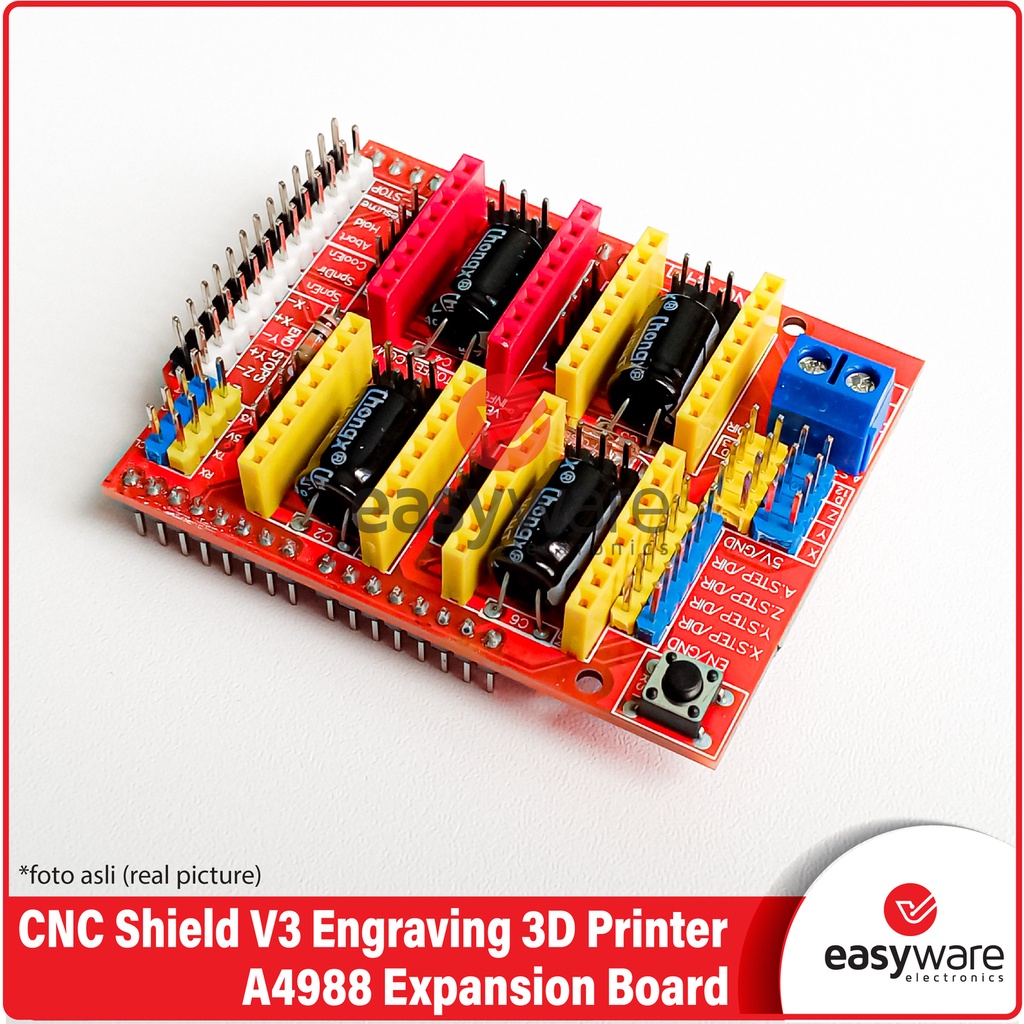

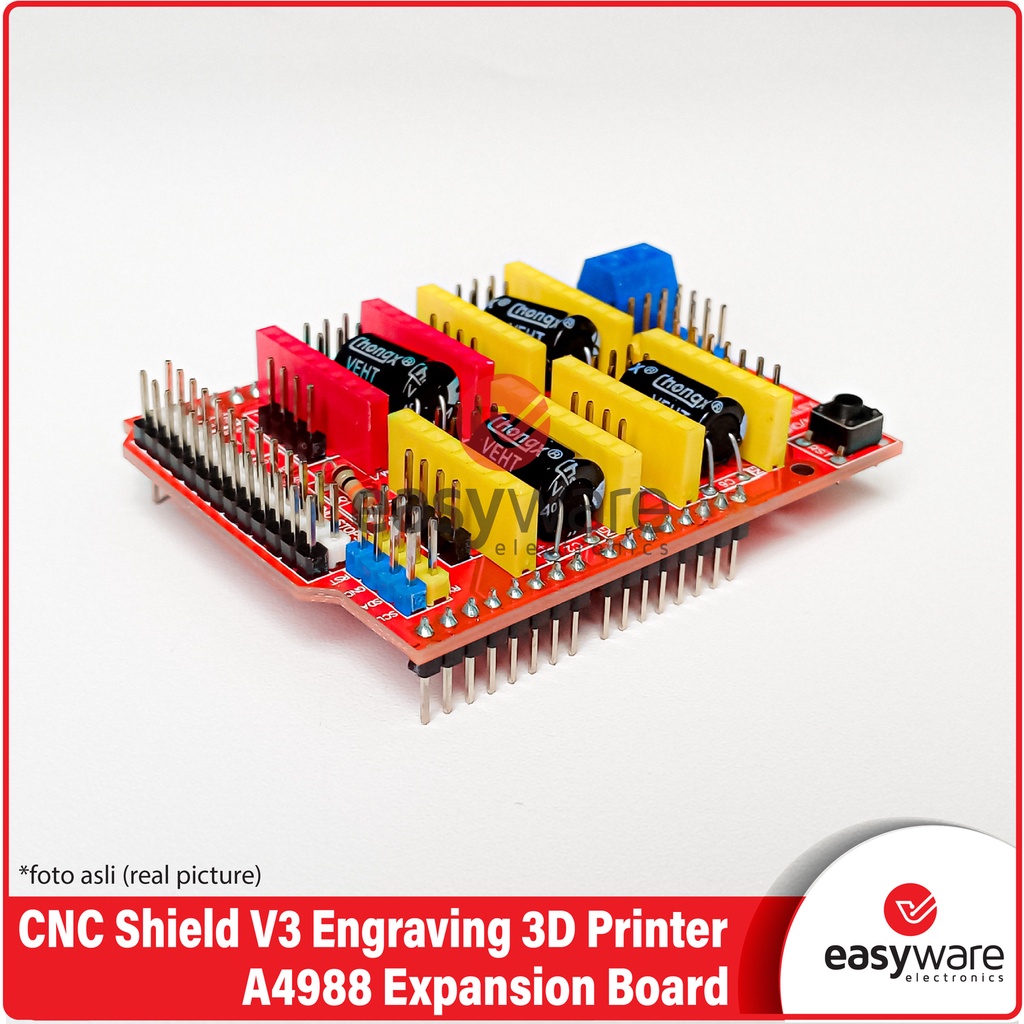

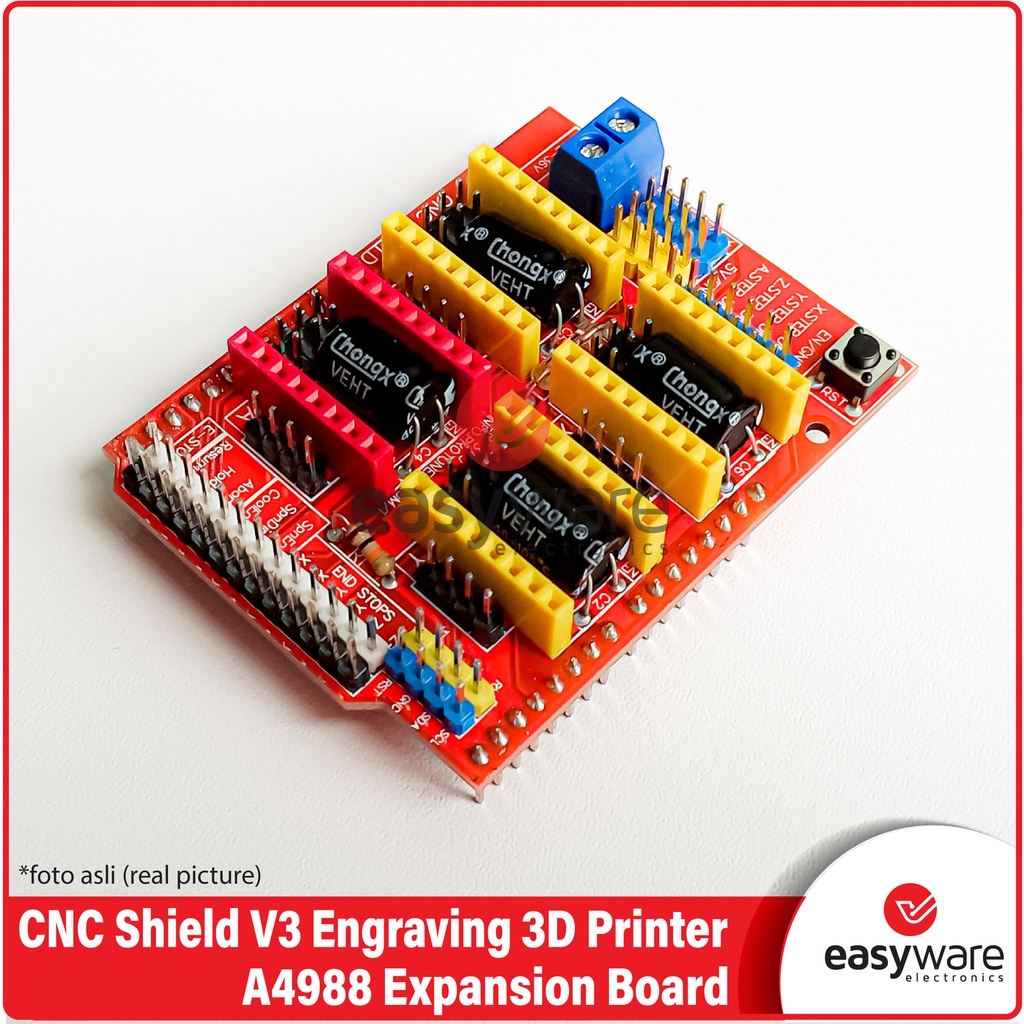

Gambar produk
