CNC Router 2020B PCB Milling 200*200*70 mm with Spindle

Detail CNC Router 2020B PCB Milling 200*200*70 mm with Spindle

3D Zaiku Indonesia

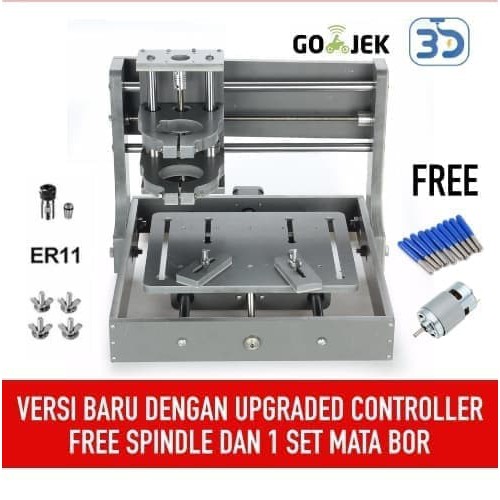

PCB Milling Machine CNC 2020B DIY CNC Wood Carving Mini Engraving Machine PVC Mill Engraver Support MACH3 System

SKU : S-2020B
Garansi Full Sparepart 1 Tahun untuk semua CNC dijual oleh 3D Zaiku


Feature
Merek : ZKLabs
Tipe : 2020B
Spindle motor: 300W
ER11: 3.175mm
Stepper motor: NEMA17 Stepper motor
Current of Driver:1.68A
Lead screw: M8 threaded stainless steel Lead screw triangle
Spindle, 300W high-speed (10,000 rpm)

The transformer is 50W

Parameter
MAX. X axis travel:200mm
MAX. Y axis travel:200 mm
MAX. Z aixs travel:70mm
Size:600*700*500 mm
Resolution ratio:0.0125 mm
Table structure:10mm PCB
MAX. moving speed:4000 mm/min
Control:3000 mm/min
Main shaft power:300w
Main shaft speed:6000-12000 rpm/min
Tool DIA. range:0.3-3.175 mm,4mm,6mm
Voltage:AC 110V/220V (BOTH OK )
Drive model:Stepper
Instruction:G-code
System:Window 2000/XP


Perakitan tidak susah ada panduan rakit nya
Include juga Free Software GRBL Controller

Bisa dipakai untuk plastic, wood, acrylic, pvc, pcb, wood or the like material.

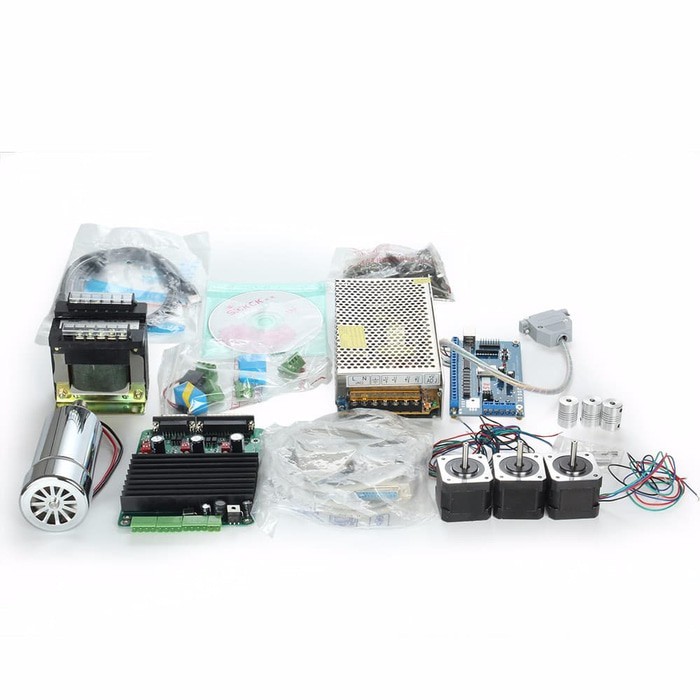

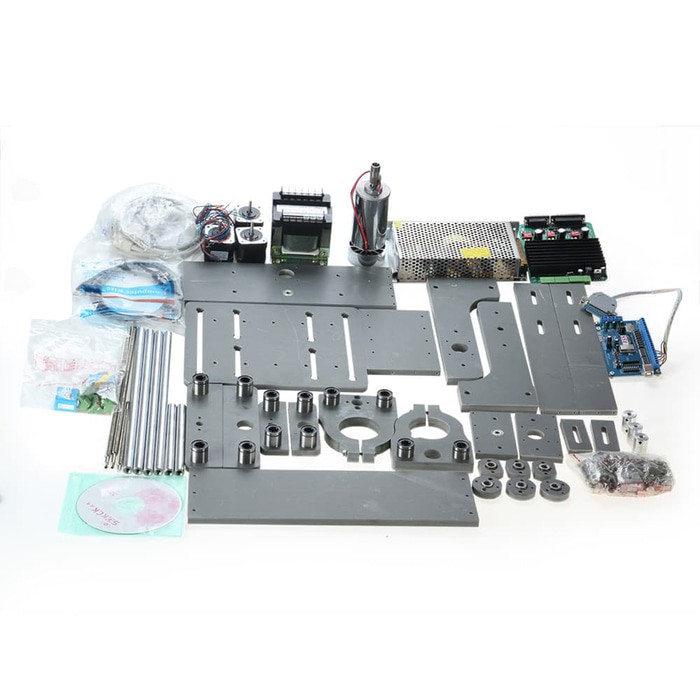

Package Introduced :
- 1pcs 2020B engraving machine
- 1 FREE mesin Spindle
- 1 Set Tensioner
- Stepper motor
- Information CD
- 3-axis driver board+Parallel port lines
- Switching Power Supply
- Transformer and rectifier bridge
- 2pcs milling cutter
- USB interface board+Data line

Garansi Full Sparepart 1 Tahun


Barang Ready Stok

Gambar produk
