Cleaver Inno V7 / Fiber Cleaver Inno view7 Fiber Optik Original

Detail Cleaver Inno V7 / Fiber Cleaver Inno view7 Fiber Optik Original

Cleaver Inno View 7
Alat potong fiber
produk dijamin 100 % Original
Garansi 6 bulan ( garansi tidak termasuk blade dan keteledoran dalam pemakaian )

Product Attributes
1. High precision cleaving for ribbon fiber cable as well as 250μm, 900μm,
2. 3.0mm and flat cable with universal holder.
3. Durable blade lifetime over 48,000 fiber cleaves.

FEATURES :

Compatible with all VIEW series fusion splicer
Available for single and ribbon cleaving up to 12 fibers
Easy and simple 2 step operation
Automatic fiber shard collector (optional)


SPECIFICATIONS
Type : Single & ribbon fiber cable cleaver
Cladding Diameter : 125μm
Cleaved Length : Single fiber: 8~20mm / Ribbon fiber: 10mm
Applicable Fiber Cable: Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable
Ribbon fiber: 2 to 12 ribbon fiber cable
Typical Cleaved Angle : Less than 0.5 Degrees
Typical Blade Life Span: Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights)
Operation Steps : 2 Steps
Reclaim Function : Blade push back
Holder : Single: Universal holder
Ribbon: Replaceable holder

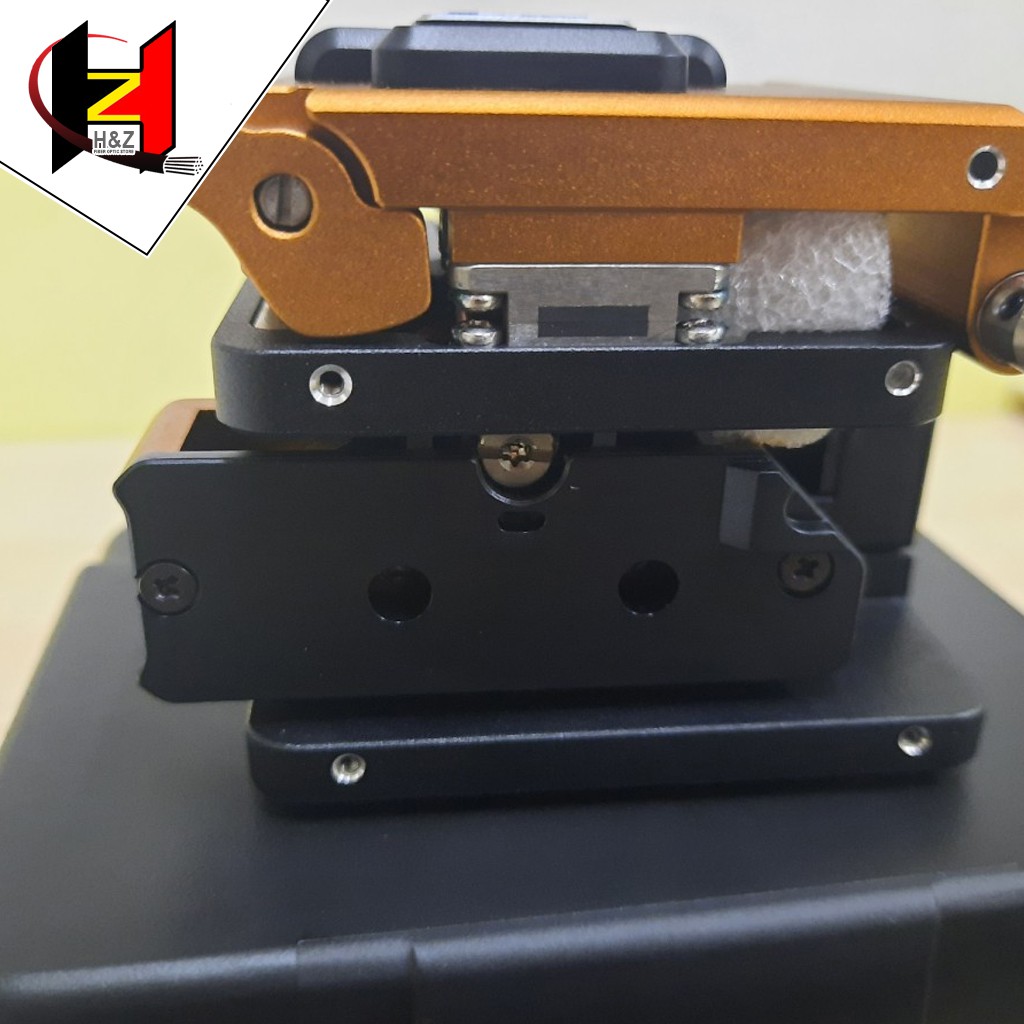

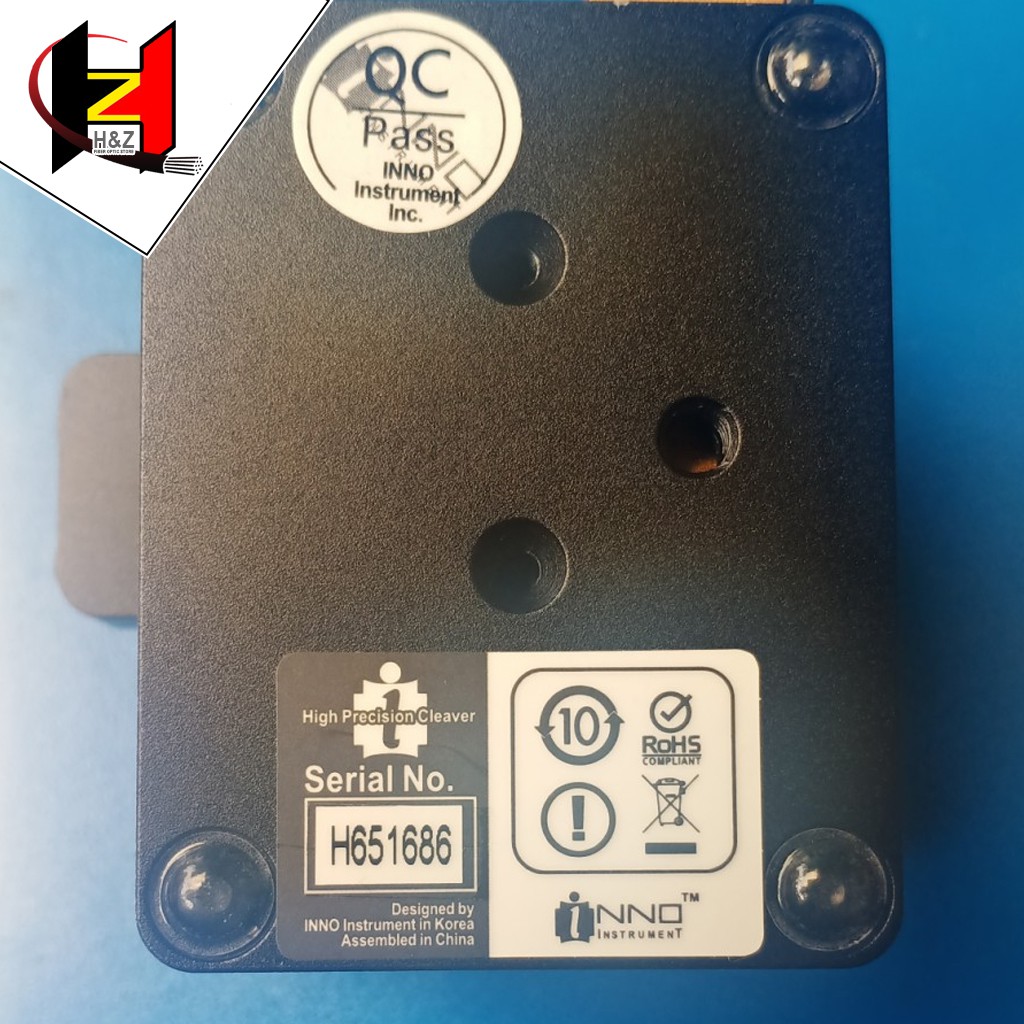

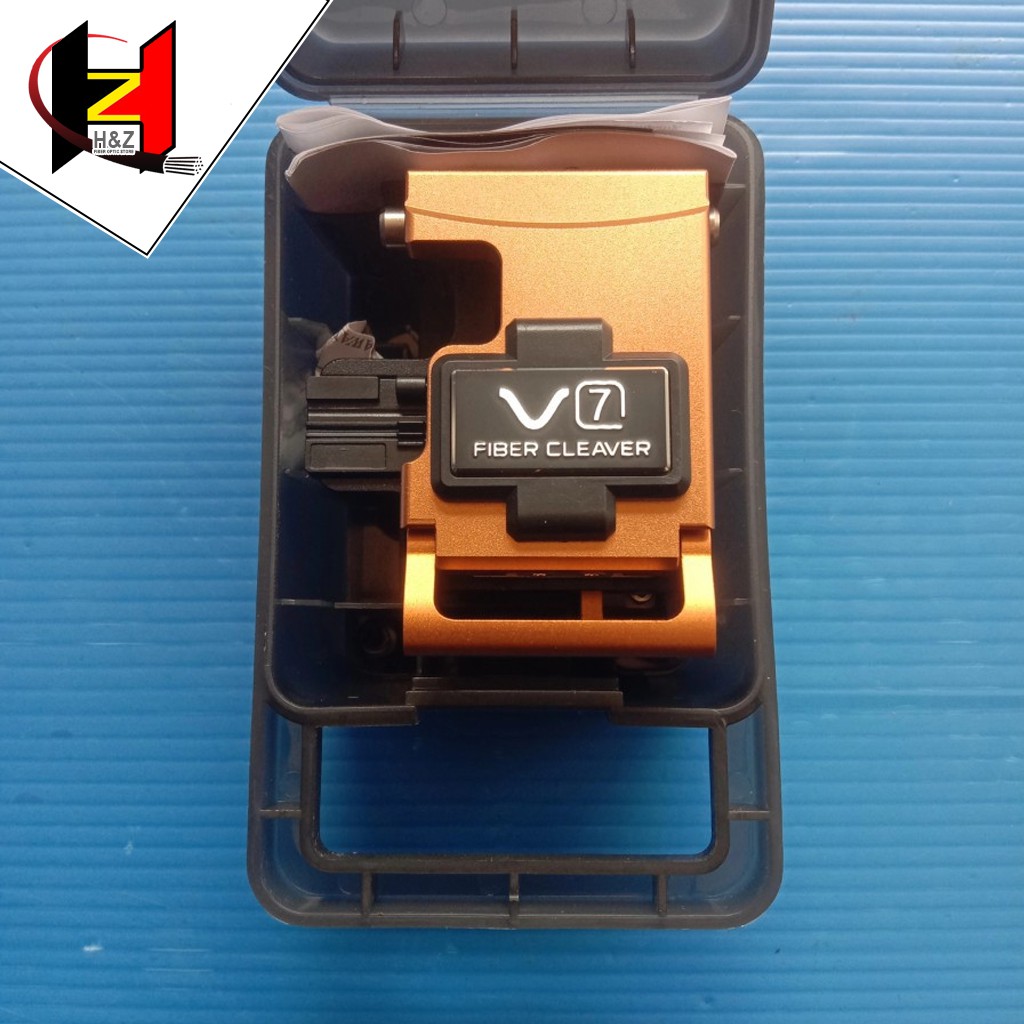

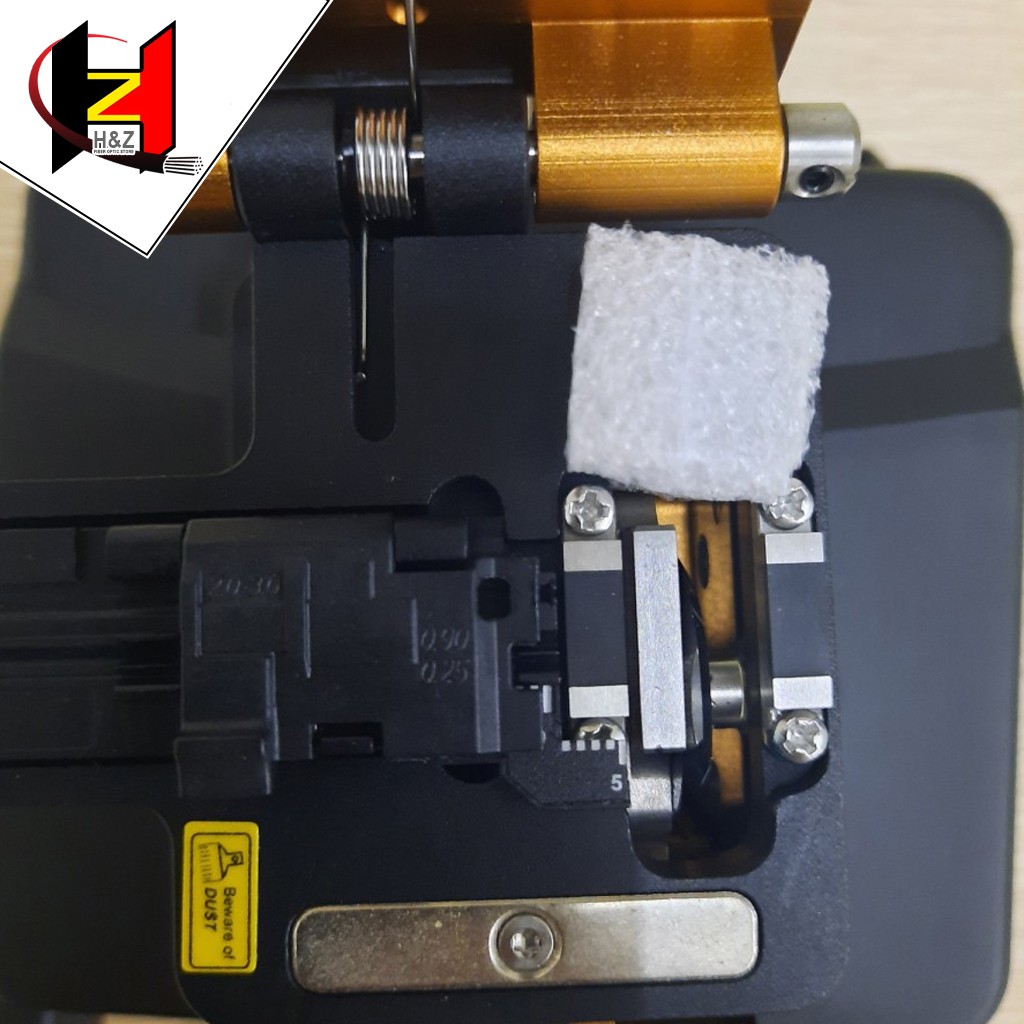

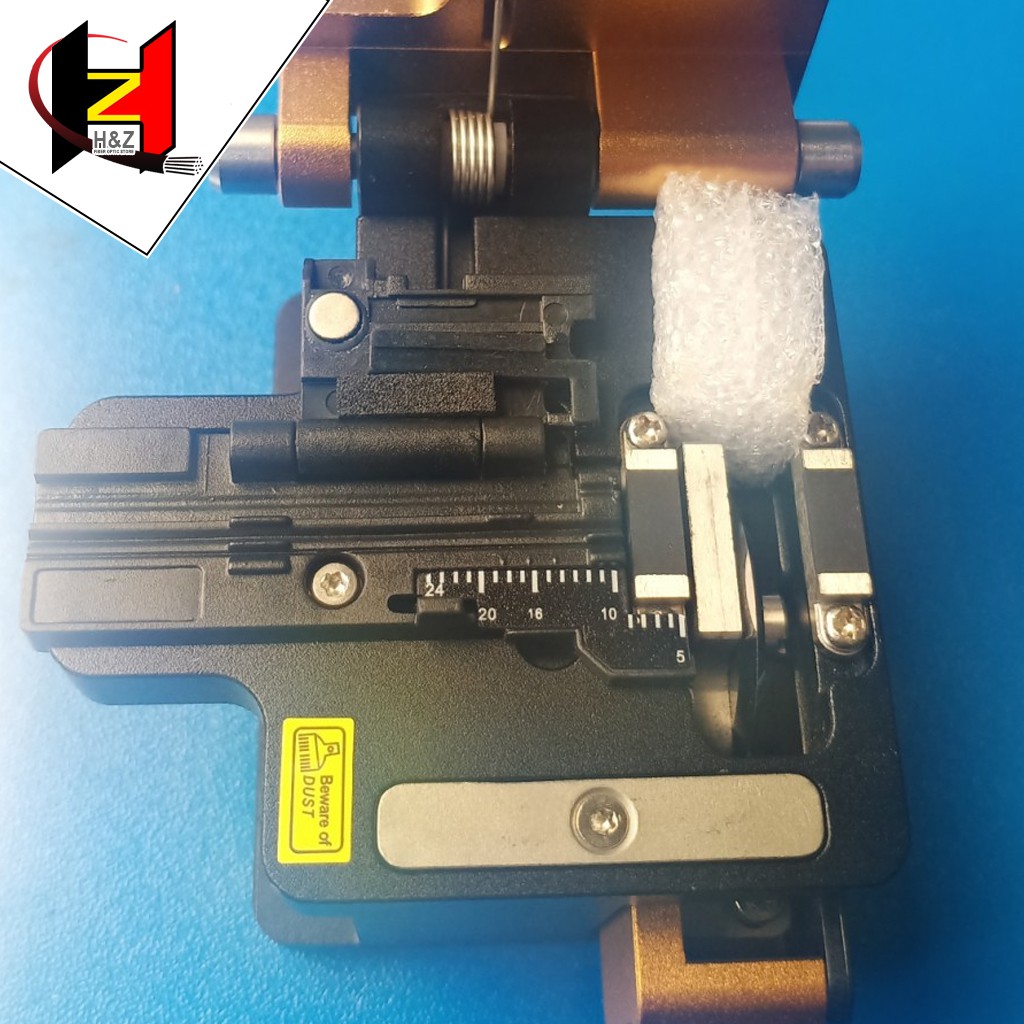

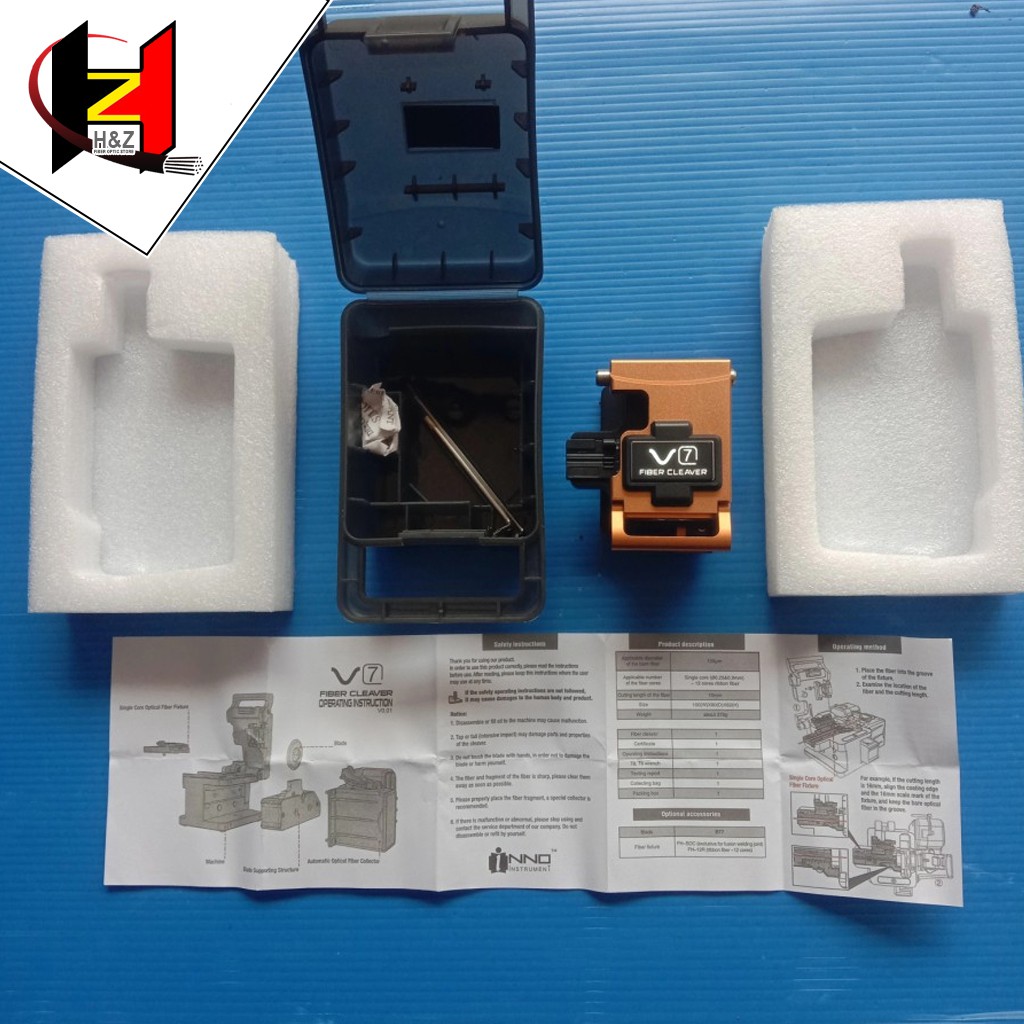

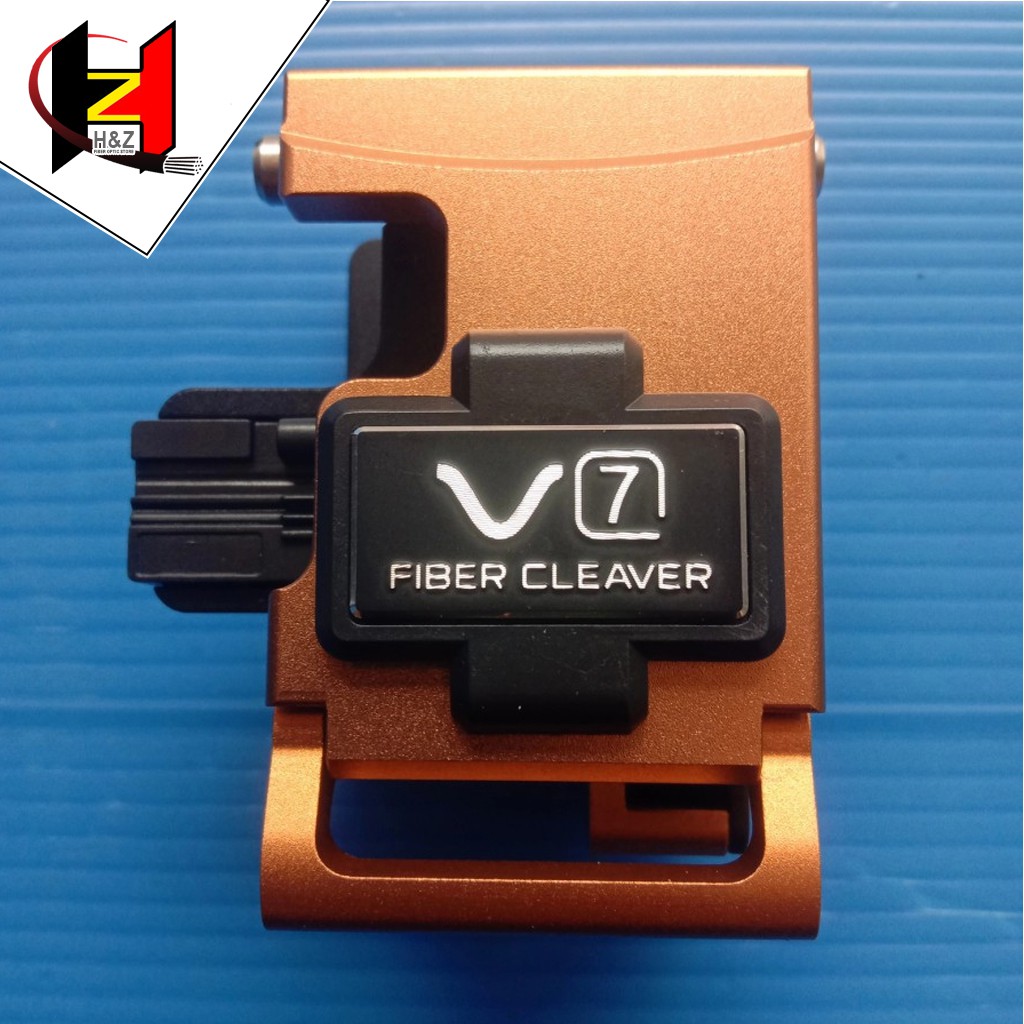

Gambar produk
