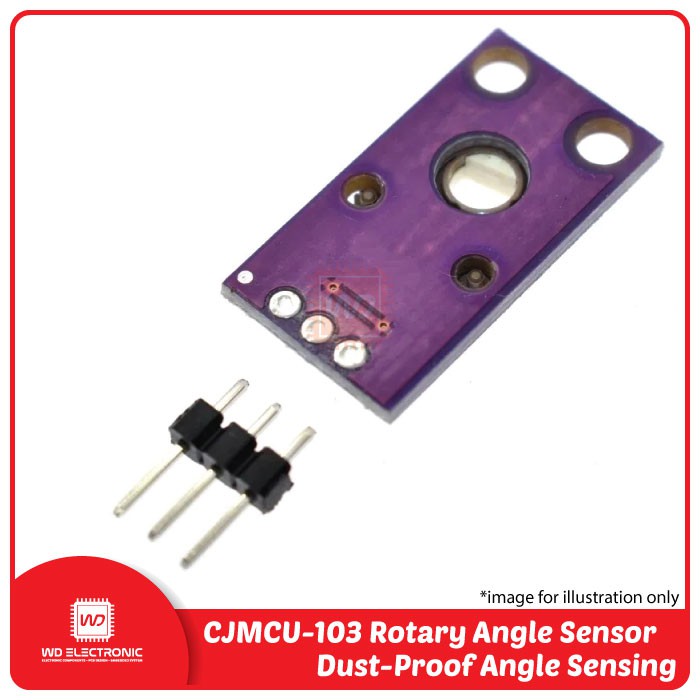

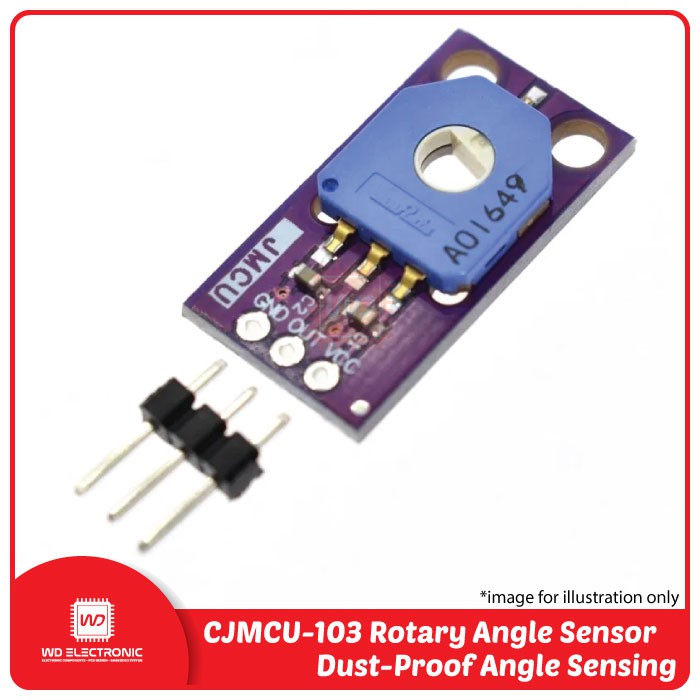

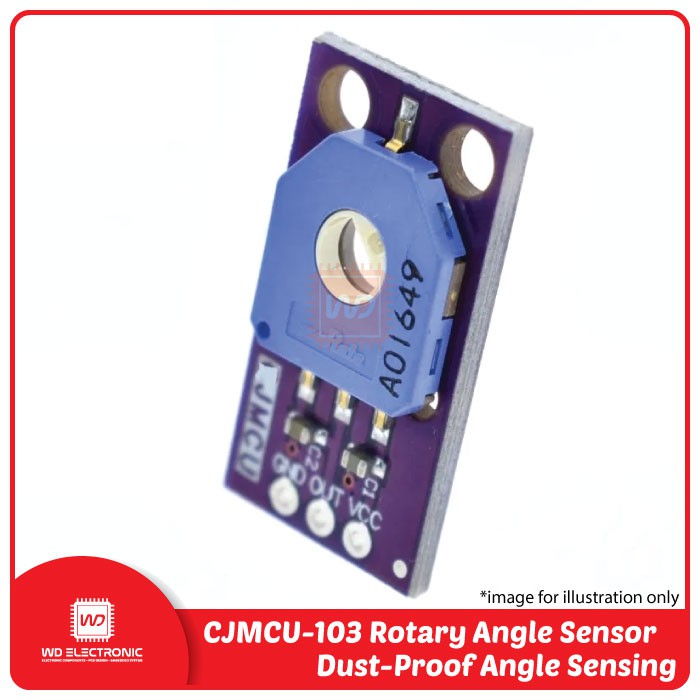

Detail CJMCU-103 Rotary Angle Sensor SMD Dust-Proof Angle Sensing

Hi #RekanEasyWare ...
EasyWare Part#: EP000586

Spesifications :
- Family: Position Sensors - Angle, Linear Position Measuring
- Series: SV01
- For Measuring: Rotary Position
- Technology: Resistive
- Rotation Angle - Electrical, Mechanical: 0° ~ 333.3°, Continuous
- Output: Analog Voltage Output
- Actuator Type: Hole for Shaft
- Linearity: ±2%
- Resistance (Ohms): 10k
- Resistance Tolerance: ±30%
- Mounting Type: Surface Mount
- Termination Style: SMD (SMT) Tab
- Operating Temperature: -40°C ~ 85°C

Package :
- CJMCU-103 rotation angle sensor

Gambar produk

CJMCU-103 Rotary Angle Sensor SMD Dust-Proof Angle Sensing
CJMCU-103 Rotary Angle Sensor SMD Dust-Proof Angle Sensing
CJMCU-103 Rotary Angle Sensor SMD Dust-Proof Angle Sensing
CJMCU-103 Rotary Angle Sensor SMD Dust-Proof Angle Sensing
CJMCU-103 Rotary Angle Sensor SMD Dust-Proof Angle Sensing
CJMCU-103 Rotary Angle Sensor SMD Dust-Proof Angle Sensing
