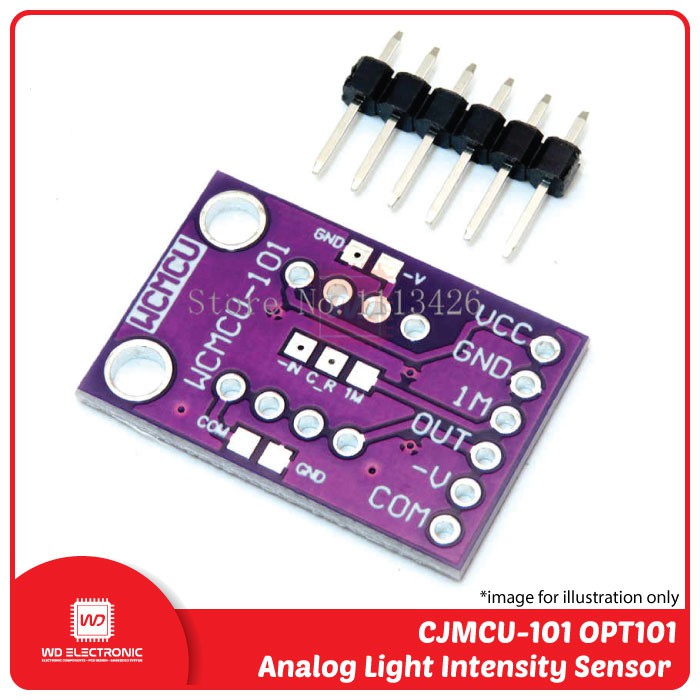

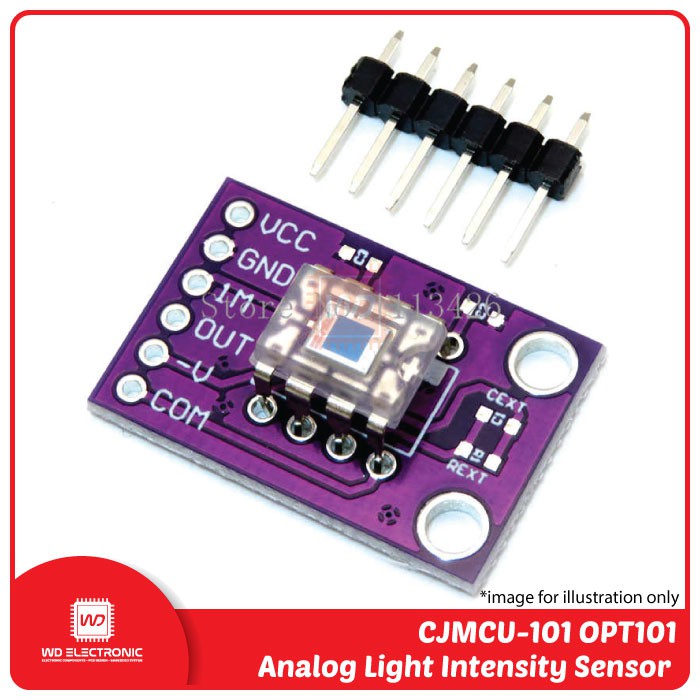

CJMCU-101 WCMCU-101 OPT101 Analog Light Intensity Sensor module

Detail CJMCU-101 WCMCU-101 OPT101 Analog Light Intensity Sensor module

Hi #RekanEasyWare ...
EasyWare Part#: EP000268

CJMCU-101 is an integrated photodiode and transimpedance amplifier. For putting integrated photodiode and transimpedance amplifiers in a single chip, it can prevent common problems in discrete designs. Such as leakage current error, noise and gain peaks caused by stray capacitance. One advantage of the sensor is that the amplifier is single or dual power supply design, which can working on battery equipment. When the photodiode works in the photoconductive mode, it has a good linearity and low dark current. The sensor can be used on smoke detectors, currency changers, barcode scanners. It also can be applied on medical instrumentation, laboratory instrumentation and photographic analyzers.

Spesifications :
- Single supply: 2.7-36v
- Size of photodiode: 2.29mm x 2.29mm
- Internal feedback resistor: 1MΩ
- Low quiescent current: 120uA
- High responsivity: 0.45A/W
- Working temperature: 0-70℃

Package :
- 1x OPT101 Light Intensity Sensor

Gambar produk
