Charger Cas Charge Aki Accu Mobil Motor 12V / 24V 120Ah 150Ah

Detail Charger Cas Charge Aki Accu Mobil Motor 12V / 24V 120Ah 150Ah

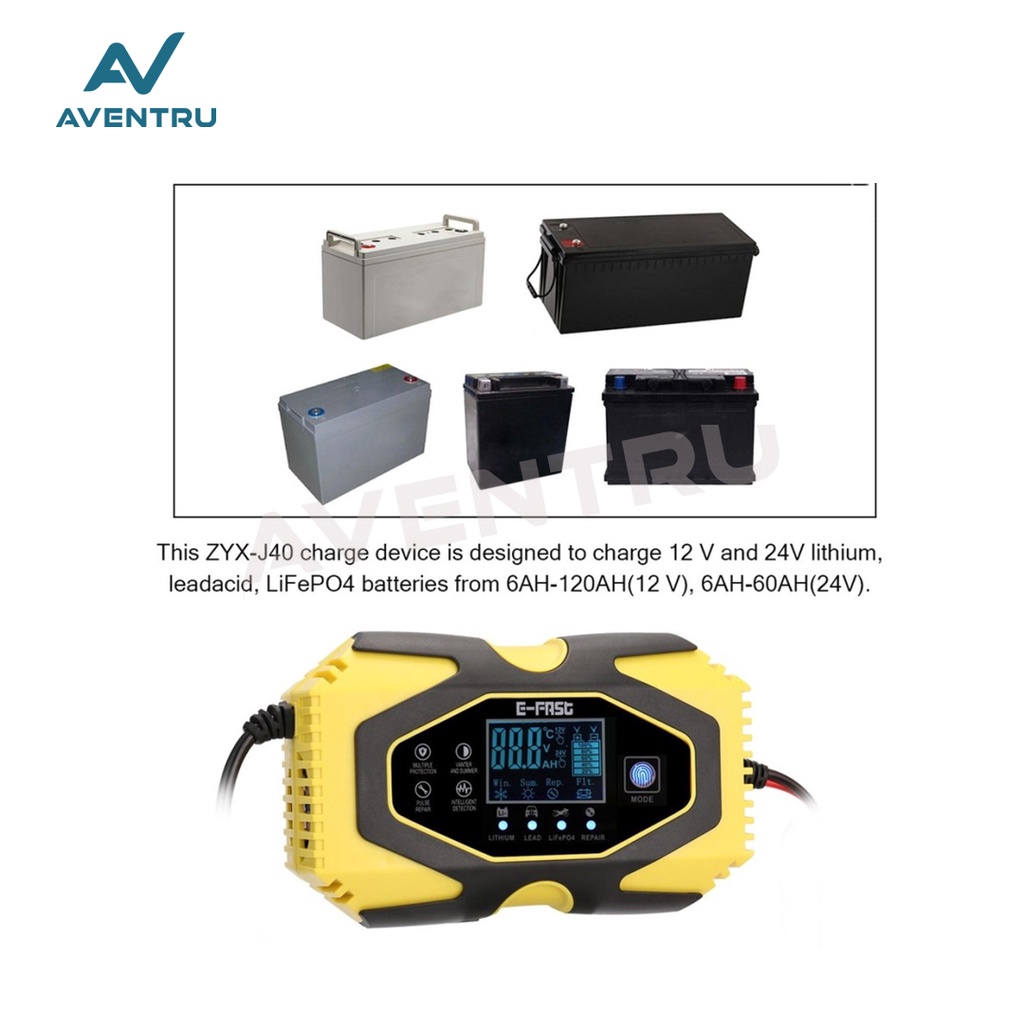

This ZYX-J40 charge device is designed to charge 12 V and 24V lithium, lead, LiFePO4 batteries from 6AH-120AH12 V, 6AH-60AH24V.

7-stage microprocessor controlled charging process provides the finest possible application and enables efficient battery charging, and the efficiency is ＞85%. Capable of recharging severely discharged or heavily sulfated battery.
The outer is made of ABS material, insulation, flame retardant, high temperature. Freeze-resistant soft copper core line, with full coverage alligator clip, solid and practical.

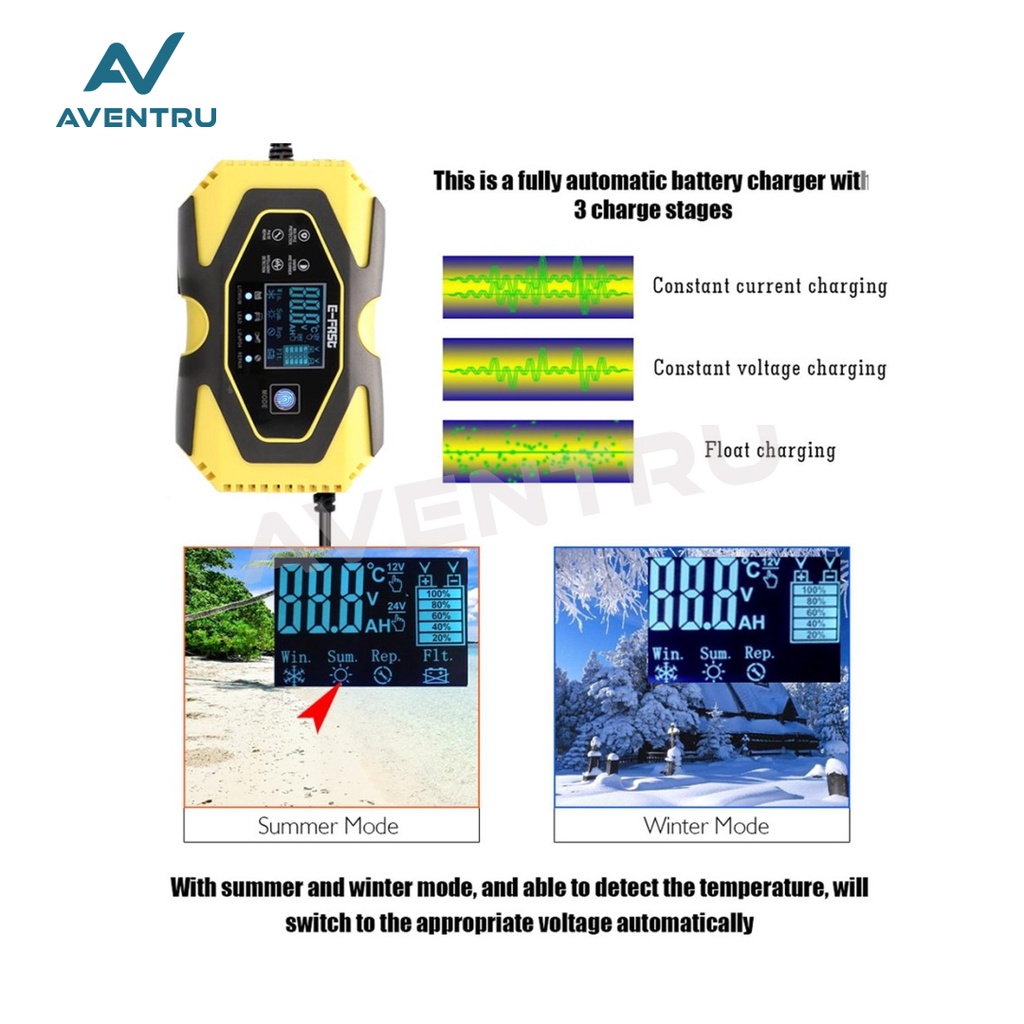

Stable output, high conversion rate, energy saving, large capacity, etc.. Charging voltage adapts to temperature to prevents over or under battery charging.
The c-harger can be used to eck if the battery is seriously damaged. Equipped with LCD display, shows the c-harger inside temperature, c-harge voltage, c-harge current, desulphation mode, test mode, repairing mode, battery capacity and etc..

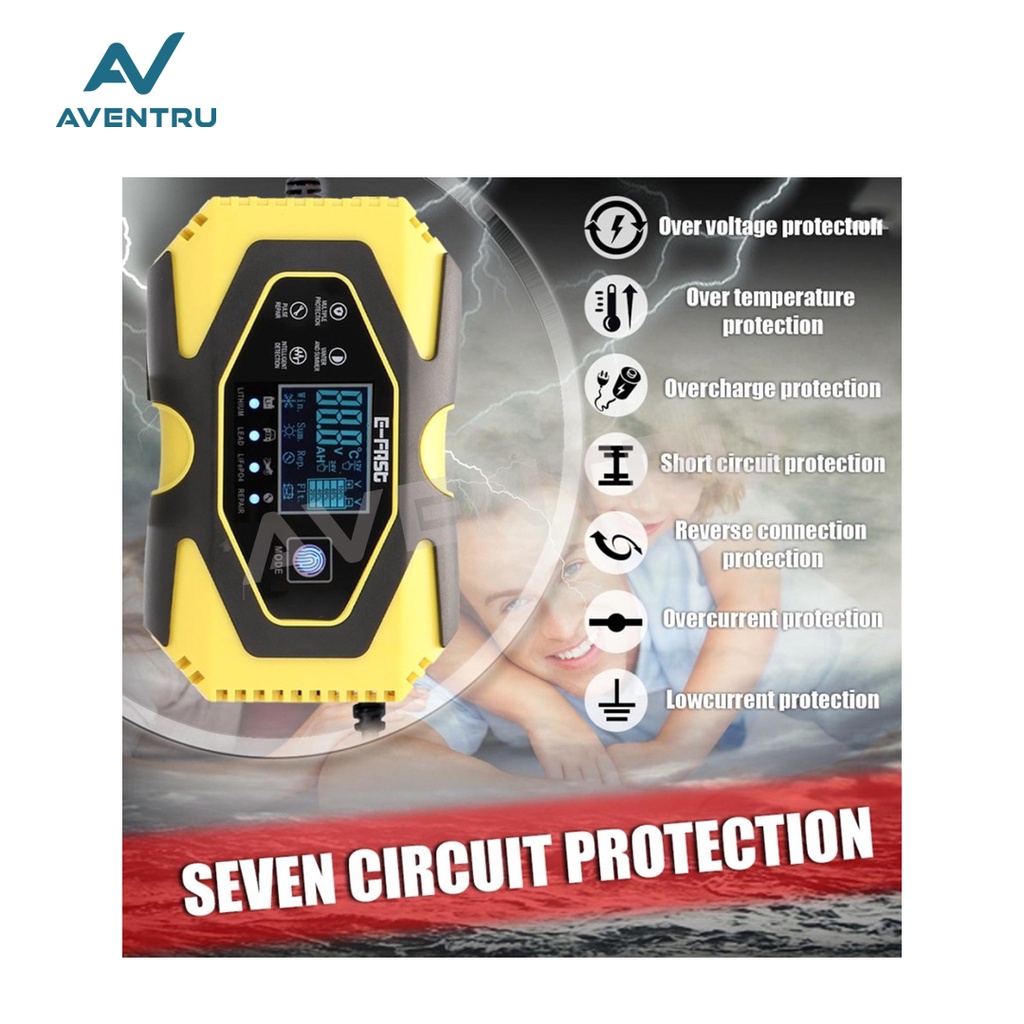

Reverse polarity protections, short circuit protections, overCHarge protections, parks free contact. Ease of use, clear c-harging status display. Full microprocessor controlled. Does not over c-harger your battery even if it is kept connected in any mode


Specifications:
Name: Battery Charger
Material: ABS
Color: Yellow
Model: ZYX-J40 AC
Input: 100-240 V, 50-60Hz
Output voltage: 12 V/24 V
Auto Output current: 12 V, 6A & 24V, 3A
Output volt nolead: 13.8V/27.6V
Minimum s-tart volt: ＞2.0V
Input power with load: Max.110W
Input power no load: 2.8W

------ ZYX-J30 24V 150A

Input voltage: 110-240V AC, 50-60Hz
Input power: AC140W
Rated output: 12V 8A, 24V 4A
Output voltage: DC 13.8V /37.6V
Output current: DC 12V8A/24V/4A
Minimum start voltage: 2.0V
Dimensi 170 × 98 × 58 mm
Battery range: 6-150Ah
Thermal protect: 65 Degree C +- 5 Degree C
Efficiency: App. 85%

Feature:
Touch switch mode technology: Yes
Polarity protection: Yes
Output short protection: Yes
Non battery link protection: Yes
Over temperature protection: Yes
Short circuit protection: Yes
Overcurrent protection: Yes
Overheat protection: Yes
Fire protection: Yes
Low voltage protection: Yes
Over voltage protection: Yes
Reverse protection: Yes
Electric shock protection: Yes
Cooling: Fan
