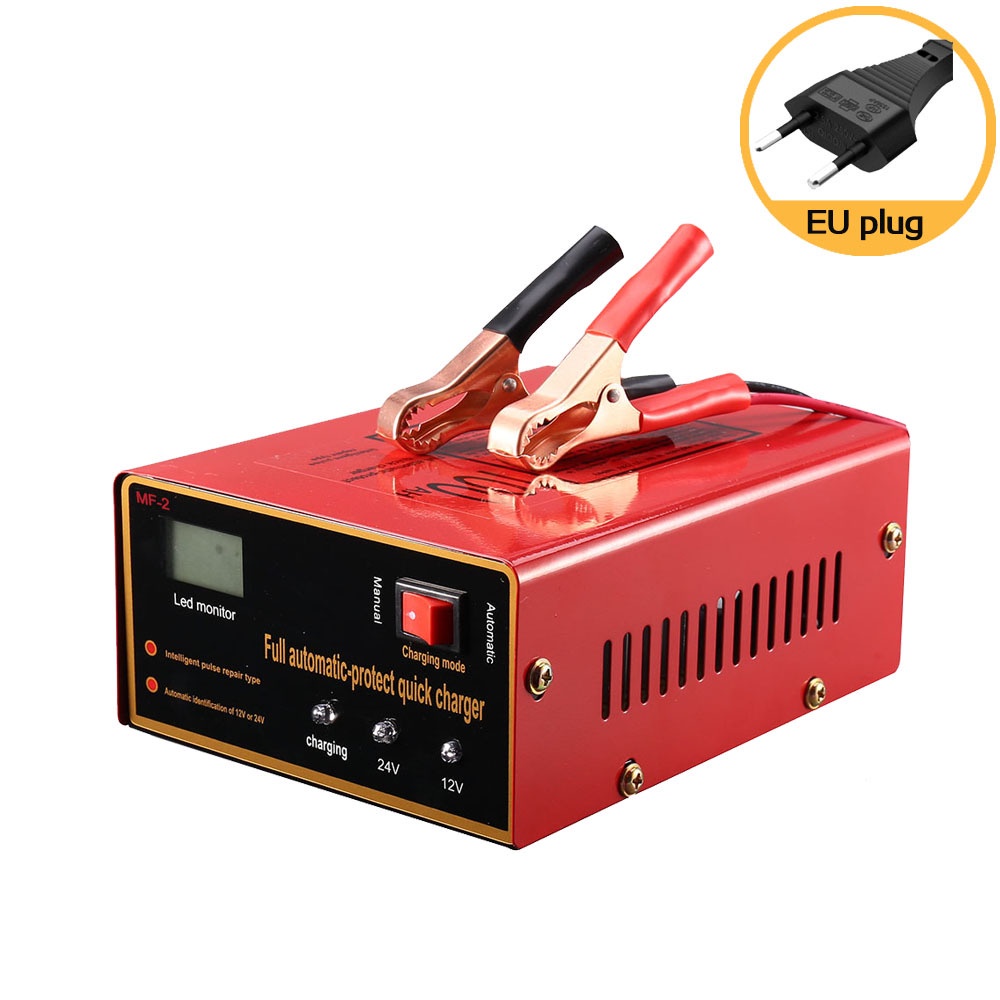

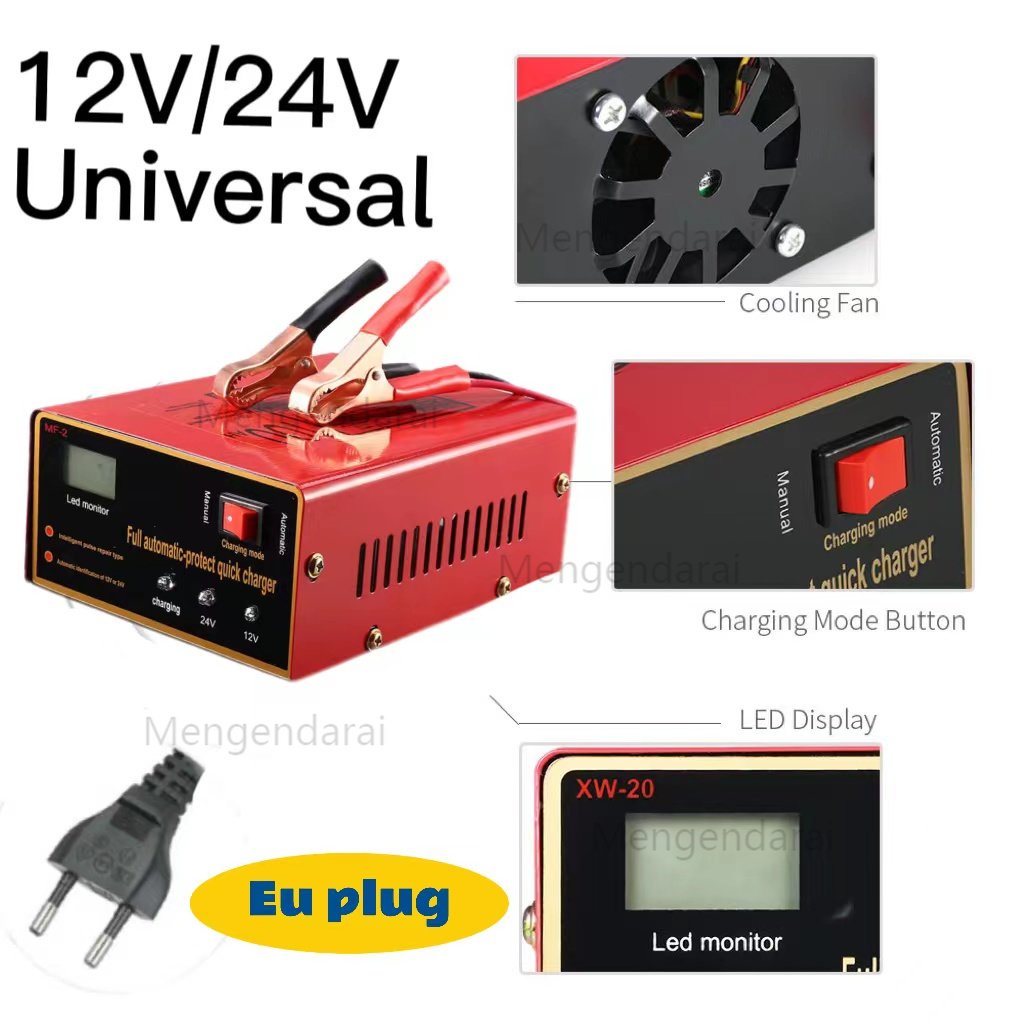

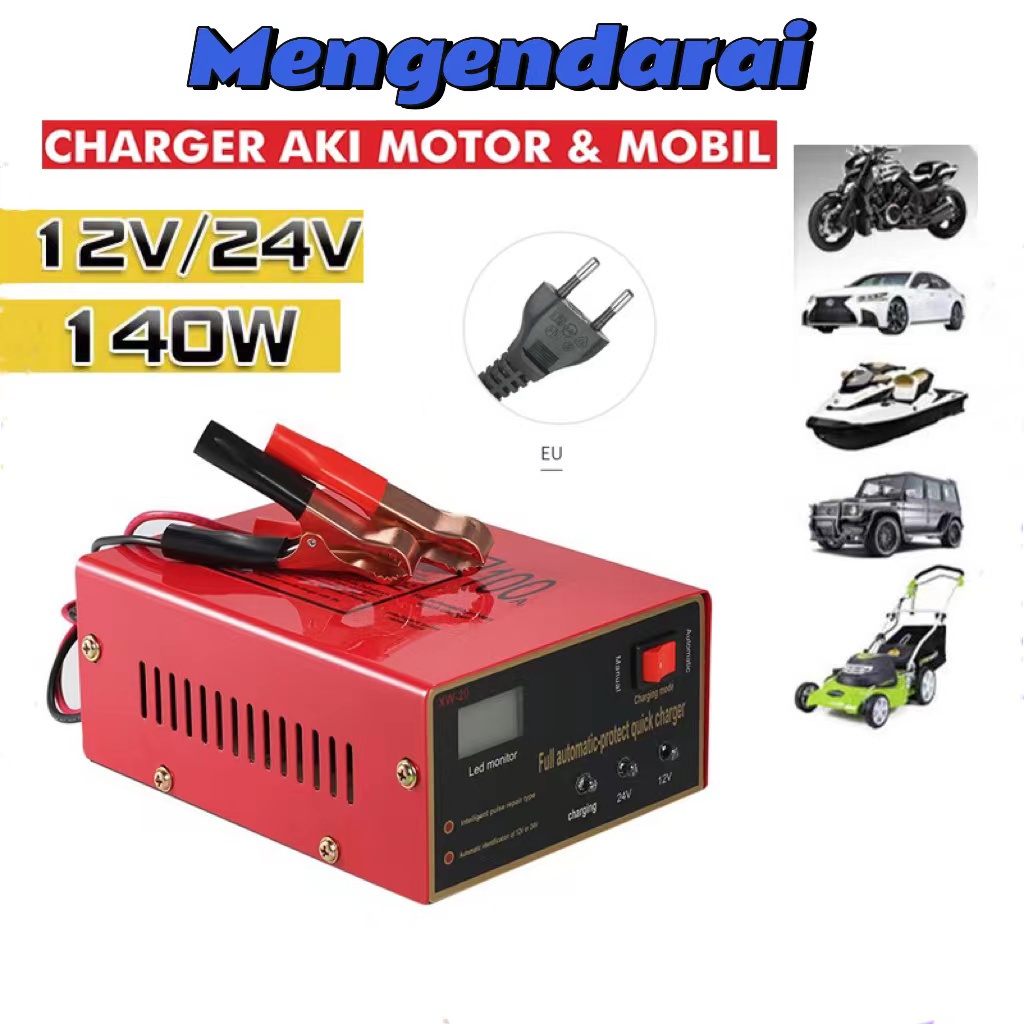

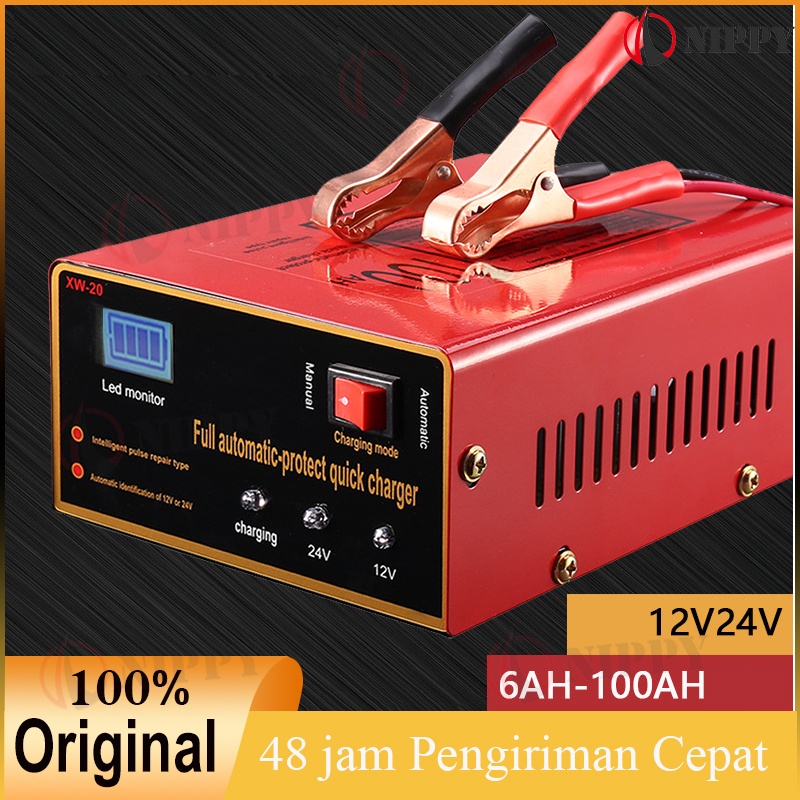

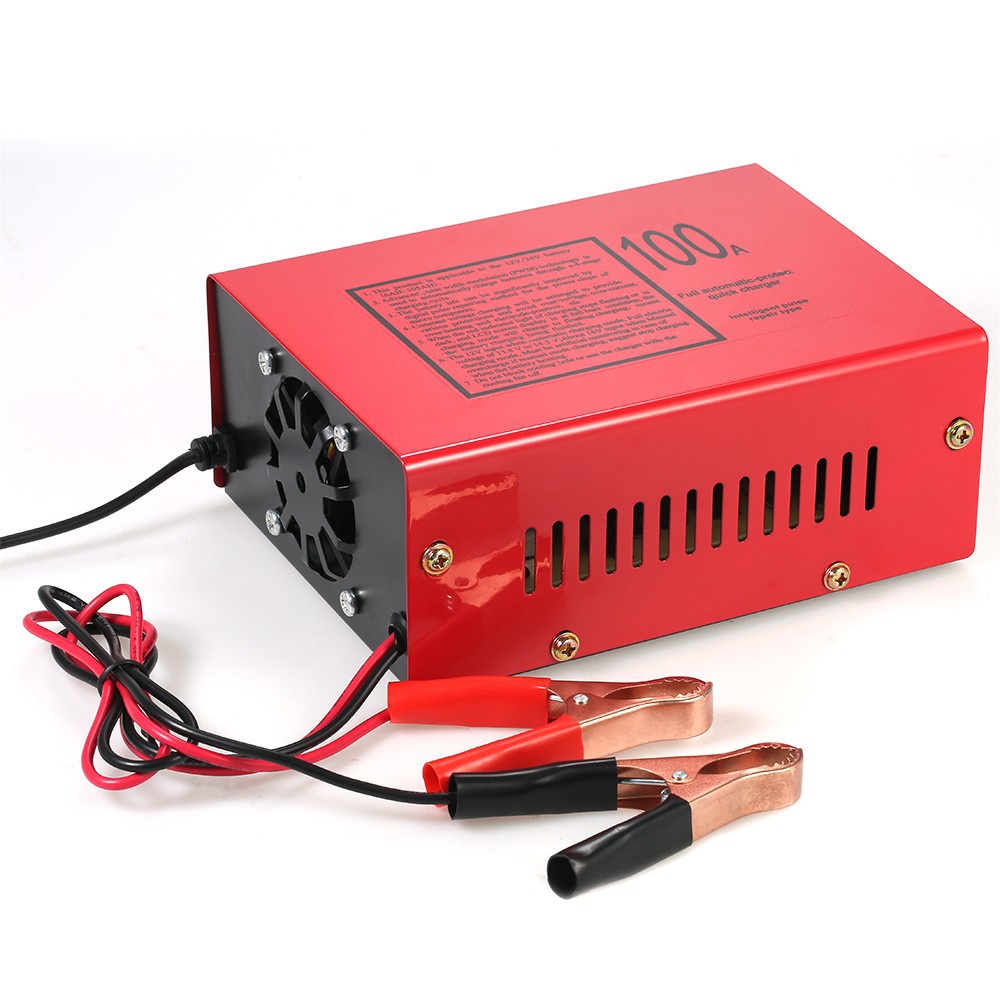

Charger Aki Motor Dan Mobil Otomatis Accu Kering Dan Basah Lead Acid Battery Charger Auto Charger Aki/Accu Mobil Motor

Detail Charger Aki Motor Dan Mobil Otomatis Accu Kering Dan Basah Lead Acid Battery Charger Auto Charger Aki/Accu Mobil Motor

Application

It's compatible with allkinds of 12V /24V battery:Lead-Acid Battery; Maintenance-free battery; Dry battery,Water battery; Gel battery; Solar battery;e., WET, GEL, ARLA etc.
Charge & Maintain: scooter, motorcycle, car, SUV, small truck, tractor boat and any vehicle batteries of 12V/24V, 6-100Ah. (Not suitable for lithium batteries)

Features:
1. Applicable for 12V or 24V battery.the peak current is 10A.
2. Automatic & manual charging modes, more reliable and secure.
3. Indicator lights show the status as batteries are charged and maintained.

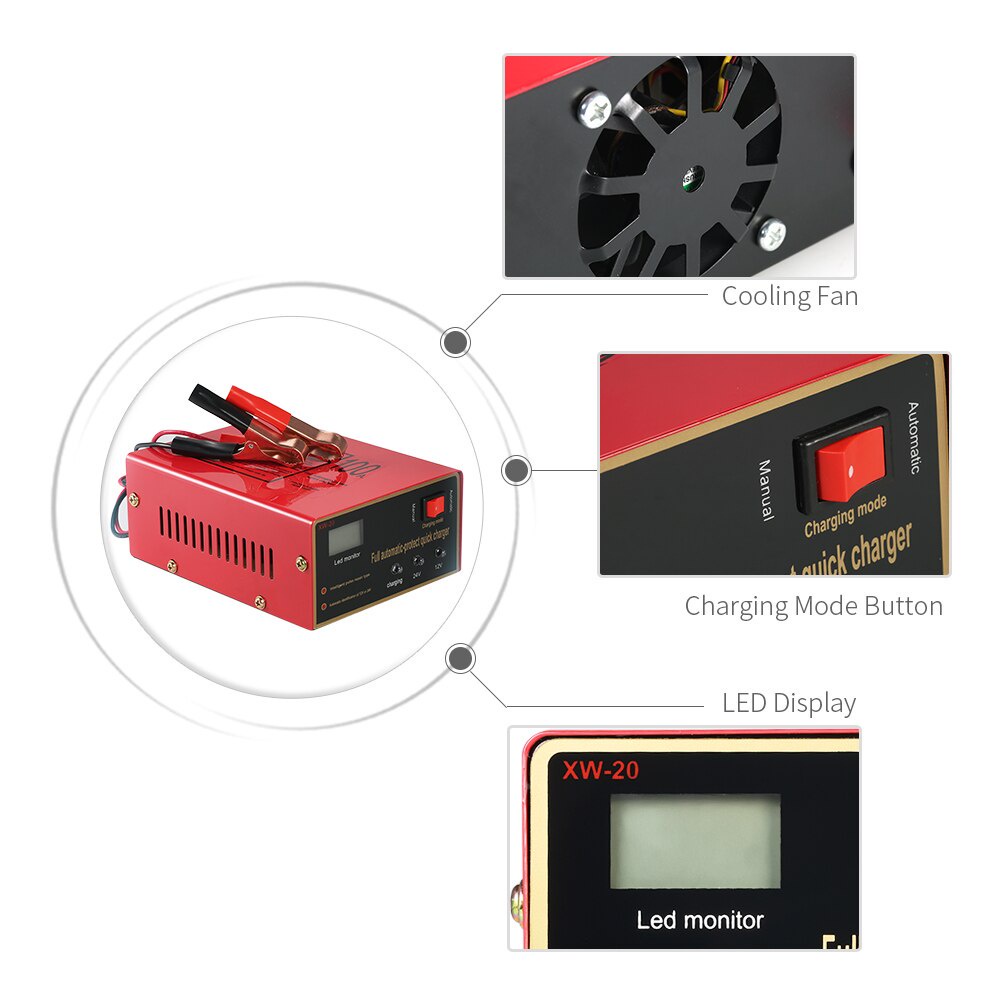

4. Smart cooling fan to help dissipate heat quickly for long service life.
5. With auto protection when temperature is too high, effectively prolong the battery life.

Note:
1. The charger is suitable only for charging matched battery within the listed voltage range.
2. Please do not block cooling fan or use the charger while cooling fan is stopped.
3. Please prevent the charger from rain or water to avoid damage.
Specifications:

Model：XW-20

power：200W

Input voltage：110V-250V

Frequency：50-60HZ

Output voltage:12V24V

Working Current :12V10A；24V7.5A

Voltage Identification：12V Peak (8-14.5V)；24V Peak (18-29V)

Work Temperature：-30℃ to +50℃

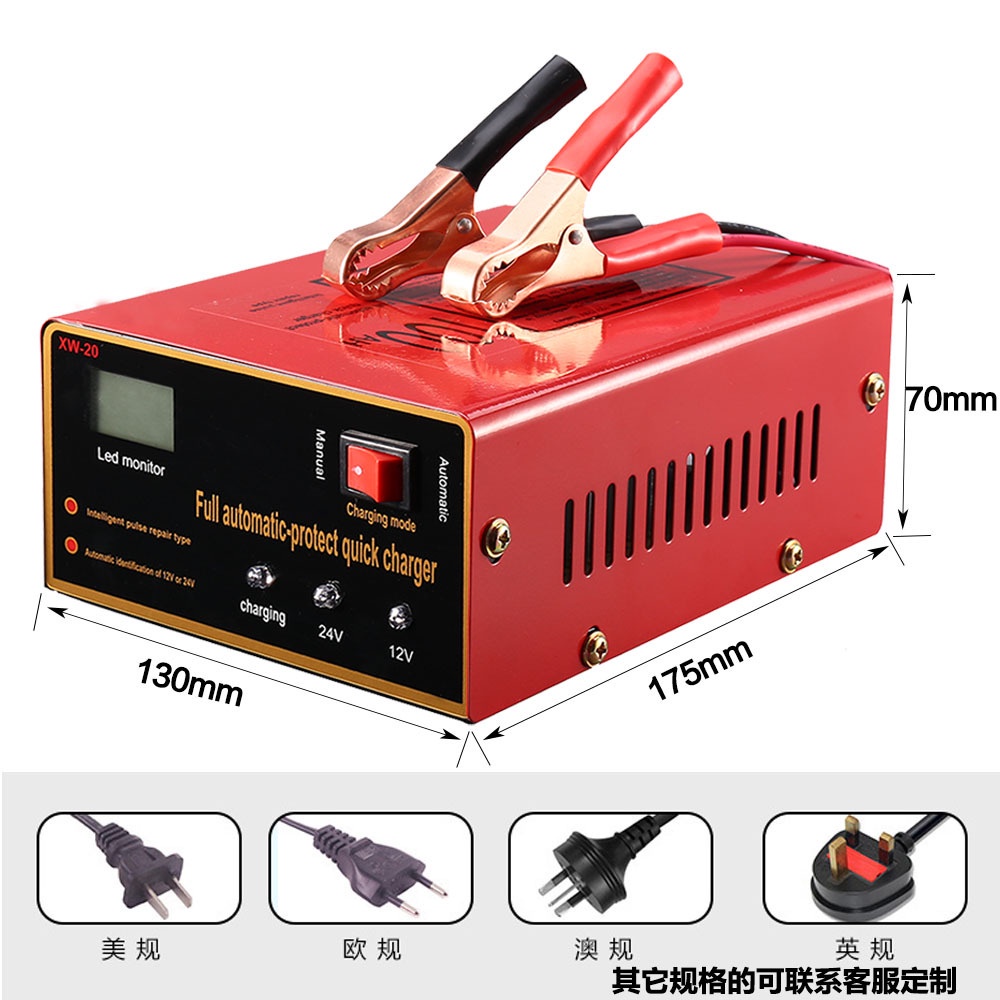

Product size：19*14*7（cm）

Battery type：12V24V battery: Lead-Acid Battery; Maintenance-free battery; Dry battery, Water battery; Gel battery; Solar battery, ect.

TIP:The larger the true capacity of the battery, the longer it will take to charge.

6AH
TIP: 1. Batteries of 12V24V any size can be charged, The current will be adjust automaticly.

2. The charging time depends on the true capacity of the battery.The larger the true capacity of the battery, the longer it will take to charge.

Automatic / Manual Mode

1. Automatic mode
automatic detection of battery requirements, intelligent adjustment of current, self-stop, suitable for normal use of the battery.

2. Manual mode
for deficient battery, low-voltage battery, low temperature, manual mode charging after a period of time into automatic mode remember to manually monitor the battery temperature, battery shell heating stop charging, do not charge for a long time!

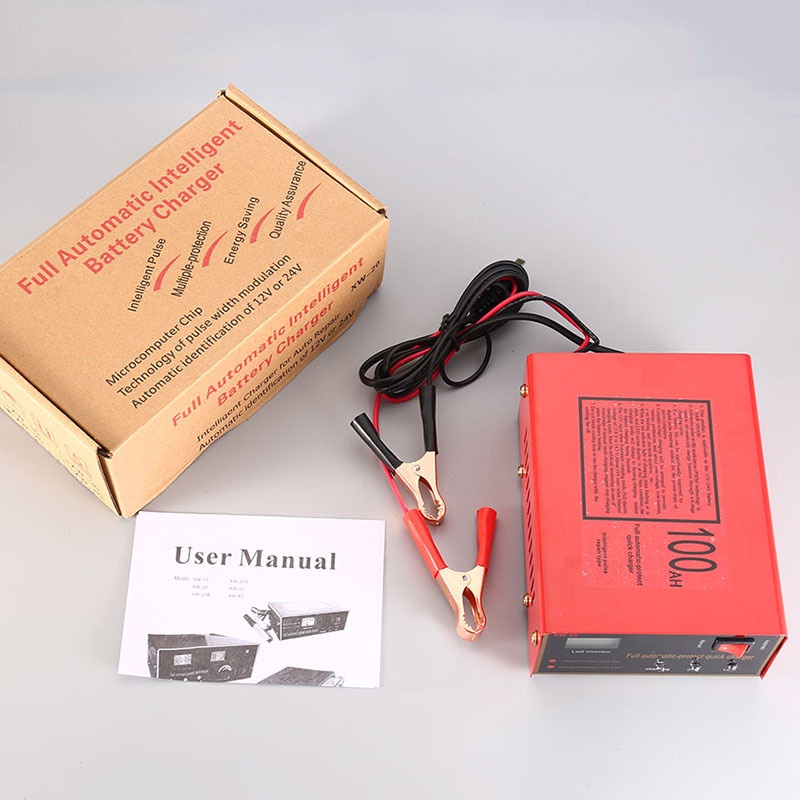

Package List:
1 * Charger
1 * User Manual(English)

Four stage charging , protect the battery ,non-overcharging

Adaptive electricity charging

Charging at constant voltage

Full charge soon&conduct floating charge
Microcurrent supply/full charge



SIX Protections ,Ensure safe charging

Short Circuit protection

Polarity error protection

Overheating protection

Over current protection

low-voltage protection

Over voltage protection
