Charger Aki 5A SUOER Otomatis type SON-1205

Detail Charger Aki 5A SUOER Otomatis type SON-1205

Charger aki SUOER dengan kapasitas 5A, Output 12 volt DC, di lengkapi dengan fitur otomotis ( apabila aki sudah penuh maka otomatis tidak mengisi lagi / cut off ).

Model : SON-1205
Input Voltage : 220V
Output Voltage : 12V
Rated Frequency : 47-63HZ
Charger Current : 5A
Dimensions : 150*70*45mm

Battery Charger SON-1205

1. High performance and good stableness.
2. Suitable for inverter battery for charging.
3. Direct Cigarette lighter connection.
4. Smart and easy to carry.
5. Universal socket, suitable for all kinds of plugs.

L Pre-charger mode
In order to protect the battery and extend its life, the battery's internal resistance is too larger or voltage is too low because the discharged time is too long or it is not used for a long time, the charger will supply low output current for the battery automatically. When voltage of the battery rises to the given voltage value, the charger mode will turn to constant current charge mode automatically.
L Constant current mode
The charger supply constant charger current for the battery.
L Constant voltage mode
Using the pulse width modulation (PWM) tech to control the charging current and output voltage of the charger which ensure the battery is charged fully and avoid over charged.
L Floating charge mode
When the voltage of the battery is closing the value of the constant voltage mode, and the current cut down to the given current gradually, that means the battery power is full, then pilot lamp will turn green and the fan will stop working. The charger will turn the mode into floating charge mode automatically. At this moment, the battery can be stopped charge or kept on floating charge.

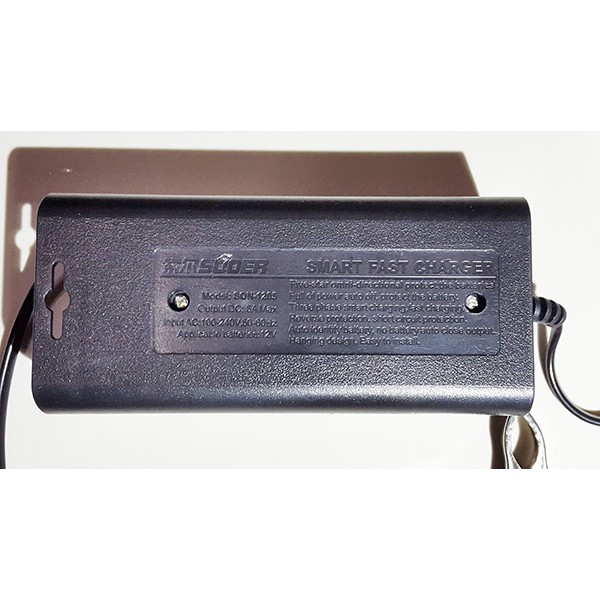

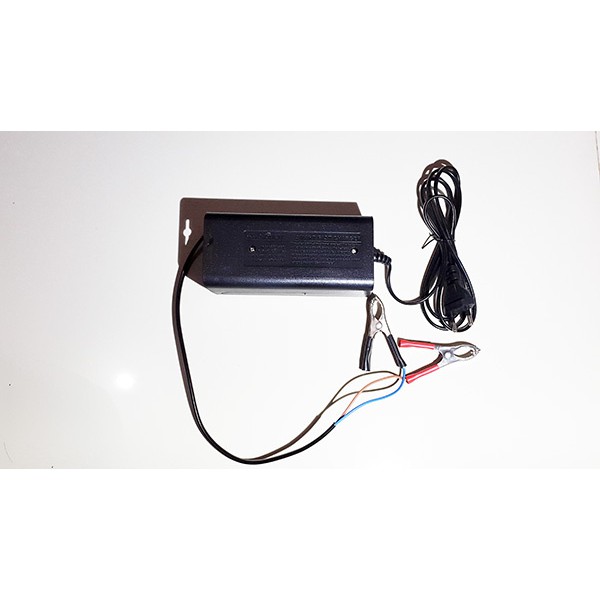

Gambar produk
