CH341A 24 25 SERIES EEPROM FLASH BIOS USB PROGRAMMER
Deskripsi singkat
Komputer & Aksesoris > Penyimpanan Data > Casing Hard Disk & Docking > CH341A 24 25 SERIES EEPROM FLASH BIOS USB PROGRAMMER
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail CH341A 24 25 SERIES EEPROM FLASH BIOS USB PROGRAMMER
CH341A Series USB Programmer/Writer/Downloader support untuk EEPROM tipe 24/25 dan masih banyak lagi, sangat bermanfaat untuk flash ulang EEPROM pada motherboard komputer (BIOS), TV LED/LCD, router, dvd player, graphic card, dan perangkat2 elektronik lainnnya.Spesifikasi:
USB EEPROM/MCU Programmer
Support 24EEPROM and 25 SPI flash 8pin/16pin chip
Support USB to TTL with CH341A chip
Recognize 25 series chip automatically
And support download STC series procedure of singlechip
With 24/25 status indicator lamp
SPI pin to support expanding the utility
Provide 5V-3.3V power supply output
Dimension:70mm x 27mm
100% brand new and high quality
Kelengkapan:

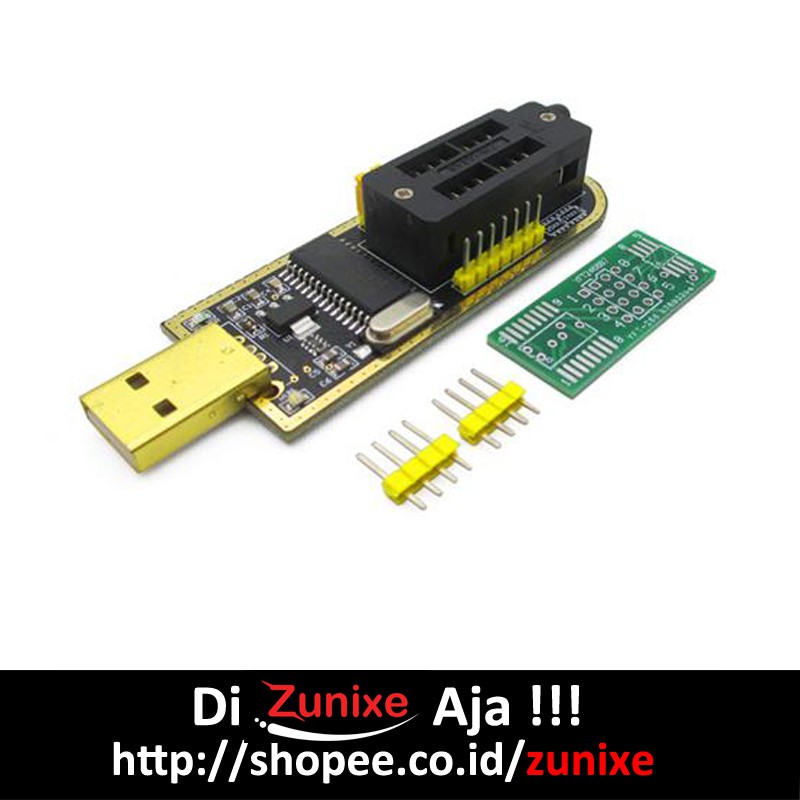

1 Unit CH341A USB DOWNLOADER for EEPROM 24/25 Series
1 pcs PCB dan header untuk SMD IC 8 dan 16 pin
#ch341a #usbprogrammerch341a #CH341A #eepromkit #burnericchip #LCD #tidakDiJual #TV #power #bayar #flash #tools #Elektronik #Alat #USB #Flasher #IC #solder

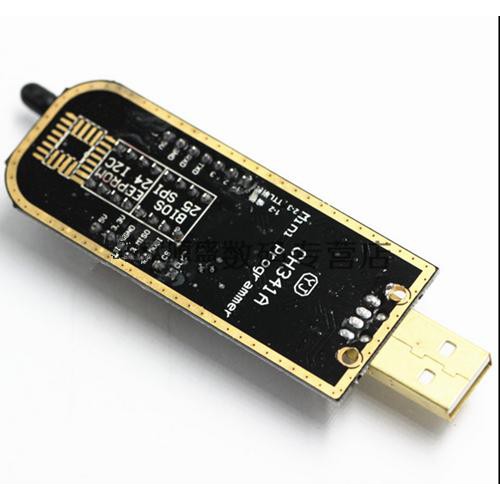

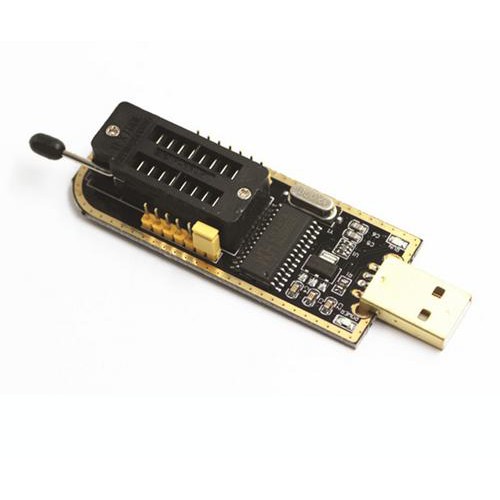

Gambar produk
