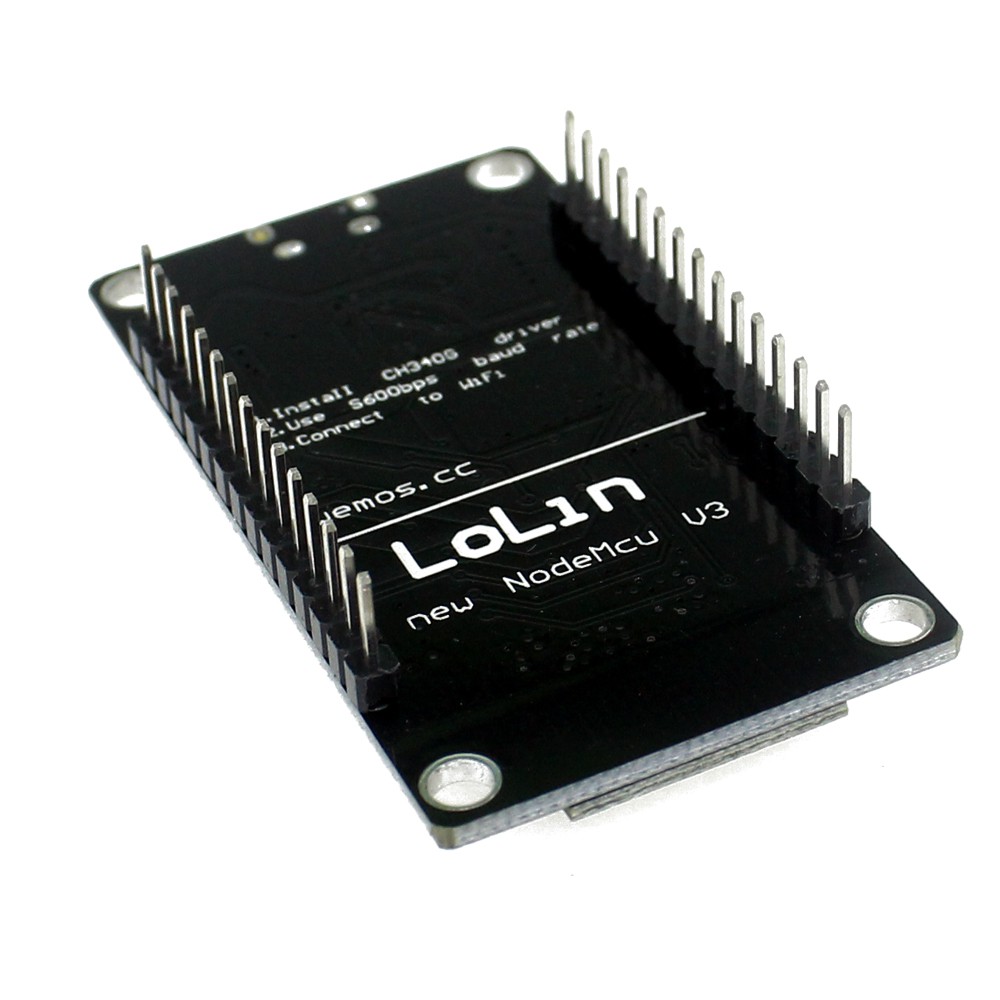

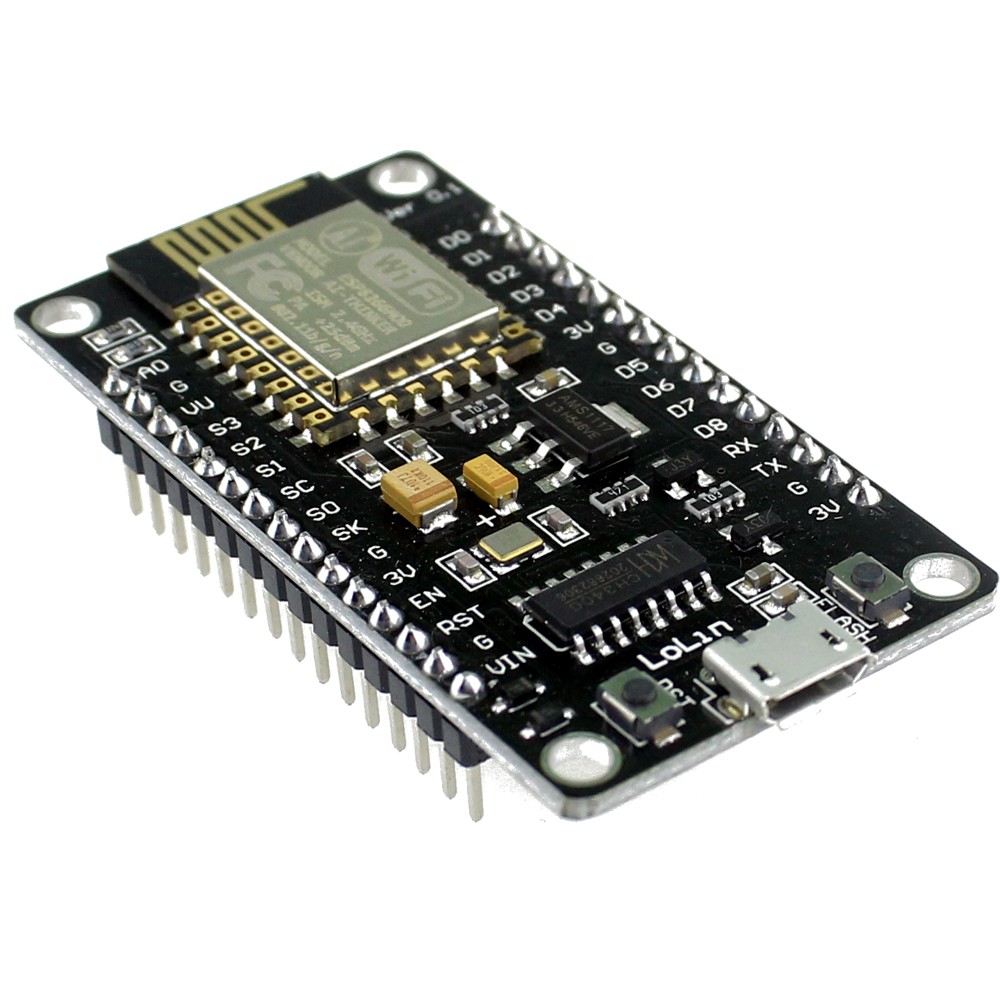

CH340 NODEMCU V3 LUA WIFI DEVELOPMENT BOARD BASED ON ESP8266

Detail CH340 NODEMCU V3 LUA WIFI DEVELOPMENT BOARD BASED ON ESP8266

Hai kawan kawan zunixe apa kabar hari ini? ayo temukan tawaran special dari kami.

Bord ini merupakan board yang dapai kita pakai untuk berbagai projek IOT, Board ini merupakan versi ke-3 (V3) dimana lebih setabil dari versi-versi sebelumnya tentunya.

Untuk pemrogramannya sendiri tentu bisa kita perogram melalui aplikasi IDE arduino. tutorialnya seabrek go google gan,, :-)

New Version NodeMcu Lua ESP8266 WIFI Internet Development Board Latest Firmware. The Development Kit based on ESP8266, integates GPIO, PWM, IIC, 1-
Wire and ADC all in one board. Power your development in the fastest way combining with NodeMCU Firmware!

Spesifikasi :
- Uses CH340G instead of CP2102.
- NodeMCU has built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms.
- Communication interface voltage: 3.3V.
- Antenna type: Built-in PCB antenna is available.
- Wireless 802.11 b/g/n standard
- WiFi at 2.4GHz, support WPA / WPA2 security mode
- Support STA/AP/STA + AP three operating modes
- Built-in TCP/IP protocol stack to support multiple TCP Client connections (5 MAX)
- D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
- AD0: 1 channel ADC
- Power input: 4.5V ~ 9V (10VMAX), USB-powered
- Current: continuous transmission: 70mA (200mA MAX), Standby: 200uA
- Transfer rate: 110-460800bps
- Support UART / GPIO data communication interface
- Remote firmware upgrade (OTA)
- Support Smart Link Smart Networking
- Working temperature: -40 ~ + 125
- Drive Type: Dual high-power H-bridge driver
-- Flash size: 4MByte

Paket :
- 1x NODEMCU LUA WIFI V3 4MB 32MBITS CH340 FLASH ESP8266 ESP12 NODE MCU BOARD

#nodemcu #arduino #lolin #nodemcuv3 #v3
