CEM DT156 Digital Paint coating thickness gauge tester DT-156

Detail CEM DT156 Digital Paint coating thickness gauge tester DT-156

ORIGINAL CEM

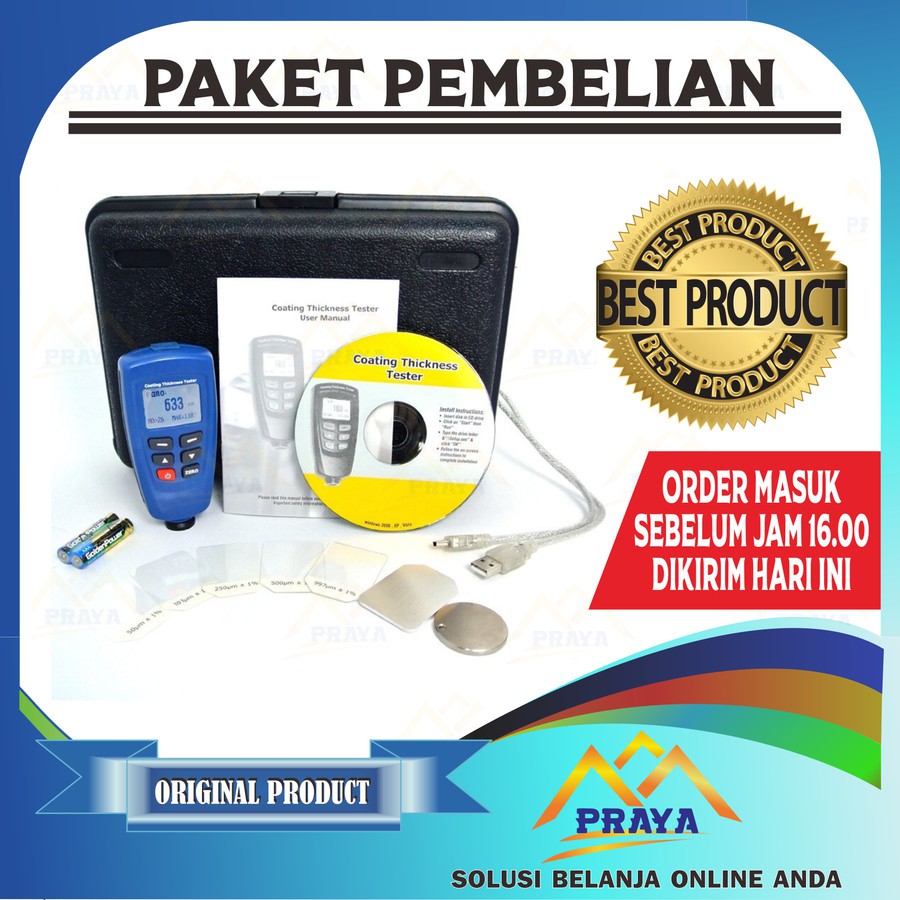

FULLSET DENGAN KOPER BOX
TAK PERLU TANYA STOK , ORDER LANGSUNG KIRIM

Paint Coating Gauge untuk mengukur ketebalan cat pada permukaan
Ideal untuk bengkel cat, mobil, kapal, lab manufaktur, dan maintenance tangki. Range pengukuran 0~1250um (micron). Bisa untuk Ferrous dan Non Ferrous

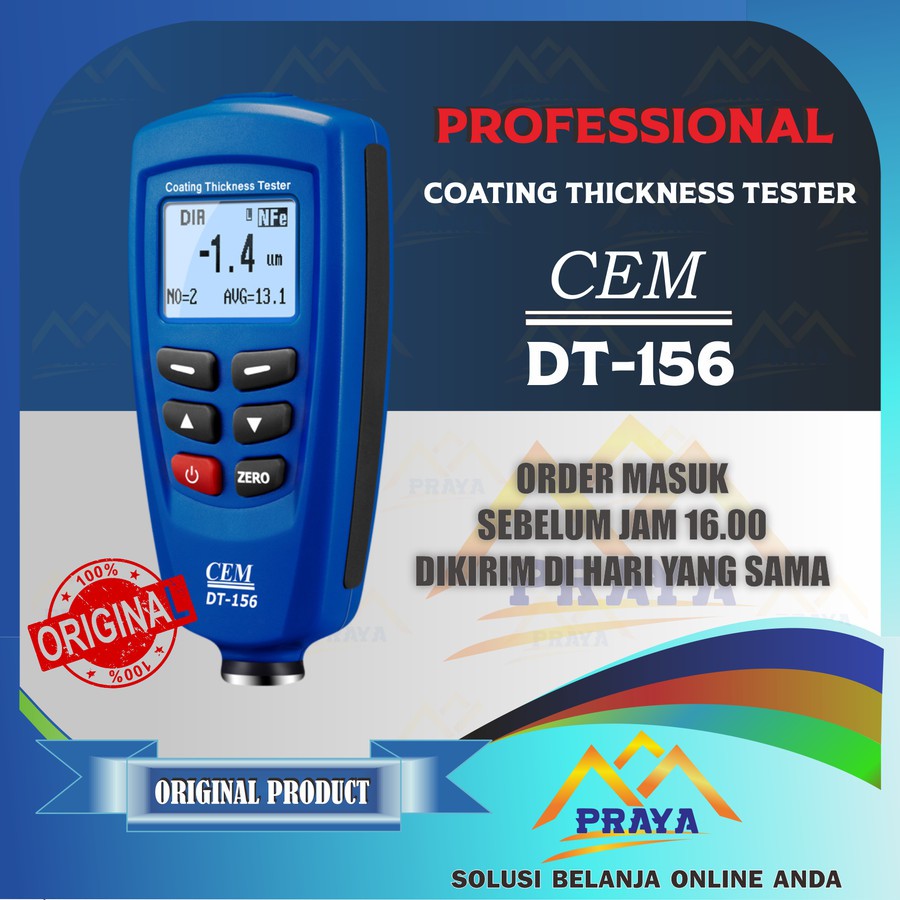

This compact Professional Gauge is designed for non-destructive, fast and highly accurate coating thickness measurement.

The principal aplications lie in the field of corrosion protection. Ideal for paint shops & electroplaters, chemical, automobile, shipbuilding and aircraft industry

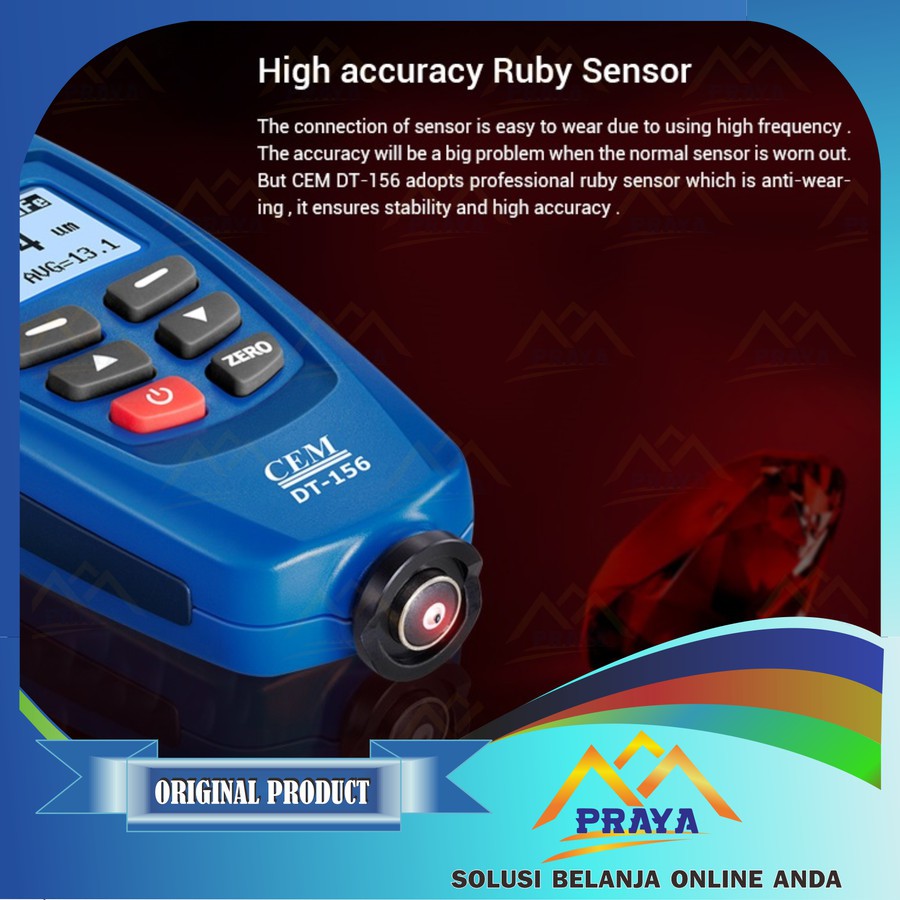

CEM Instrument DT-156 gauge are suitable for laboratory, workshop & outdoor use. It works either on magnetic induction principle and on eddy current principle, depends on probe used. DT-156 uses only 1 probe for both ferrous & non-ferrous metal substrates. Probe can be selected manually or automatically.

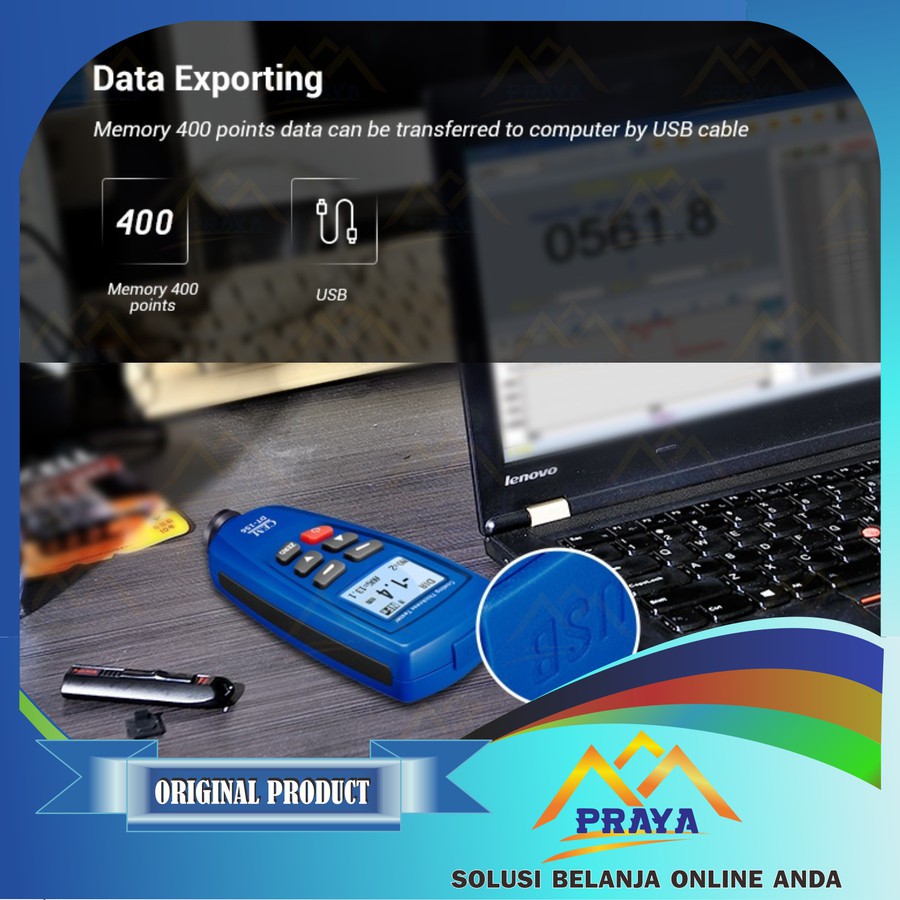

Stores 400 memory values and display 5 statistics ( AVG, MAX, MIN, S.DEV and Number of reading in work mode). It comes with software CD and USB cable for transferring collected data to computer for later analysis or data printing.


Features:
Non-magnetic coatings (e.g. paint, zinc) on steel
Insulating coatings (e.g. paint, anodizing coatings) on no-ferrous metals
No-ferrous metals coatings on insulating substrates
Easy MENU operation system
Statistics Display : AVG, MAX, MIN, S.DEV and Number of readings in work mode
Two measuring mode : CONTINUOUS and SINGLE mode
Two Operating/working mode :
Direct mode : recommended for simple, quick & occasional measurements. Though can't be saved but hold up to 80 current readings + 5 statistics values
GROUP mode : permits measurement & storage of readings in a memory. 4 memory groups, 80 saved readings for each group
Blue backlight display

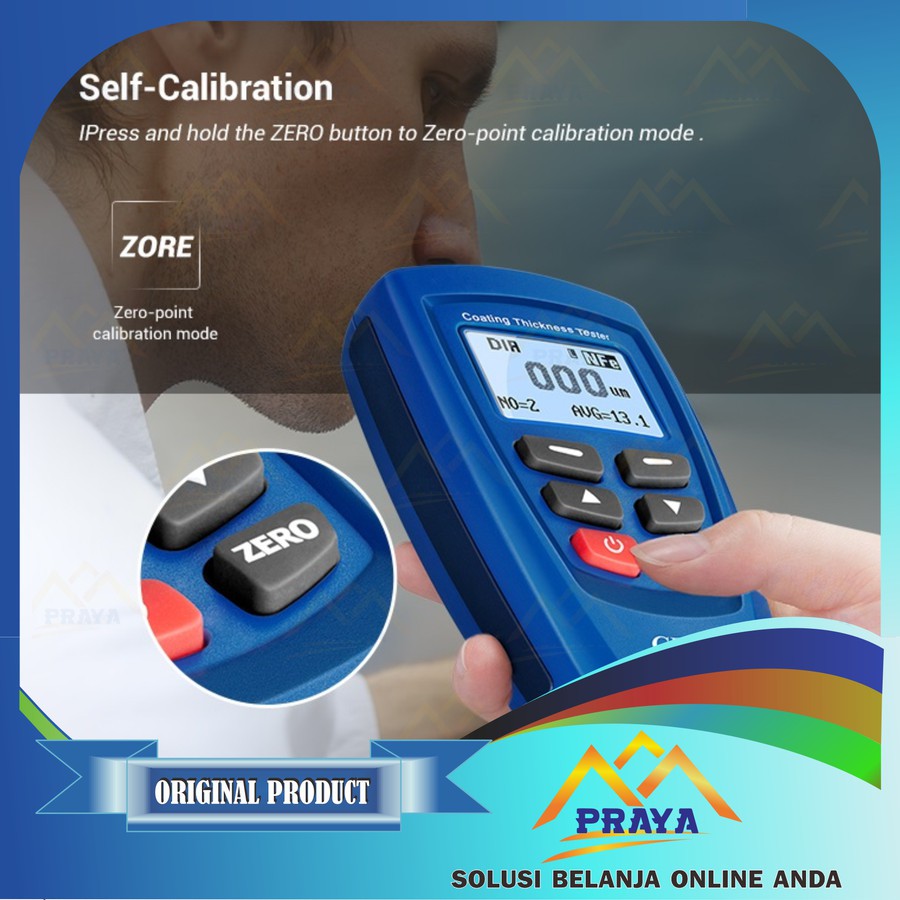

One-point calibrating and two-point calibrating independently for each working mode

Gambar produk
