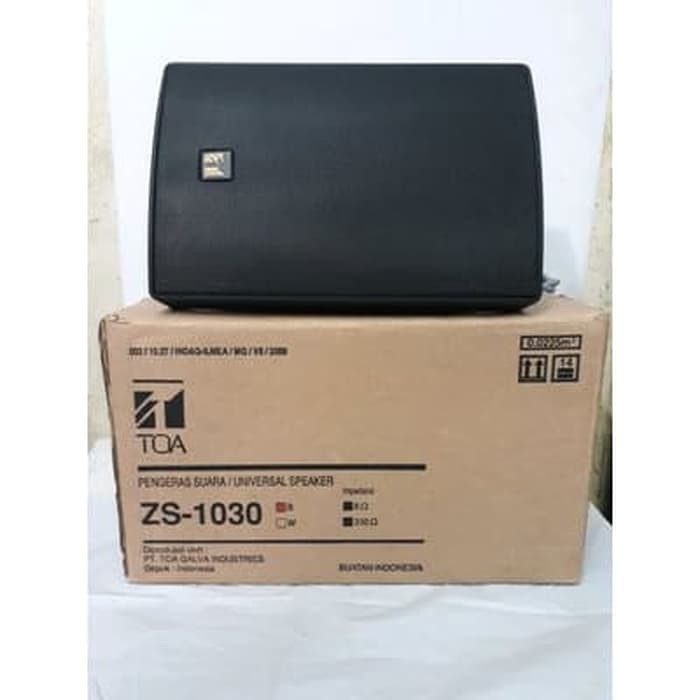

Ceiling Speaker / Speaker Box TOA ZS 1030 B

Detail Ceiling Speaker / Speaker Box TOA ZS 1030 B

The ZS-1030B is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The ZS-1030B can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.


- Rated Input : 30 W
- Rated Impedance : 8
100 V line: 330 (30 W), 500 (20 W), 670 (15 W), 1 k (10 W), 2 k (5 W)
70 V line: 170 (30 W), 250 (20 W), 330 (15 W), 500 (10 W), 1 k (5 W)
- Sound Pressure Level : 90 dB (1 W, 1 m)
- Frequency Response : 70 Hz - 20 kHz
- Speaker Component : 12 cm cone-type + 2.5 dome-type
- Finish Enclosure: ABS resin, black or white paint
- Grille : Surface treated steel plate, black or white,
powder coating
- Dimension : 196 (W) 290 (H) 150 (D) mm
- Weight : 2.5 kg (unit only
