Ceiling Speaker / Speaker Box TOA ZS F 1300 B / F1300B / ZS-F1300B

Detail Ceiling Speaker / Speaker Box TOA ZS F 1300 B / F1300B / ZS-F1300B

Enclosure : Bass-reflex type
Power Handling Capacity: Continuous pink noise: 50 W
Continuous program: 150 W
Rated Impedance: 8 Ω
Sensitivity: 90 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response: 80 - 20,000 Hz, -10 dB at installation in 1/2 free sound field
Crossover Frequency: 2 kHz
Directivity Angle: Horizontal: 110゜, Vertical: 100゜
Speaker Component: Low frequency: 13 cm (5") cone-type
High frequency: 25 mm (1") dome tweeter
Input Terminal: Push-in terminal
Finish: Enclosure: HIPS, white
Punched net: Surface-treated steel plate, white, paint
Joint bracket, wall bracket: Steel plate, t1.6, white, paint
Speaker bracket: Die-cast aluminum, white, paint
Dimensions: 162 (W) × 250 (H) × 161 (D) mm (6.38" × 9.84" × 6.34")
Weight: 3.1 kg (6.83 lb) (including the supplied brackets)
Accessory: Speaker bracket …1, Joint bracket …1, Wall bracket …1,
Bracket fixing screw …1 set
Option: Board hanger bracket: HY-BH10B
Ceiling mount bracket: HY-CM10W (used for the horizontal speaker mounting)
Cluster bracket: HY-CL10B
Speaker stand: ST-16A

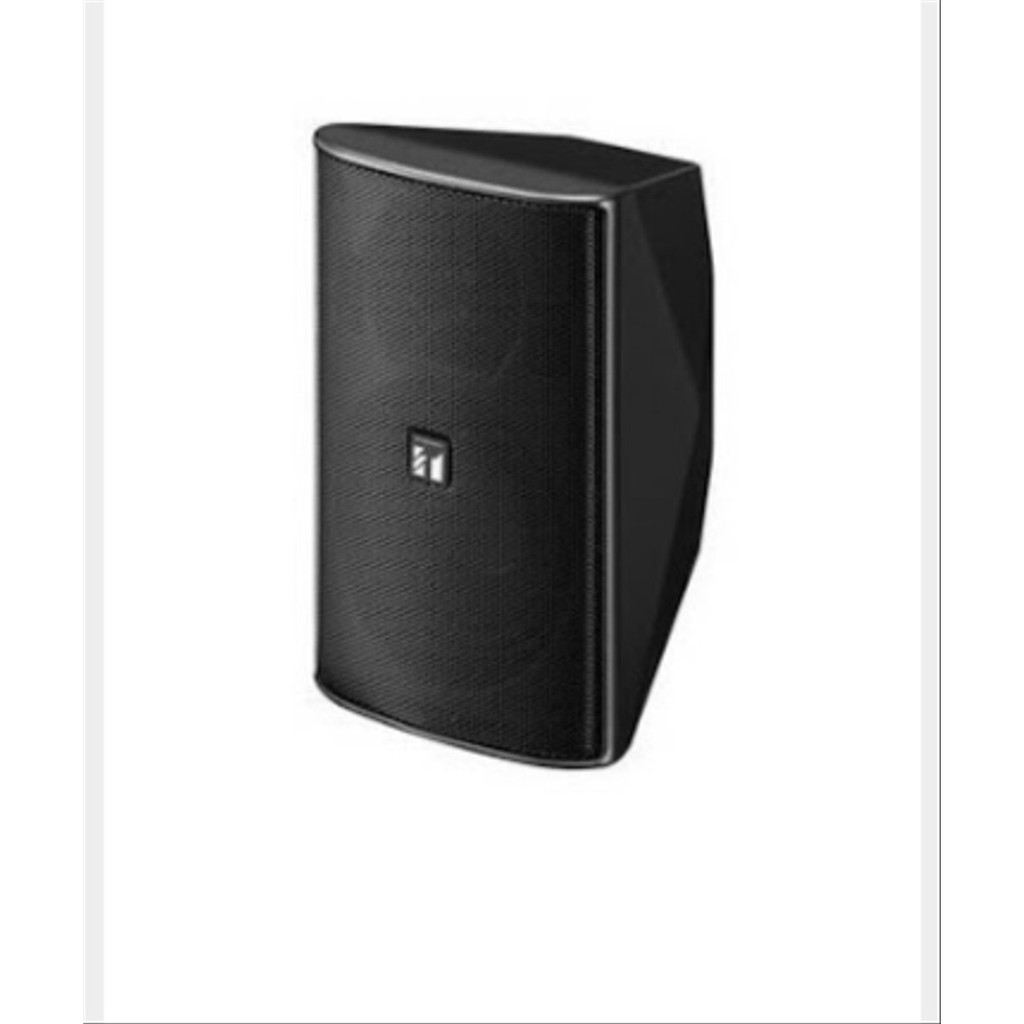

Gambar produk
