CDM324 Radar Sensor Microwave Body Induction module 24GHz

Detail CDM324 Radar Sensor Microwave Body Induction module 24GHz

Hi #RekanEasyWare ...
EasyWare Part#: EP001785

FITUR :
- Noncontact detection,moving object detection
- Transmitting frequency: 24GHZ,can be widely applied in business,industries,word controlling etc
- Provide various frequency range standards: -UK,-F.advanced low consumption PHEMT oscillator
- Independent transmitting and receiving route, can get the biggest gain,single channel operation
- High sensibility,high flexibility,low cost,operating distance: 15m
- Not influenced by temperature,humidity,noise,air flow,dust,ray etc,adaptive to terrible environment
- Strong radio frequency interference resistance,stable performance,swift response,high sensibility
- Out put power is 5mW,does no harm to human bodies
- Long distance detection range: 15m
- Small volume,easy to install
- Radar wave can penetrate through non metallic object,such as board,glass,plastics,fabric textile etc,unless there are concrete wall or metal board to obstruct
- Human beings or objects facing the sensor to move wil receive the best detection result

UNTUK DIPERHATIKAN :
- Don't operate during the power on in case of maloperation,wrong circuit or electric shock
- Avoid installing the product in exposed place to prevent damage or affecting using longevity
- Install the product far away from magnetic field in case of maloperation
- Install the product far waay from moving conductors in case of maloperation

PARAMETER :
- Transmitting Frequrency: min:24GHz typ: 24.125GHz max:24.25GHz
- Output Power: 16dbm (tpy)
- Operating Temperature: -20--60°
- Current Operation: TPY: 30MA, Max:40MA
- Operating Voltage: TPY:5.5V
- Width Pulse: TPY:10US
- IF Output: -300 -300MV
- Appearance Size: 25x25x7mm

KELENGKAPAN :
- 1pcs CDM324 Radar Sensor Microwave Body Induction module 24GHz

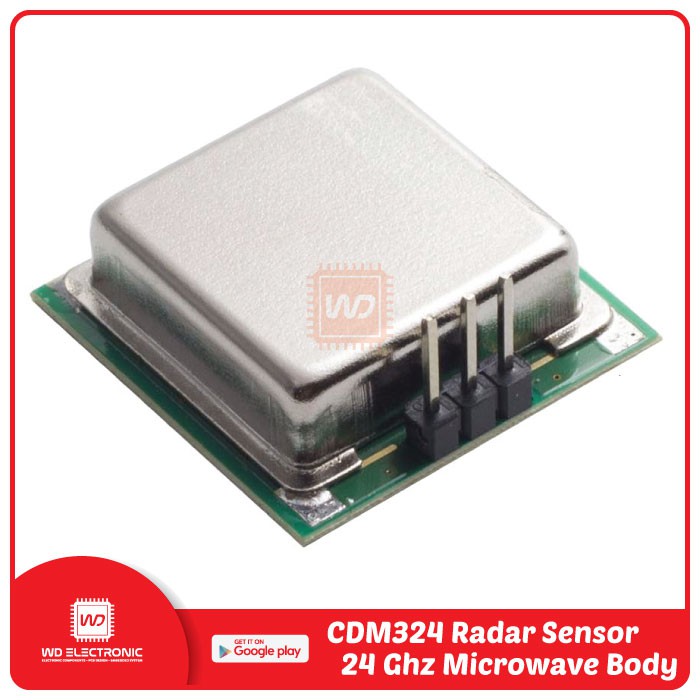

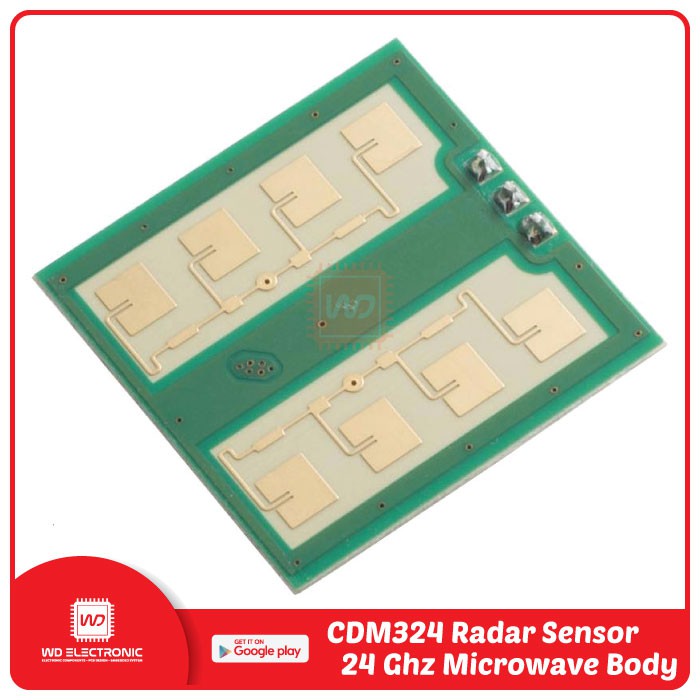

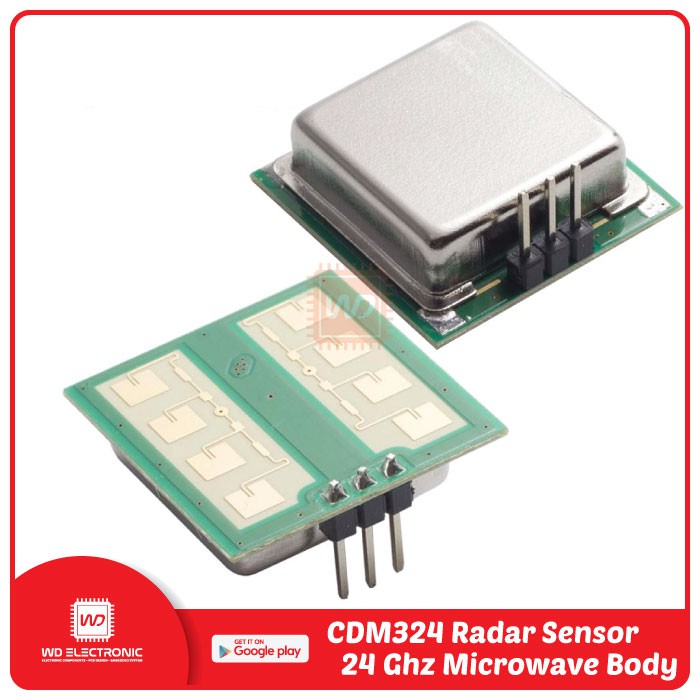

Gambar produk
