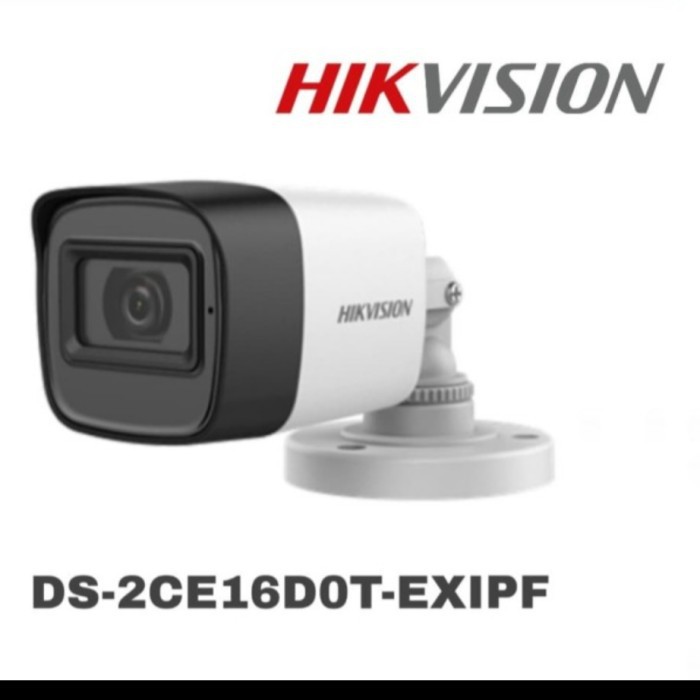

CCTV OUTDOR HIKVISION 2MP DS-2CE16DOT-EXIPF ORIGINAL

Detail CCTV OUTDOR HIKVISION 2MP DS-2CE16DOT-EXIPF ORIGINAL

Deskripsi CCTV OUTDOR HIKVISION 2MP DS-2CE16DOT-EXIPF ORIGINAL
Deskripsi HIKVISION DS-2CE16DOT-EXIPF 2MP CAMERA CCTV OUTDOOR 2MP
HIKVISION DS_2CE16DOT-EXIPF
2 MP outdoor Fixed Turret Camera
2 MP turret camera
3-axis adjustment 2.0: advanced infrared technology with 20 m IR distance
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera
Image Sensor - 2 MP CMOS
Signal System - PAL/NTSC
Frame Rate - TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
Resolution - 1920 (H) × 1080 (V)
Min. Illumination - 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time - PAL: 1/25s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s
Lens - 2.8 mm
Horizontal Field Of View - 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens Mount - M12
Day & Night - ICR
WDR (Wide Dynamic Range) - Digital WDR
Angle Adjustment - Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

Menu
Image Mode -STD/HIGH-SAT
AGC- Support
Day/Night Mode - Auto/Color/BW (Black and White)
White Balance - ATW/MANUAL
HLC - Yes
BLC (Backlight Compensation) - Yes
Language - English
Functions - Brightness, Sharpness, Smart IR

Interface
Video Output - Switchable TVI/AHD/CVI/CVBS

General
Operating Condition - -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Power Supply - 12 VDC ± 25%
Power Consumption - Max. 2.2 W
Material- Plastic
IR Range - Up to 20 m
Communication - HIKVISION-C
Dimensions - 60.9 mm × 57.9 mm × 138.8 mm (2.39" × 2.28" × 5.47")

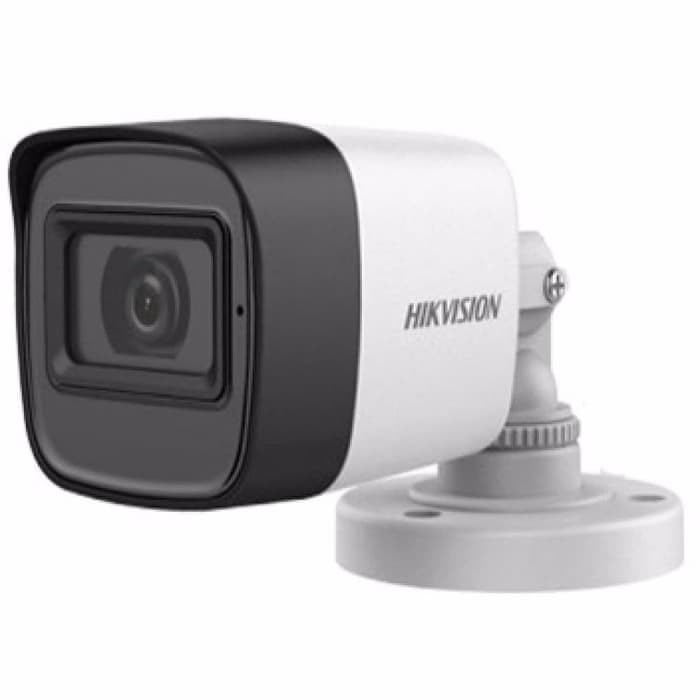

Gambar produk
