Detail CC1101 Wireless Module SMA Antenna Wireless Transceiver Module

Basic Features:
1. Working voltage :1.8-3.6V
2. Operating frequency:(Module:387-464MHZ)
3. Instantaneous maximum working current: <30mA;
4. Maximum transmit power: 10mW (+10dBm);
5. 315/433/868/915MHZ ISM band;
6. Support 2-FSK, GFSK and MSK modulation;
7. Receiver sensitivity -110dBm at 1200 baud;
8. Minimum operating speed 1.2kbps, the highest 500kbps;
9. Separate 64-byte RX and TX data FIFO buffer;
10. Built-in hardware CRC error detection ensures reliable data transmission;
11. Support RSSI signal strength detection and carrier sense function;
12. Low power consumption;
13. Mailing Address (256) Operating frequency can be programmed via SPI;
14. Programmable output power, for all the support frequencies up to +10 dBm;
15. WOR feature can be set to standby, the proportion receiving state timer switch time to reduce power consumption;
16. Fast frequency synthesizer with proper frequency hopping system;

Gambar produk

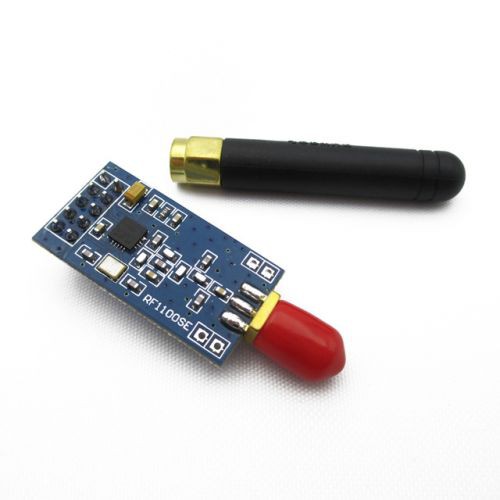

CC1101 Wireless Module SMA Antenna Wireless Transceiver Module
