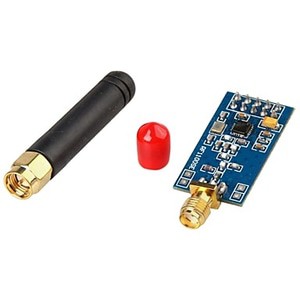

cc1101 wireless module RF with antenna

Detail cc1101 wireless module RF with antenna

1.Working voltage :1.8-3 .6 V
2.Frequency: (module :387-464MHZ)
3.Instantaneous maximum operating current: 30mA ; maximum transmit power: 10mW (10dBm); 4.315/433/868/915MHZ ISM band;
5•Support 2-FSK, GFSK, and MSK modulation mode;
6.Receiver sensitivity-110dBm 1200 baud;
7.The minimum work rate 1.2kbps up to 500kbps;
8.Separate 64-byte RX and TX data FIFO buffer;
9.The built-in hardware CRC error detection to ensure reliable data transmission;
10.RSSI strength of signal detection and carrier sensing function;
11.Low power consumption (RX in, 15.6mA, 2.4kbps, 433MHz;
12.Changes in the fast frequency synthesizer suitable frequency hopping systems;
13.Mailing address (256) The operating frequency can be set via SPI programming;
14.Programmable control of output power, for all the support frequency up to 10dBm

15.WOR function can be set to standby, the receiving state timing switch ratio to reduce power consumption.



Main Applications
Vehicle monitoring, remote control, remote sensing, hydrological and meteorological monitoring
Wireless tags, identification, non-contact RF smart card
Small wireless network, wireless meter reading, access control systems, paging district
Industrial data acquisition systems, wireless 232 data communications, wireless 485/422 data communication
Wireless data terminal, security, fire systems, wireless remote control system

Gambar produk
