Cayin RU6 R-2R USB-C DAC/Amp Dongle DAC Headphone Amplifier RU 6 R2R

Detail Cayin RU6 R-2R USB-C DAC/Amp Dongle DAC Headphone Amplifier RU 6 R2R

Note :
Cayin RU6 R-2R USB-C DAC/Amp Dongle DAC Headphone Amplifier
Garansi Resmi 1 Tahun

DAC 24bit Discrete R-2R

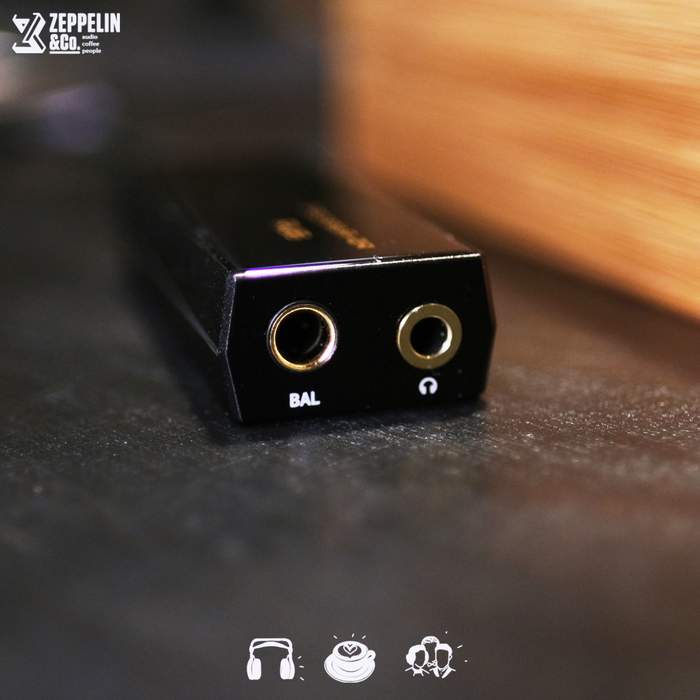

HEADPHONE 3.5mm + 4.4mm Balanced
USB Type C USB Audio Input

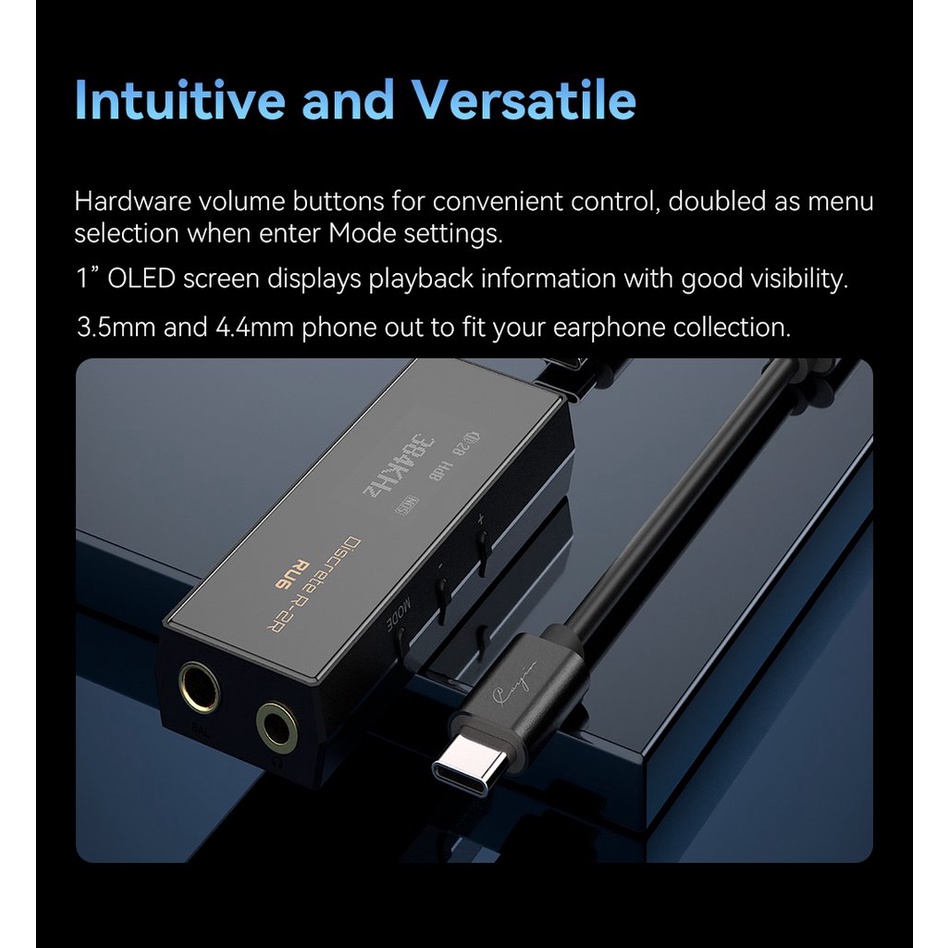

DISPLAY 0.96 Inch 128x64 OLED
DIGITAL DECODING PCM: 44.1kHz ~ 384kHz
DSD: DSD64/128/256
CONTROL Volume +/-, Mode
DIMENSION 65mm X 25.4mm X 13.7mm
CHASSIS CNC Aluminum
NET WEIGHT ~28g
RU6 HEADPHONE OUTPUT (OS MODE)- 3.5MM
POWER RATING 138mW @ 32Ω
FREQUENCY RESPONSE 20Hz-20kHz (±0.5dB)
THD+N 0.032% (1kHz, Output: 0.5V)
DYNAMIC RANGE 109dB (20Hz-20kHz, A-Weighted)
SNR 113dB (20HZ-20kHz, A-Weighted)
OUTPUT IMPEDANCE 0.5Ω

RU6 HEADPHONE OUTPUT (OS MODE)- 4.4MM
POWER RATING 213mW @ 32Ω
FREQUENCY RESPONSE 20Hz-20kHz (±0.5dB)
THD+N 0.04% (1kHz, Output: 1V)
DYNAMIC RANGE 110dB (20Hz-20kHz, A-Weighted)
SNR 114dB (20HZ-20kHz, A-Weighted)
OUTPUT IMPEDANCE 1.0Ω

FEATURES
◉ 24-Bit Discrete R-2R Resistor Ladder DAC
◉ User Selectable NOS/OS Digital to Analog Modes
◉ High Precision Resistor Array Volume Control
◉ Dual Main Boards Layout
◉ DSD256 and PCM 384kHz
