CATV Transmiter 1550 Output 1 x 10db

Detail CATV Transmiter 1550 Output 1 x 10db

Built-in high performance imported stamen chip , guaranteed excellent output

. Built-in optical receiver circuit , you can set open and close

. Built-in double Coaxial laser (1310nm)and APC circuit

. Built-in high performance CPU , Precise control of AGC and MGC

. Dual display design, digital tube real-time display optical receiver power size (dBm), LCD display working parameters

. Mini fuselage design and good heat dissipation

     PARAMETER

  Wavelengthnm1550±20
  Output power  dBm10
  Optical return lose dB ≥60
  Bandwidth MHz45~865/1000
  Input level dBuV 75~85
  Flatnes dB ±0.75
  Input inpedance  Ω  75
RF return loses dB ≥16
CNR dB  ≥51
CSO dB≥60
CTB dB ≥65
Power VL110~264VAC
Consumption 15w
 Working temp ℃ 0~45
 Storage temp ℃-20~+65
 Dimension mm   225(L)*180(W)*35(H)

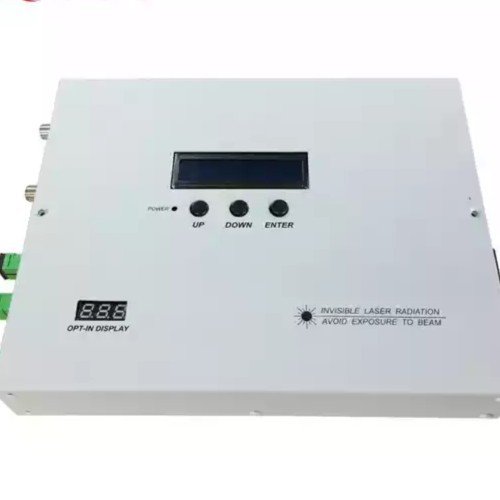

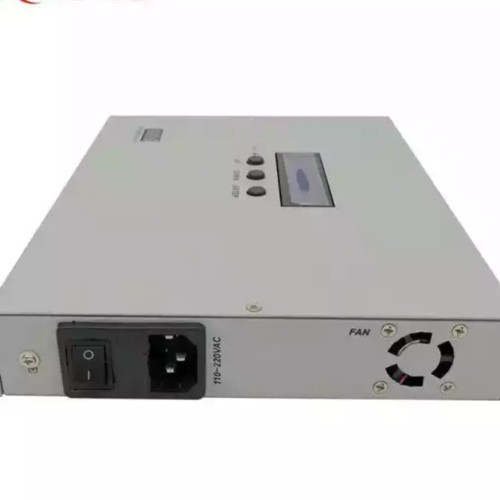

Gambar produk
