Casing Thermaltake View 300 MX ATX Mid Tower Chassis

Detail Casing Thermaltake View 300 MX ATX Mid Tower Chassis

*Notes
Untuk keamanan produk silahkan tambahkan buble ya
https://shopee.co.id/product/28339531/6732702209/

*Untuk keamanan produk yang cukup besar disarankan menggunakan packing kayu, untuk produk monitor, pc aio, pc build up, dan laptop wajib menggunakan packing kayu

*Silahkan menambah packing kayu di
https://shopee.co.id/product/28339531/6174009421/

*Selalu tanyakan stok terlebih dahulu karena stok sangat terbatas


Spesifikasi :
P/N
CA-1P6-00M1WN-00
SERIES
View
MODEL
View 300 MX
CASE TYPE
Mid Tower
DIMENSION (H X W X D)
505 x 230 x 506 mm
(19.9 x 9.1 x 19.9 inch)
NET WEIGHT
10.4 kg / 22.9 lbs.
SIDE PANEL
4mm Tempered Glass x 1
COLOR
Black
MATERIAL
SPCC + ABS
COOLING SYSTEM
Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2
Rear(exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1
DRIVE BAYS
2 x 3.5”, 4 x 2.5” or 6 x 2.5”
EXPANSION SLOTS
7 (Rotatable Patented Design)
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O PORT
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front: 3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm
1 x 200mm
Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack)
Rear: 1 x 120mm
RADIATOR SUPPORT
Front: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack)
Rear: 1 x 120mm
CLEARANCE
CPU cooler height limitation: 175mm VGA length limitation: 280mm(With reservoir)
400mm(Without reservoir)

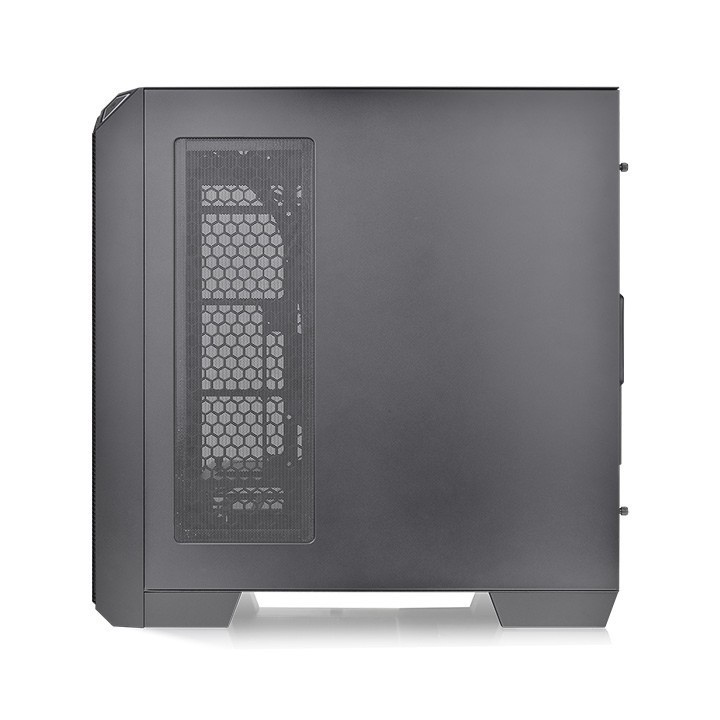

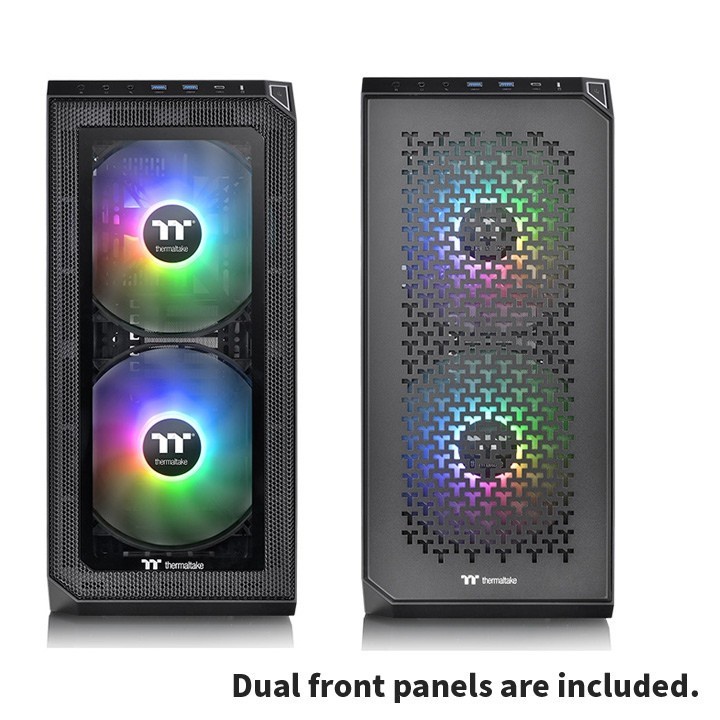

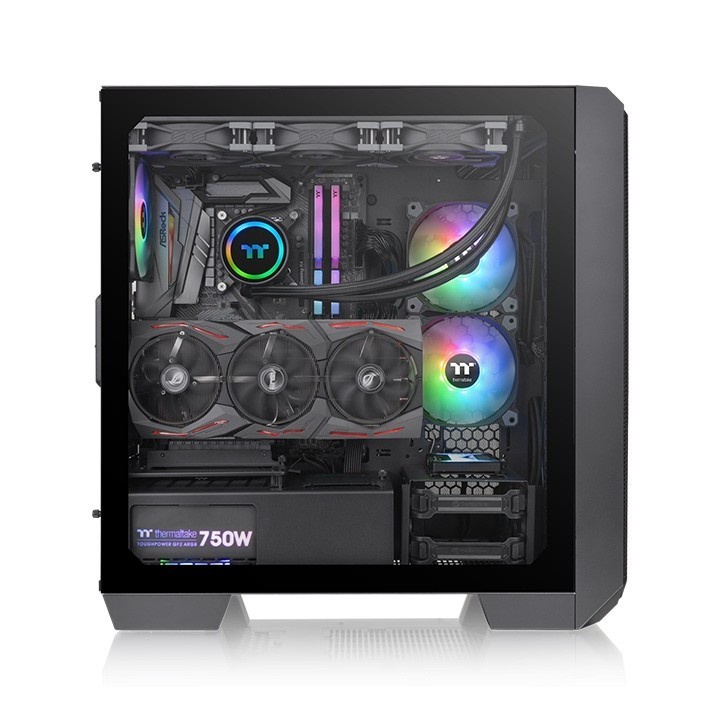

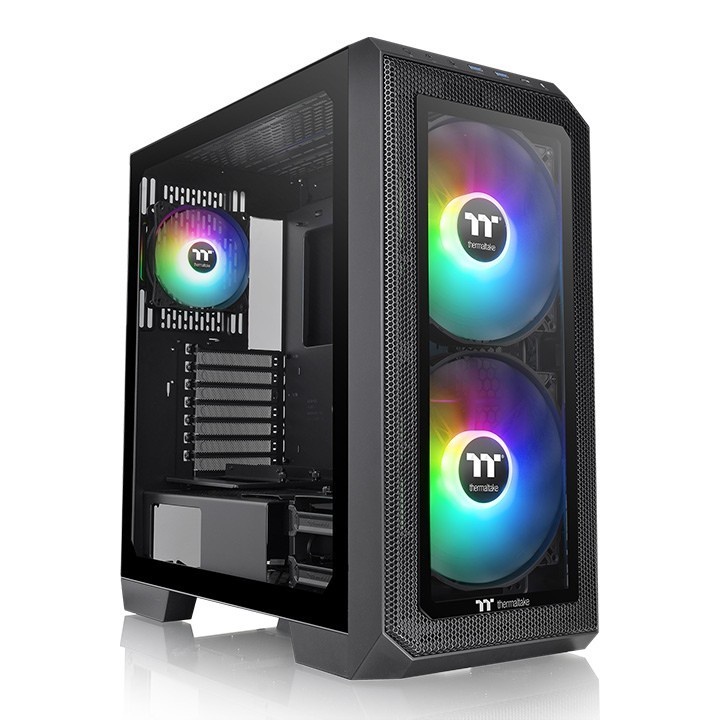

Gambar produk
