Casing ThermalTake Level 20 MT ATX ARGB - Casing Gaming ThermalTake

Detail Casing ThermalTake Level 20 MT ATX ARGB - Casing Gaming ThermalTake

P/N
CA-1M7-00M1WN-00
Series
Level 20
CASE TYPE
Mid Tower
Dimension (H x W x D)
455 x 204 x 471mm
(17.9 x 8.0 x 18.54 inch)
NET WEIGHT
6.75 kg / 14.88 lb
SIDE PANEL
4mm Tempered Glass x 2 (Left & Front)
Color
Exterior & Interior : Black
MATERIAL
SPCC
COOLING SYSTEM
Front (Intake):
120 x 120 x 25mm Addressable RGB fan
(1000rpm, 27.2 dBA) x 3
Rear (exhaust):
120 x 120 x 25 mm fan
(1000rpm, 26 dBA) x 1
Drive Bays
-Accessible
-Hidden

1 x 2.5’’(HDD Bracket); 2 x 2.5”
2 x 3.5’’ or 2.5”(HDD Cage); 1 x 2.5”(HDD Bracket)
EXPANSION SLOTS
7
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port
USB 3.0 x 2, HD Audio x 1, RGB Switch x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm
Top:
2 x 120mm, 1 x 140mm
Rear:
1 x 120mm
Right Side(In front of M/B Tray):
2 x 120mm
Bottom(On the power cover):
2 x 120mm
RADIATOR SUPPORT
Front:
1 x 360mm
Rear:
1 x 120mm
Right Side(In front of M/B Tray):
1 x 240mm
CLEARANCE
CPU cooler height limitation:
170mm
PSD length limitation:
170mm
VGA length limitation:
260mm(With radiator on the right side)
366mm(Without radiator on the right side)

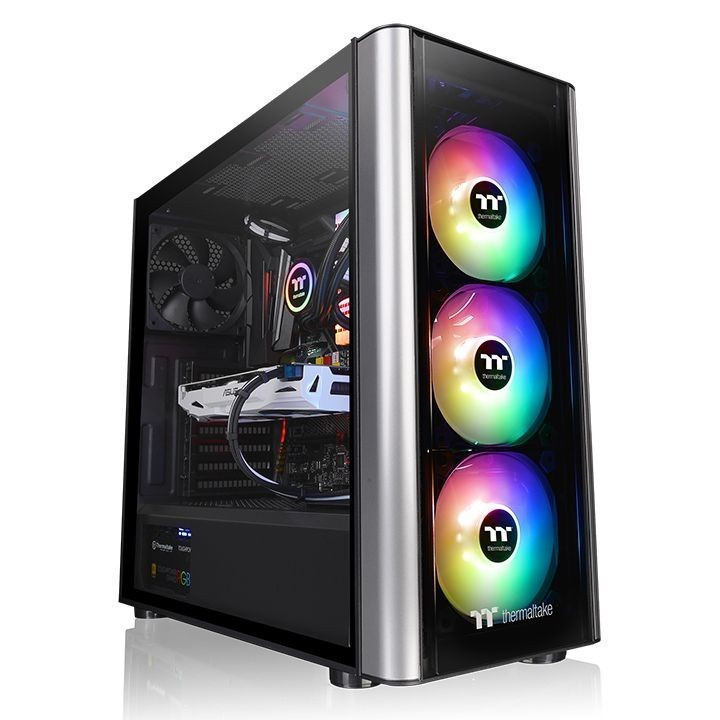

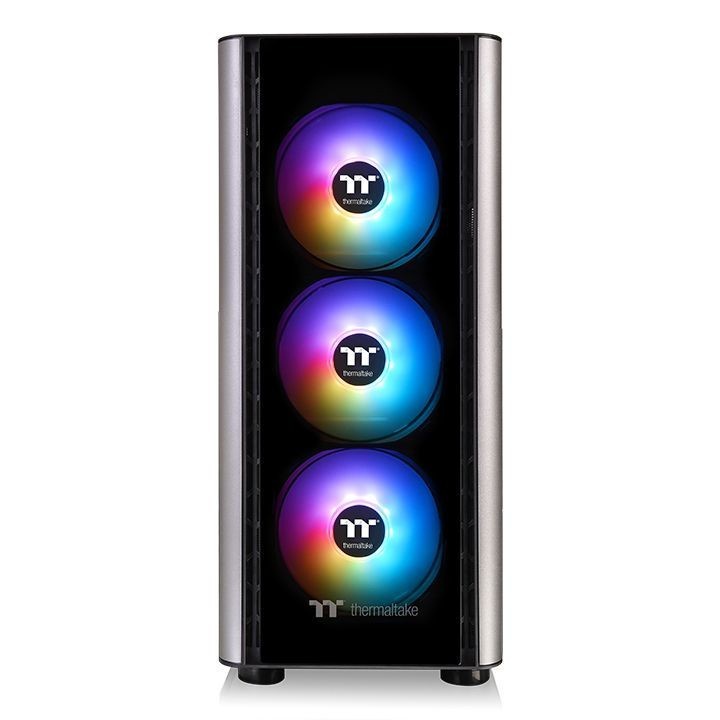

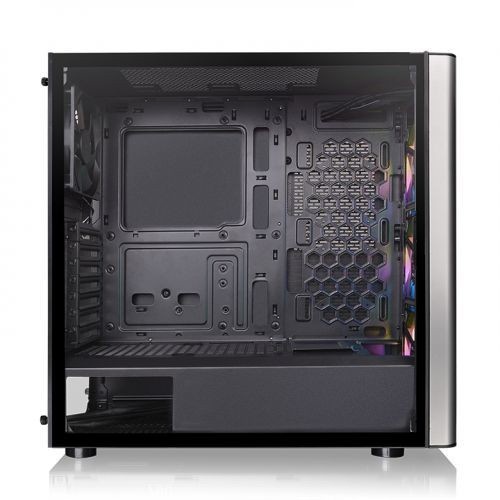

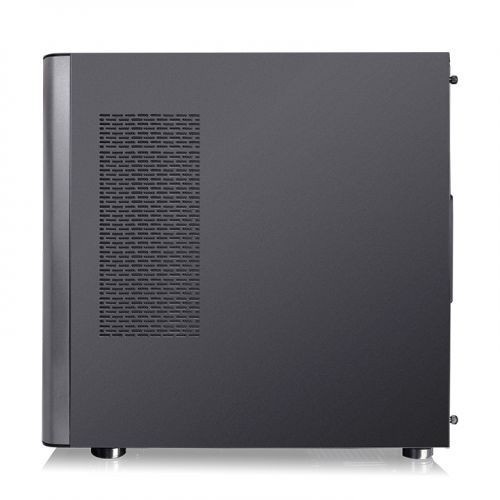

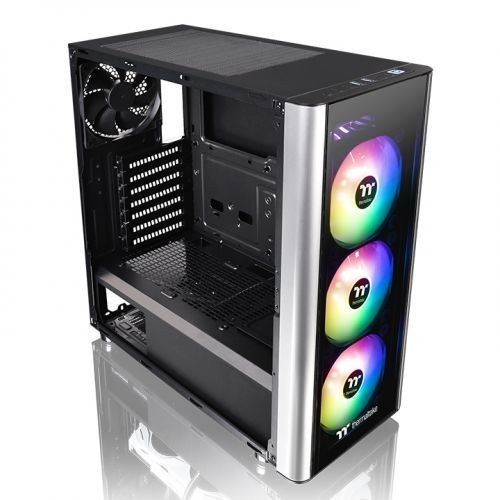

Gambar produk
