Casing PC Gaming Gamemax Mesh Box Pro Black ATX

Detail Casing PC Gaming Gamemax Mesh Box Pro Black ATX

MeshBox ATX Chassis, with featured duly fully mesh side panel, focusing on airflow, along with vertical airflow designed game case, which makes complex into simple, blends in the home
Vertical airflow channel, small size, high compatibility, basically suitable for installation of all mainstream accessories on the market
The bottom fan position blows directly to the graphics card to optimize cooling performance to maximum
The chassis is a modular design, optimizes wire management, and makes enough internal space.
Good vertical airflow design, cooling internal anywhere and anyplace.
Full area of dust-proof design, giving the computer a clean home
Support 240 water cooling and up to 168mm air-cooling CPU cooler
Support high-end popular graphics cards 305~355mm, unlimited games.

Chassis Type： ATX

Spesifikasi:
Form Factor : ATX Deskop Chassis
Chassis: SPCC 0.8/0.6mm
PSU Form Factor: ATX
M/B Form Factor: ATX,Micro-ATX, DTX,Mini-ITX
Front Panel: Metal Steel
Top Panel: ABS, Steel
Side Panel:
- Left Full Mesh Steel
- Right Full Mesh Steel

External Drive Bay(s):
- 5.25" (ODD): *0
- 3.5" : *0

Internal Drive Bay(s)
- 3.5" (HDD): 3.5" x 1
- 2.5" (SSD): SSDx 3 or SSD*4

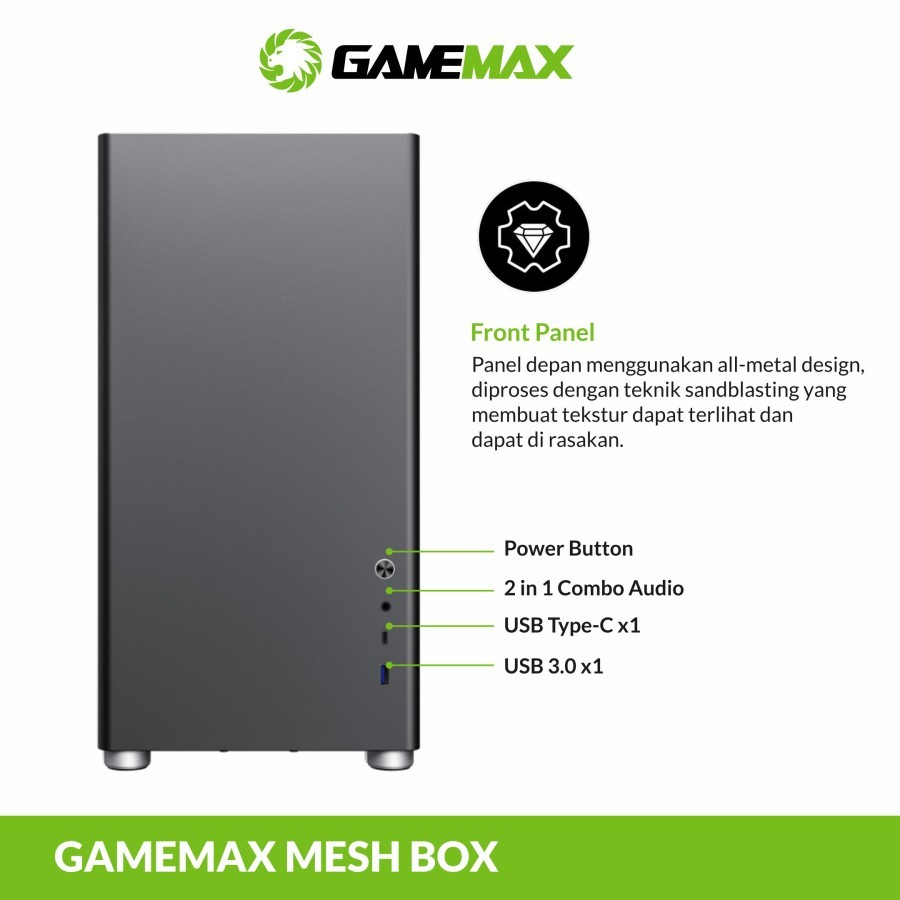

I/O:
- Buttons *1
- USB3.2 Port(s) *2 (TYPE A*1+TYPE C*1)
- Audio Combo Audio*1
- Card Reader (Support) *0

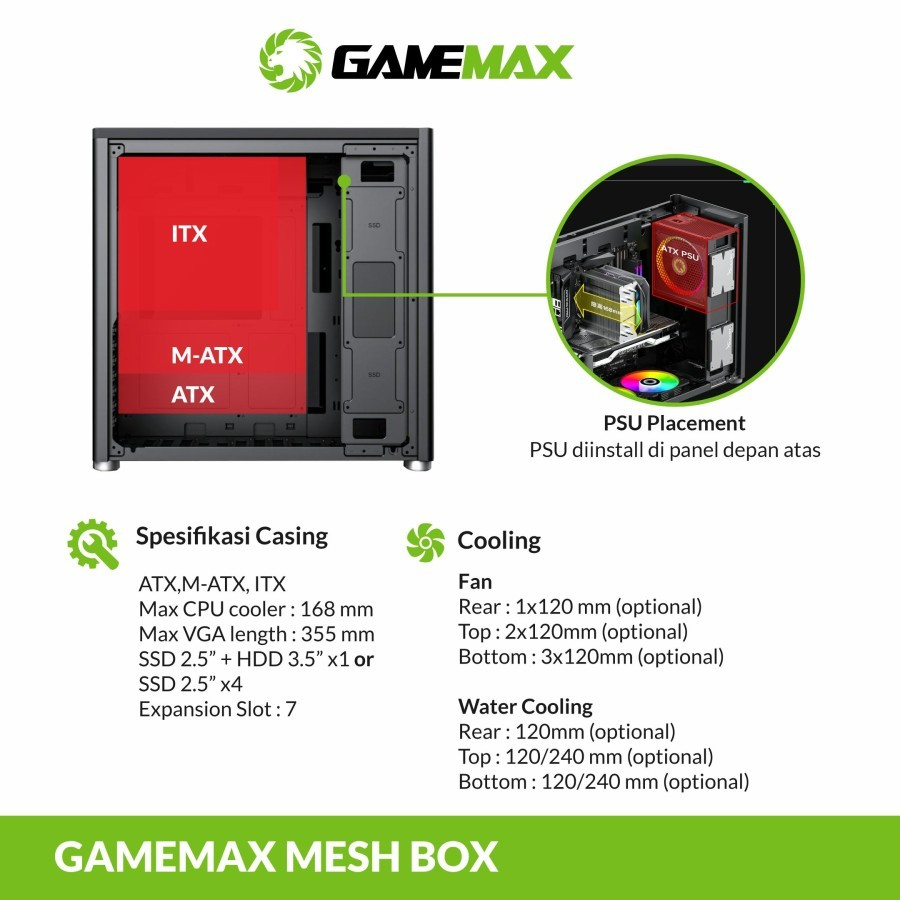

Cooling Fan Support
- Front *0
- Top 2x120 or 2x140mm (Fan optional)
- Rear 1x120mm (Fan optional)
- Left Side *0
- Bottom 3x120 or 2x140mm (Fan optional)

Water Cooling Support (Radiator Size):
- Front *0
- Top 240mm*1
- Bottom 240mm*1

Dust Cover: Bottom and Top with dust filter
Slots: *7
Carton & Logo: GameMax

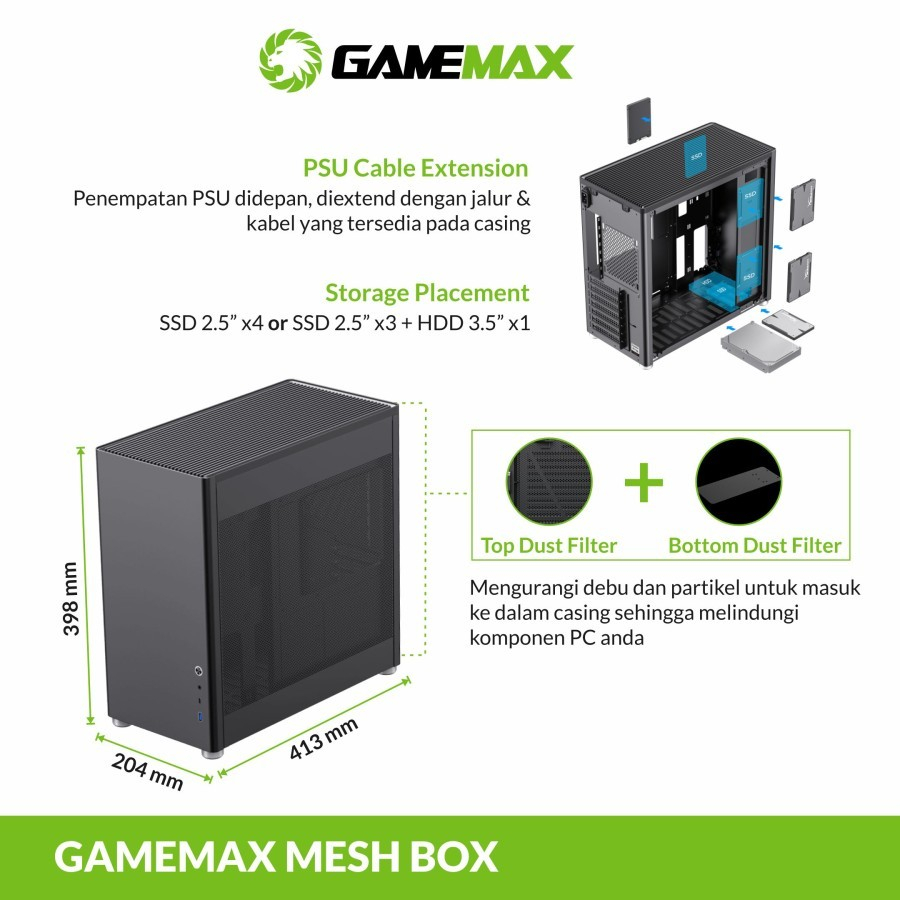

Dimensions Chassis: (L)401*(W)204*(H)386mm
Full Case (inc Fascia): (L)413*(W)204*(H)398mm
Carton: (L)470*(W)275*(H)463mm
VGA Card Length: 355mm
CPU Cooler Height: 168mm
Cable Management Depth: Max. 34mm

Gambar produk
