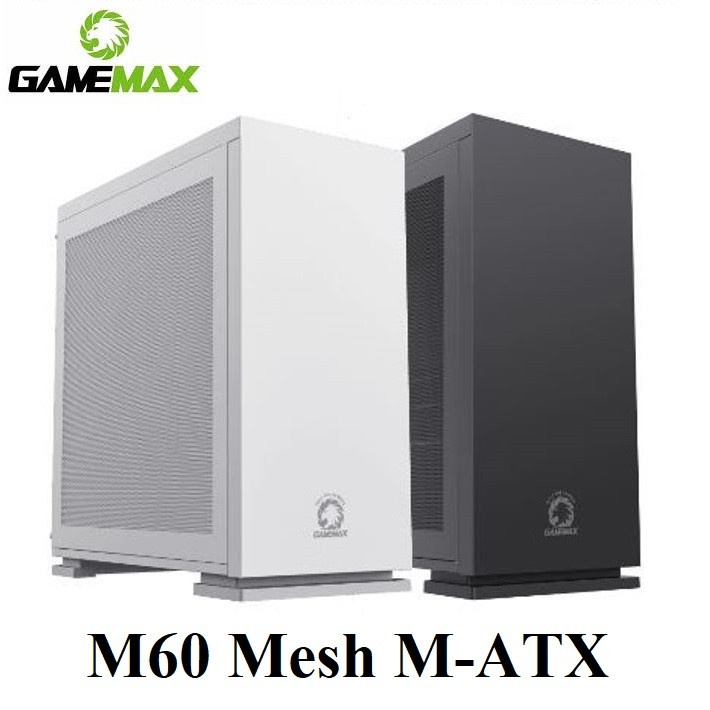

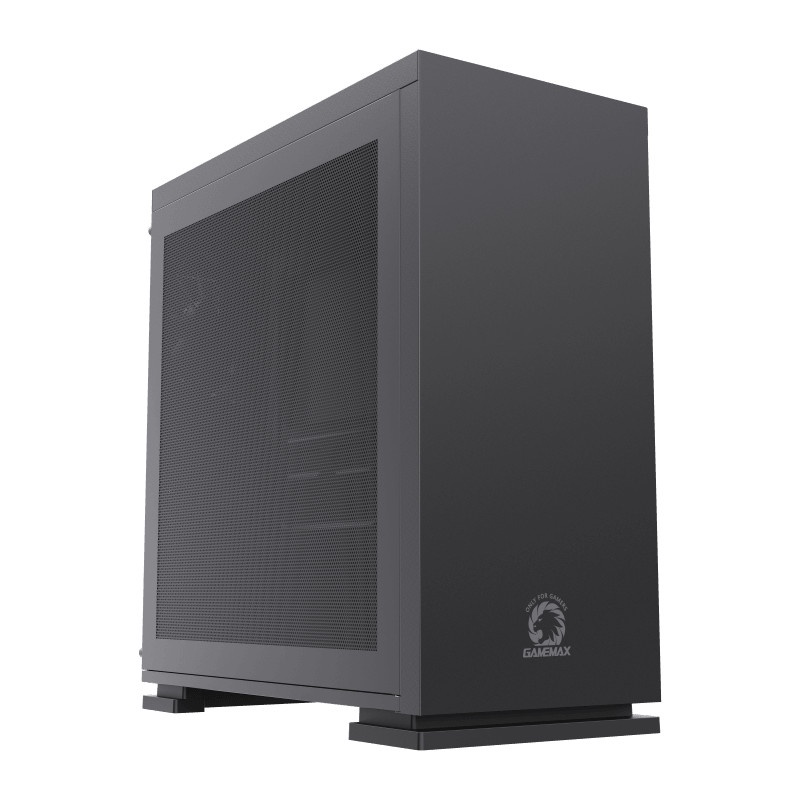

Casing PC Gamemax M60 M-ATX Dual Mesh Side Casing Komputer Micro ATX

Detail Casing PC Gamemax M60 M-ATX Dual Mesh Side Casing Komputer Micro ATX

Gamemax M60 M-ATX PC Case Dual Mesh Side Casing Komputer Micro ATX
Gamemax M60 M-ATX PC Case Dual Mesh Side Casing Komputer Micro ATX

GameMax M60, focus on airflow, dual full mesh side panel give PC in best thermal cooling solution and is a compact PC case with micro ATX motherboard for desktop gaming chassis, with a simple and stylish front and top panel design
The inside chassis has a richer space to install more components, complete with a full side window
Dual internal layout optimized for maximum airflow or advanced water-cooling.
Don't let the compact size fool you see, this little one handles full-size components while still offering roomy installation space.

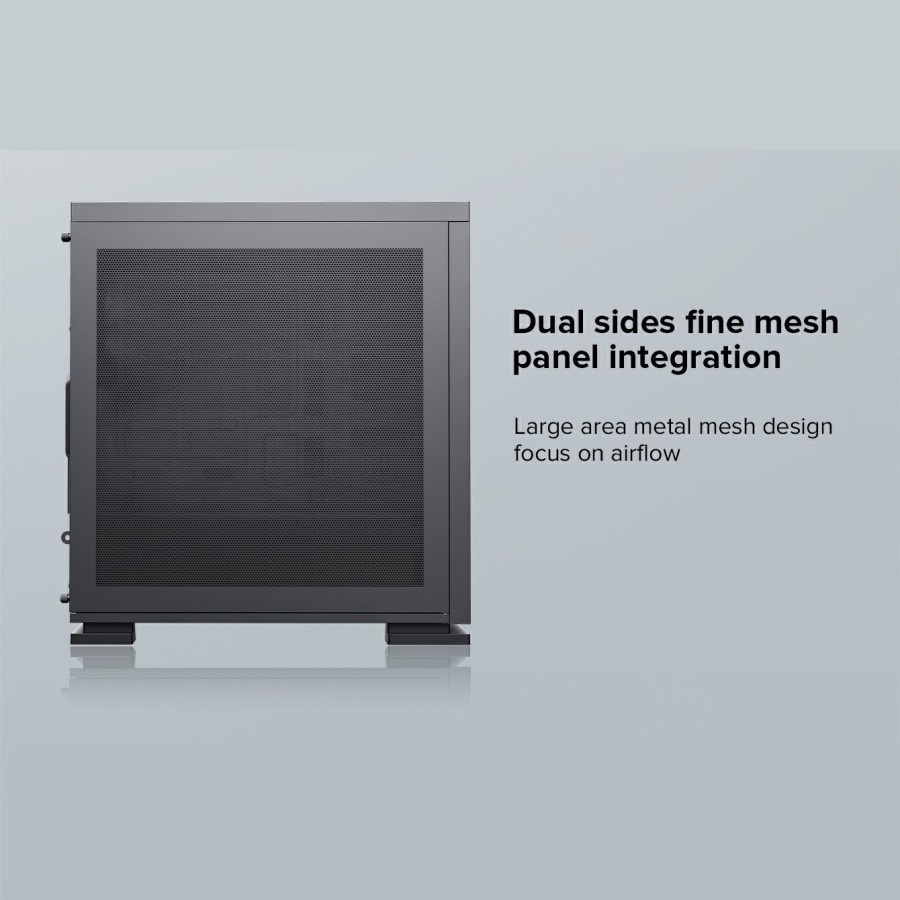

Dual Side fine mesh panel integration
Split structure design
Support cooling fan x3
Support M-ATX/ITX motherboard
Max VGA length 340mm
Max CPU cooler height 155mm

Perfect Airflow
Side panel born with fine mesh, each side with more than 14 thousands hole to optimize airflow, the airflow-optimized whole design underlines the performance orientated claim of M60.
Bottom PSU position with special cooling hole, to strengthen the heat dissipation.
High Quality DIY Case: from design to material selection, every detail is carefully selected.

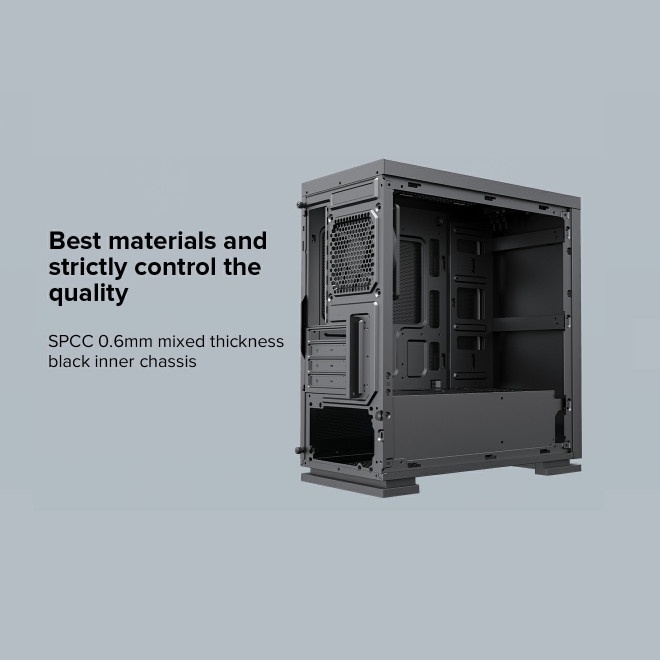

SPCC 0.6mm mixed thickness inner chassis.
Integrated structure of panel and top cover: Simplify the complex, return to the original, the panel matrix hollow elements, not only increase the beauty, but also ventilate and dissipate heat.

Specifications:
Model: M60
Chassis Type: Micro ATX
Front Panel: SECC metal panel by painted
Tranparent Side Panel: Full mesh side panels
Top Panel: Top air vent with magnetic filter
Chassis: 0.6mm mixed, Black painting interior
Front USB Ports: USB2.0 x2, USB3.0 x1, Front Audio: HD Audio
PSU type ATX
Tool Free Kits: Yes
Reserved Fan Ports: Rear: 1x 120mm black Fan(Included), Top: 2x120mm Fan (Optional)
Drive Bay 3.5" hidden: 2
Drive Bay 2.5" SSD: 2
PCI Expansion Slots: 4
M/B Form Factor : Micro ATX
Max.VGA Card (Length): 340 mm
Max.CPU Cooler (Height): 155mm
Chassis Size: 350*188*380mm
