Casing Komputer Cooler Master MasterBox CM694 Tempered Glass

Detail Casing Komputer Cooler Master MasterBox CM694 Tempered Glass

Casing Komputer Cooler Master MasterBox CM694 Tempered Glass
Model Number MCB-CM694-KN5N-S00 (Steel), MCB-CM694-KG5N-S00 (TG)
Series MasterBox Series
Size Mid Tower
Color(s) Black
Materials Steel, Plastic, Tempered Glass, Mesh
Dimensions (L x W x H) Steel: 493mm x 220mm x 506mm (incl. Protrusions), Steel: 482mm x 220mm x 477mm (excl. Protrusions), TG: 493mm x 224mm x 506mm (incl. Protrusions), TG: 482mm x 224mm x 477mm (excl. Protrusions)
Motherboard Support Mini ITX, Micro ATX, ATX, E-ATX
Expansion Slots 7
5.25" Drive Bays 2
2.5" / 3.5" Drive Bays (Combo) 6 (3x drive cages)
2.5" Drive Bays 8 (2 + 6 combo)
I/O Panel 2x USB 3.0 Type A, 1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - Front 2x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector)
Pre-installed Fans - Rear 1x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector)
Fan Support - Front 3x 120mm / 2x 140mm (wo/ODD), 2x 120mm / 2x 140mm (w/ODD)
Fan Support - Top 3x 120mm, 2x 140mm
Fan Support - Rear 1x 120mm
Radiator Support - Front 120mm*, 140mm*, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage)
Radiator Support - Top 120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility)
Radiator Support - Rear 120mm
Clearance - CPU Cooler 171mm
Clearance - GFX 410mm/16.1", 350mm (with stabilizer), 280mm (with stabilizer + drive cage)
Clearance - PSU 276mm, 160mm (drive cage rear position)
Power Supply Support Bottom Mount, ATX PS2
Dust Filters Top, Front, Bottom
Cable Routing 27-29mm

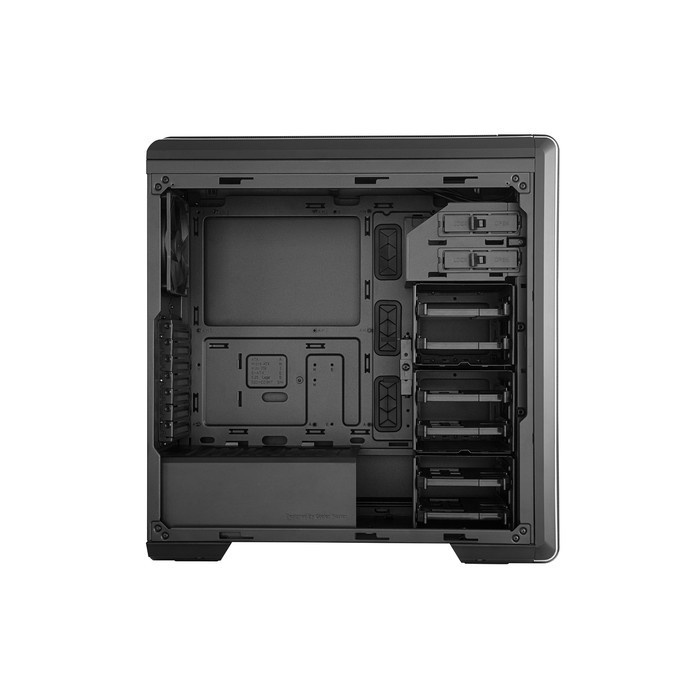

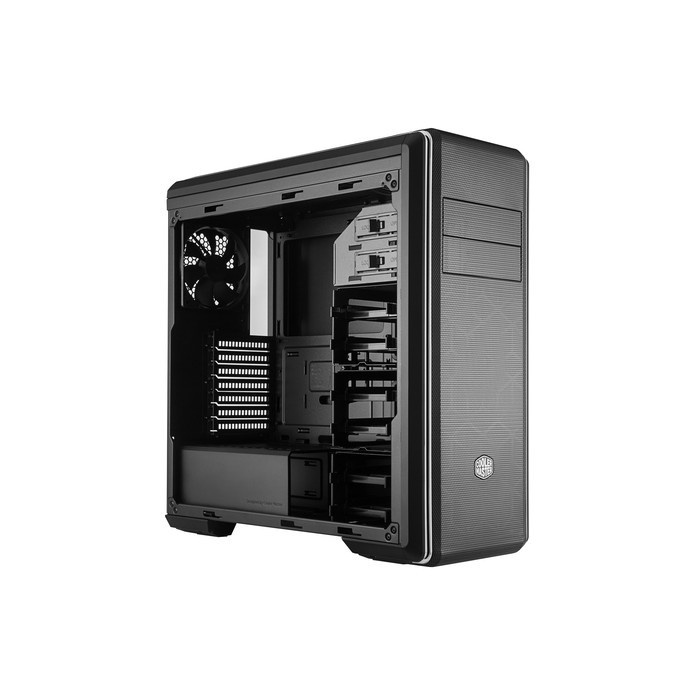

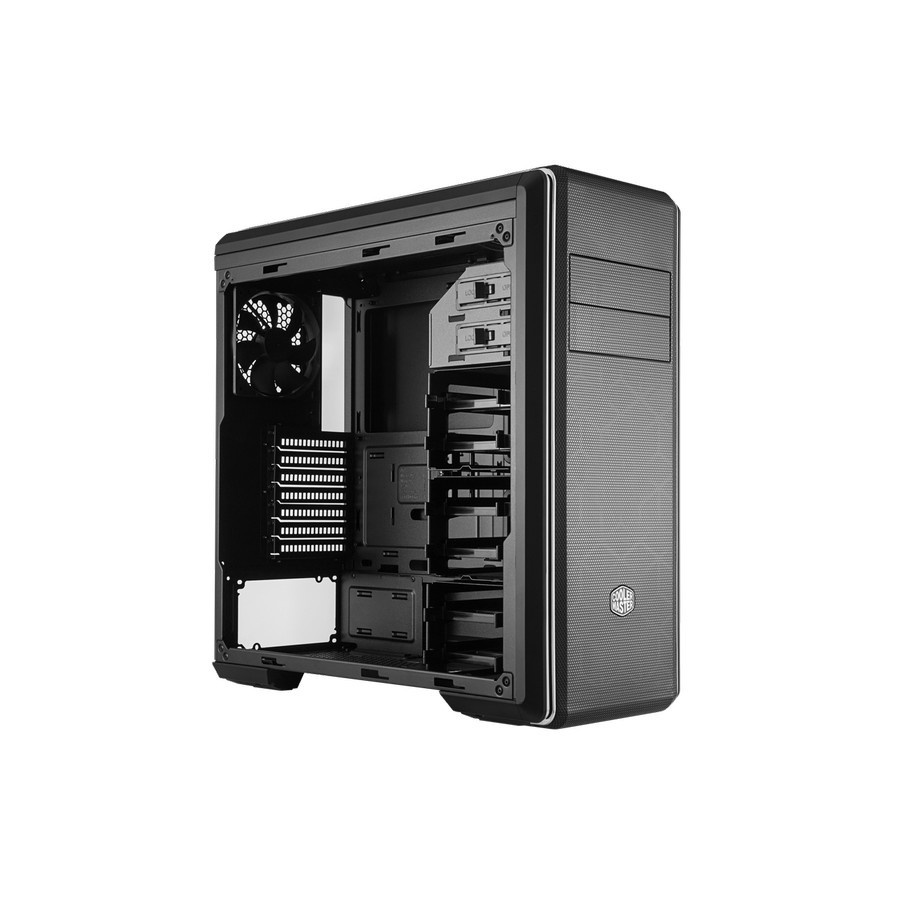

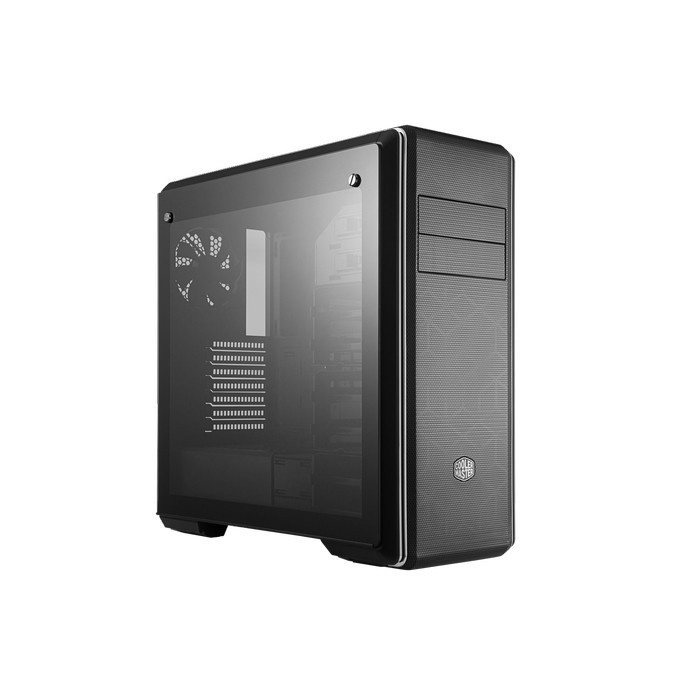

Gambar produk
