Casing GameMax Quest Mid Tower E-ATX Gaming PC Case

Detail Casing GameMax Quest Mid Tower E-ATX Gaming PC Case

INFO KOMPLAIN:
Harap melampirkan video unboxing untuk syarat
klaim garansi atau penukaran barang :)

* Airflow – 1x fans comes standard with the Quest and the chassis can mount another EIGHT fans (front, top, PSU cover) to help create the perfect balance of air running in and out of your system. Air vents run down either side of the front panel help to aid airflow.
* Support Top 360mm Radiator: For enthusiast-grade cooling, 2,360-millimeter radiators are supported on the top and front panel to keep the most extreme systems cool.

Chassis Type： E-ATX

Spesifikasi:
Model: Quest
Form Factor (Midi, Micro, Mini ITX, Full): TOWER
Chassis: SPCC :0.6mm
PSU Form Factor: Bottom/ATX

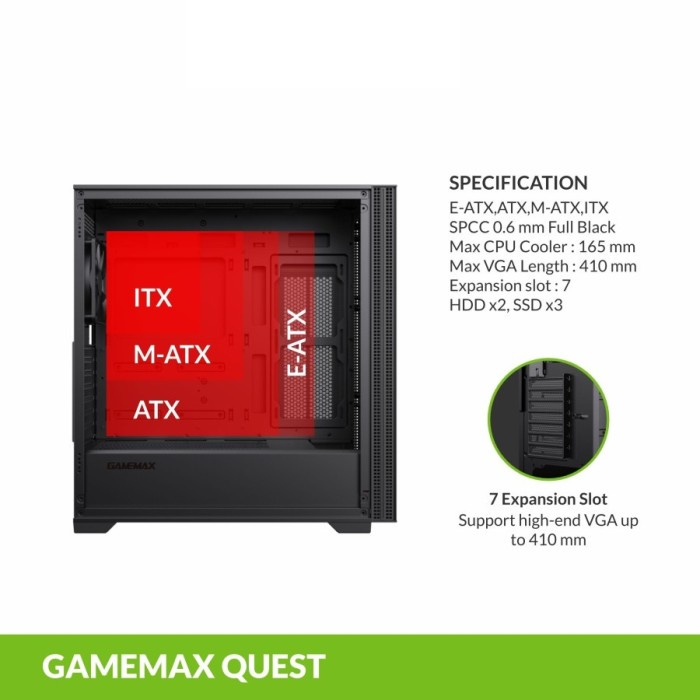

M/B Form Factor: E-ATX、ATX、M-ATX、ITX
Front Panel: Metal cover
Top Panel: Metal cover
Side Panel: Left Tempered Glass
Right: metal cover

Internal Drive Bay(s)
- 3.5" (HDD) *2
- 2.5" (SSD) *3
- 1*3.5HDD+3*2.5SSD or 2*3.5HDD+2*2.5SSD

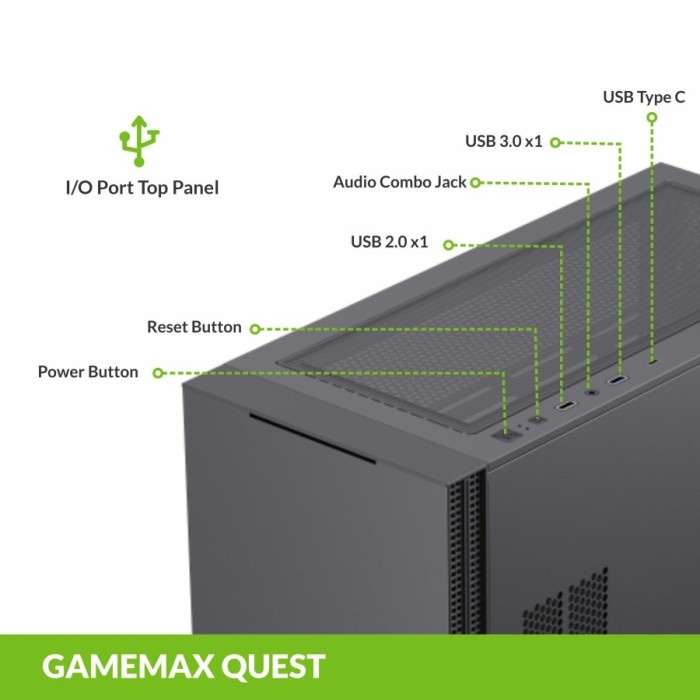

I/O
- Buttons *2
- USB2.0 Port(s) *1
- USB3.1 Port(s) *1
- USB3.2 Port(s) *1 Type-C Gen2 Type-E
- Audio Support *1 (COMBO AUDIO)
- RGB Controller *0

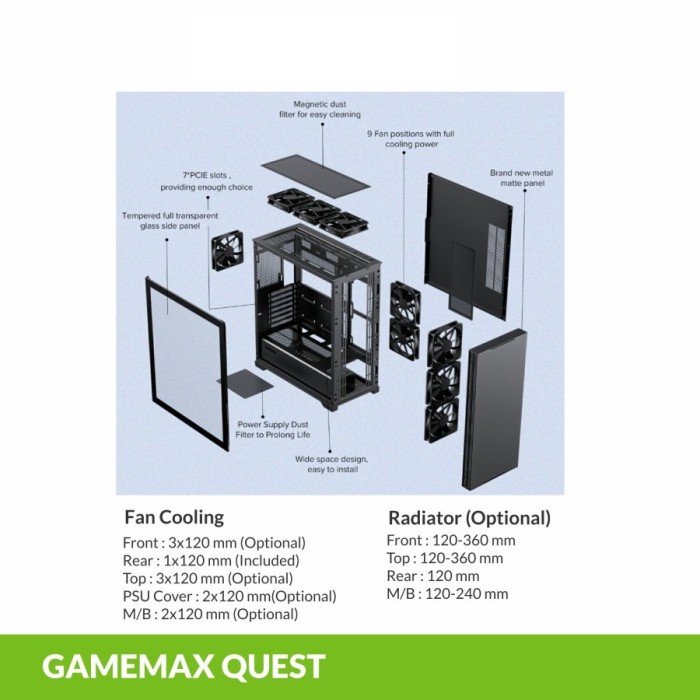

Cooling Fan Support
- Front 3x120mm,3x140mm(Fan optional)
- Top 3x120mm ,2x140mm (Fan optional)
- Rear 1x120mm (Black Fan Incl.)
- M/B Cover 2x120mm (Fan optional)
- PSU Cover 2x120mm (Fan optional)

Water Cooling Support (Radiator Size)
- Front 120mm, 140mm,240mm,280mm,360mm
- Top 120mm, 140mm,240mm,280mm,360mm
- Rear 120mm
- M/B Cover 120mm, 240mm

Dust Cover: Bottom, right side panel and top cover with dust filter
Slots: *7

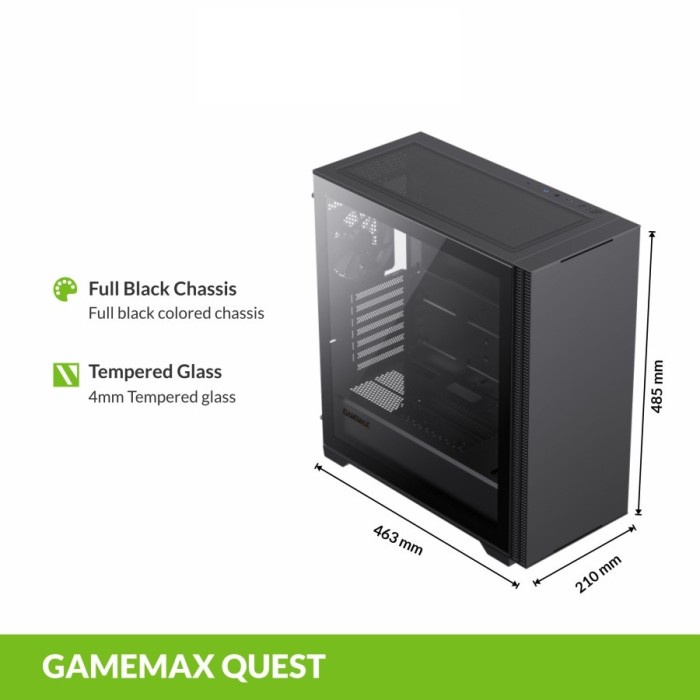

Dimensions
- Chassis (L)415*(W)210*(H)470mm
- Full Case (inc Fascia) (L)463*(W)210*(H)485mm

VGA Card Length Up to 410mm(front cover w/o fan)
CPU Cooler Height 165mm
SPS Length Up to 265mm(front cover w/o Water Cooling)
Cable Management Depth 25mm

Gambar produk
